Service Specifications

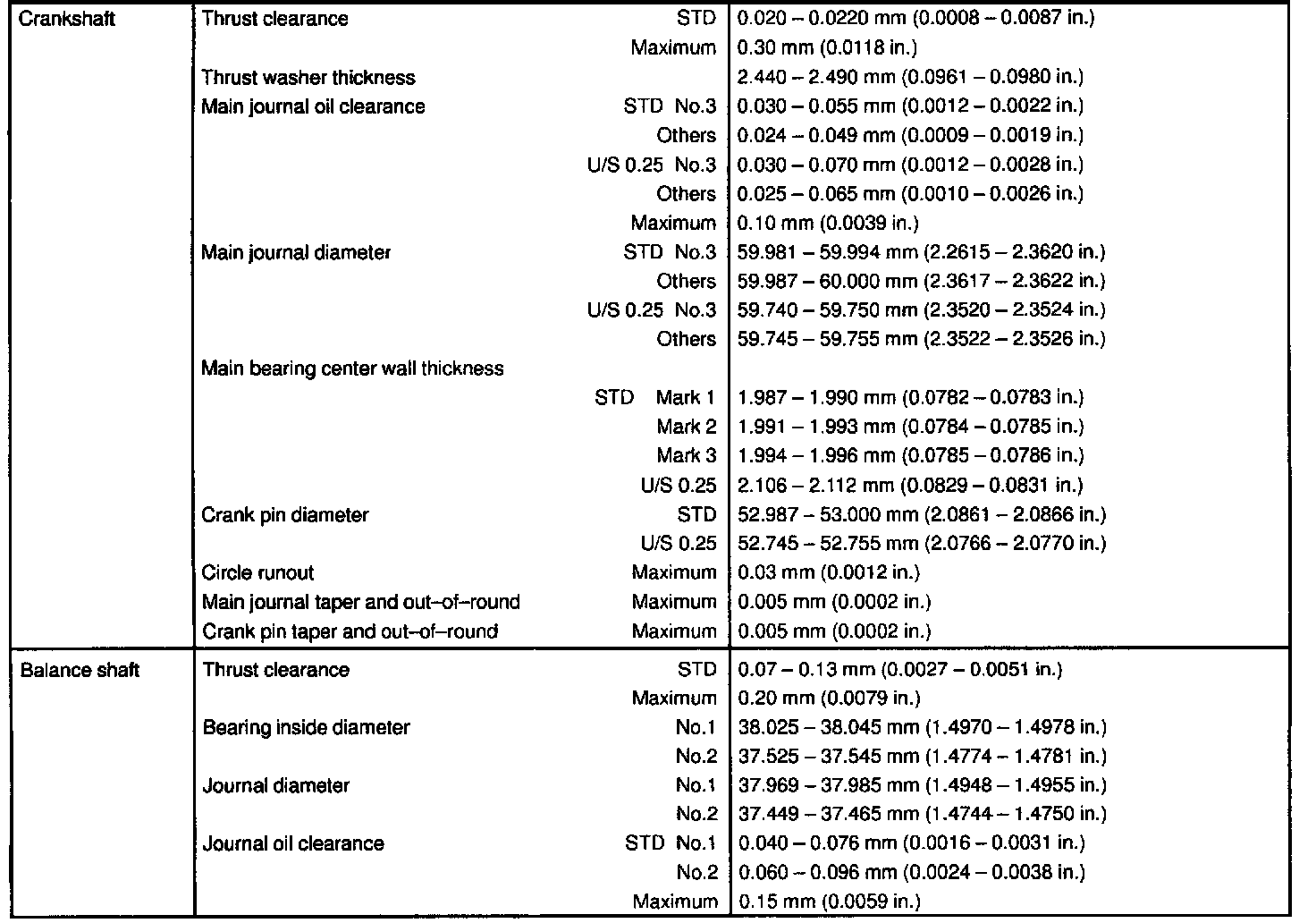

3RZ-FE Engine Mechanical Data:

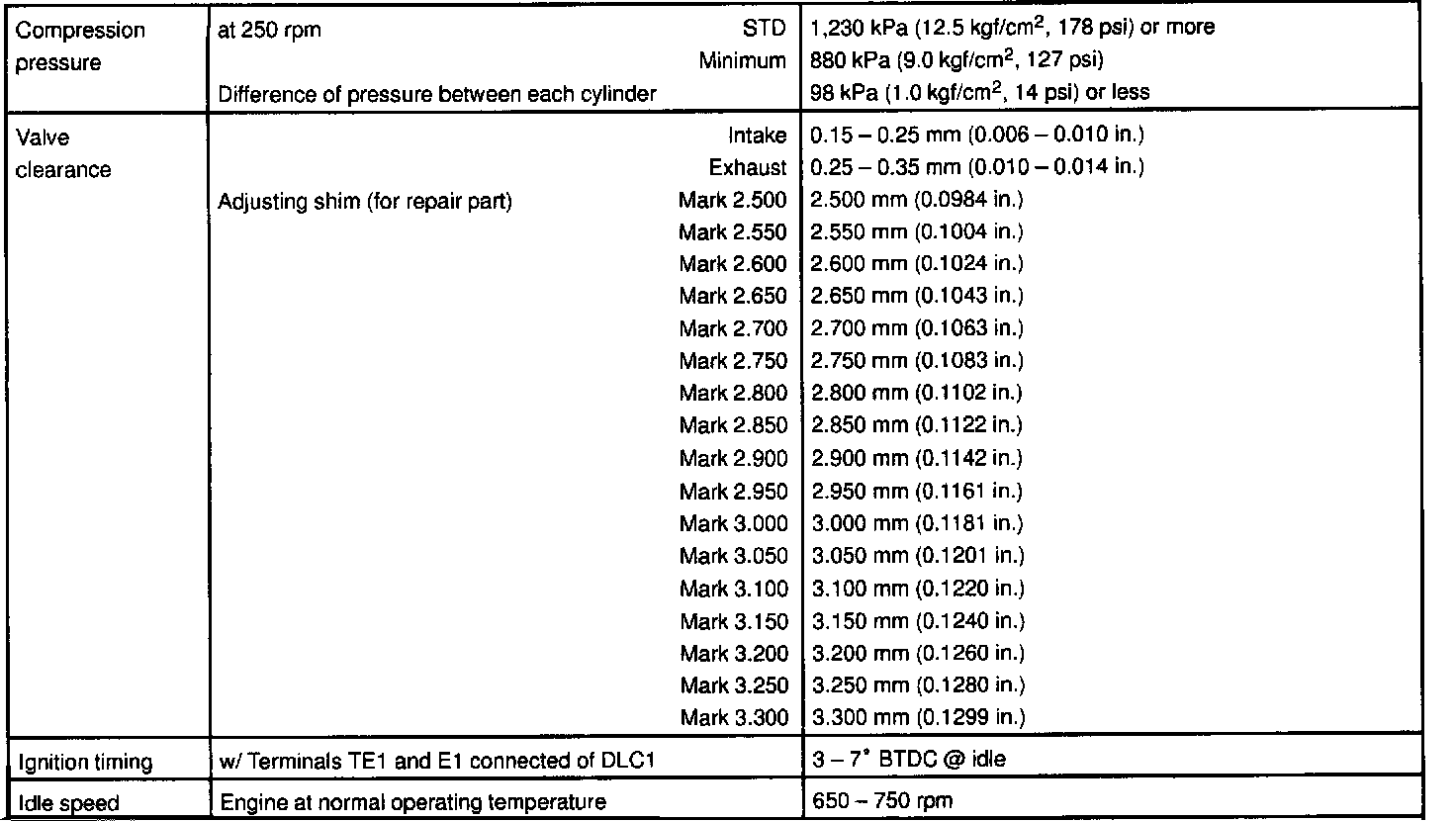

3RZ-FE Engine Mechanical Cont.:

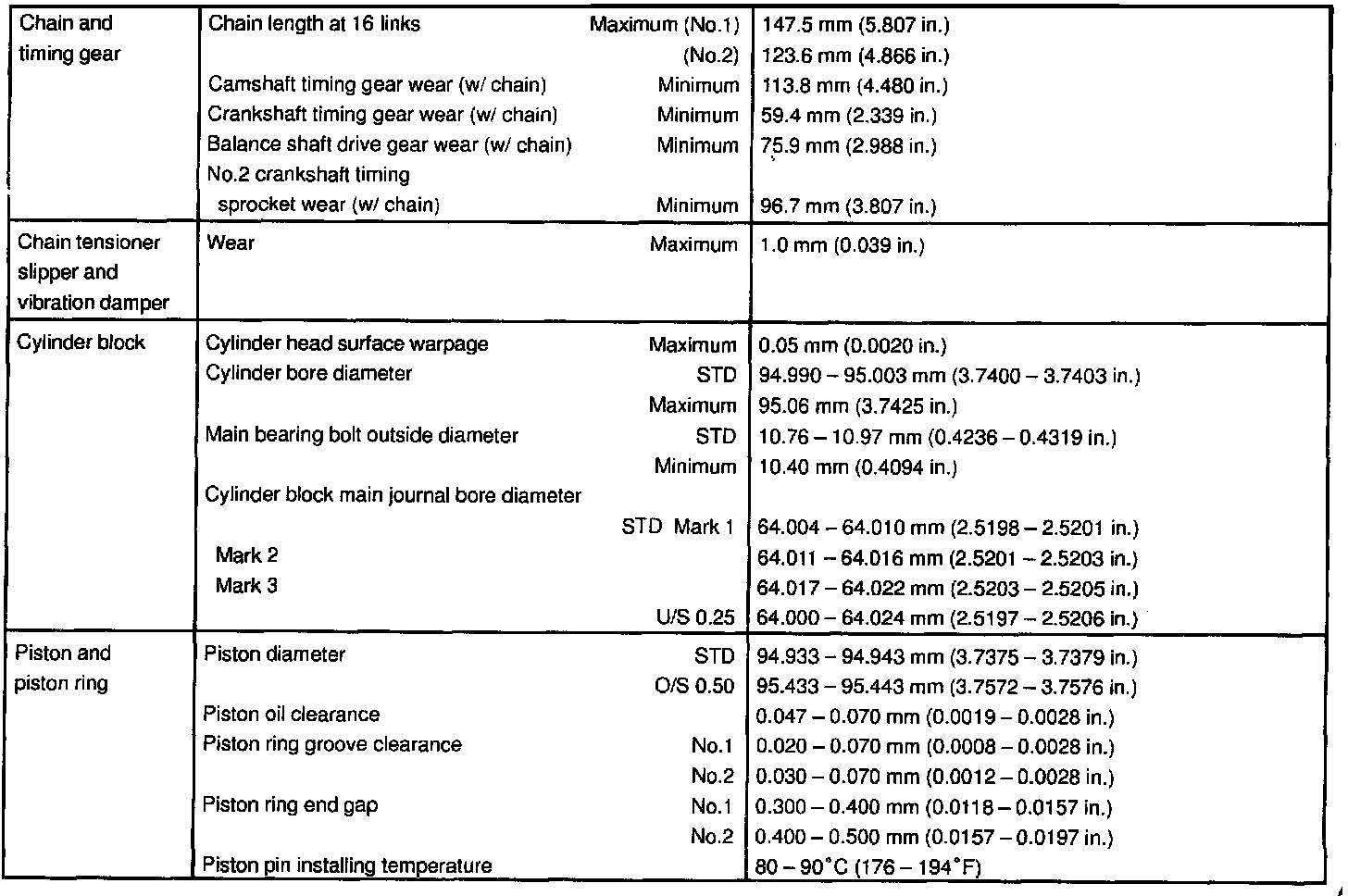

3RZ-FE Engine Mechanical Cont.:

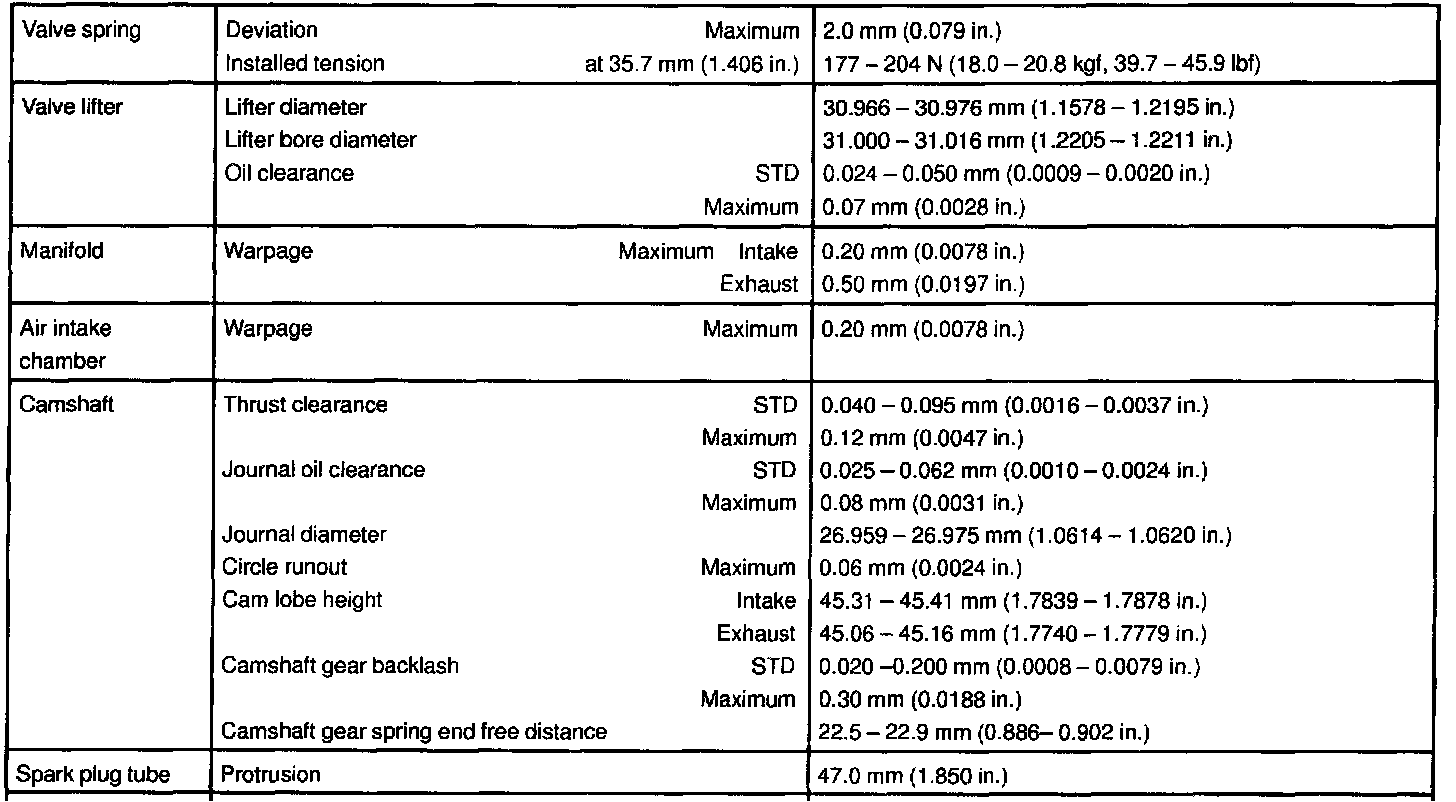

3RZ-FE Engine Mechanical Cont.:

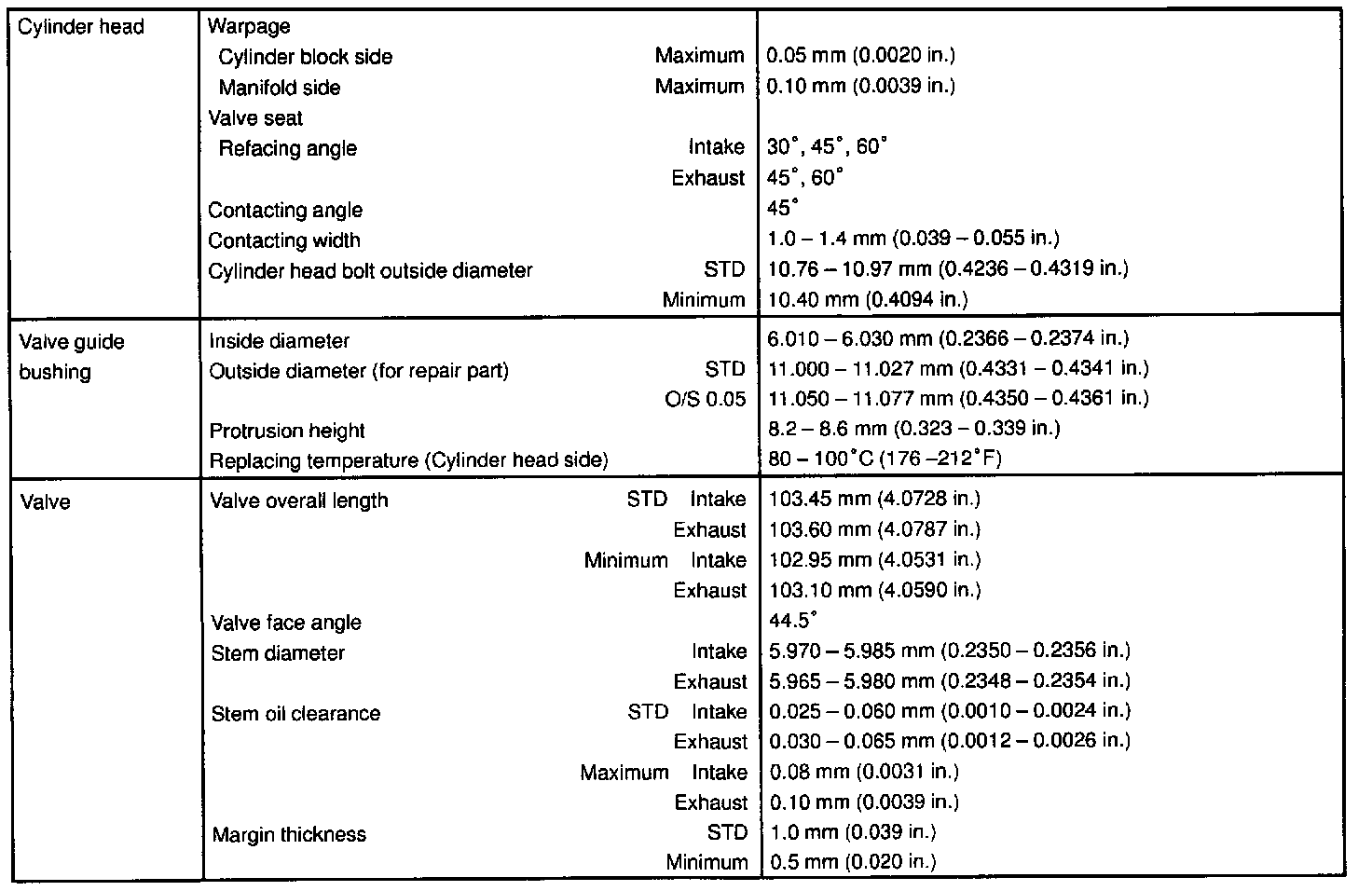

3RZ-FE Engine Mechanical Cont.:




3RZ-FE Engine Mechanical Cont.:
