Back Door Power Window Control System

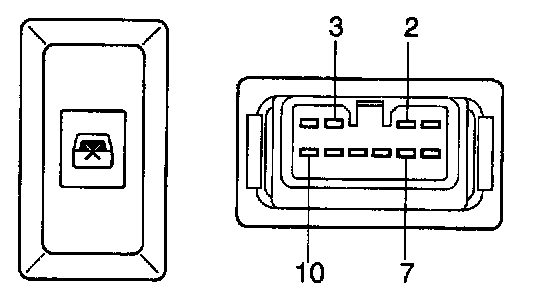

INSPECT BACK DOOR POWER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

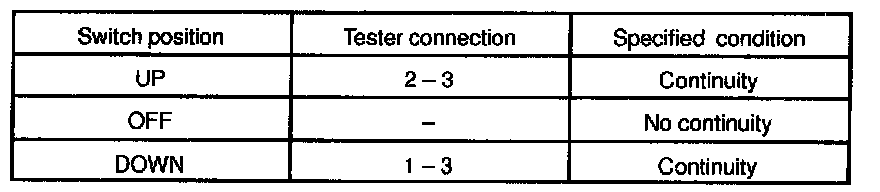

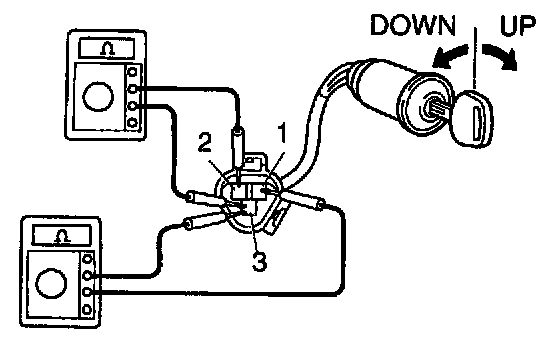

INSPECT BACK DOOR CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







GW/O Power window:

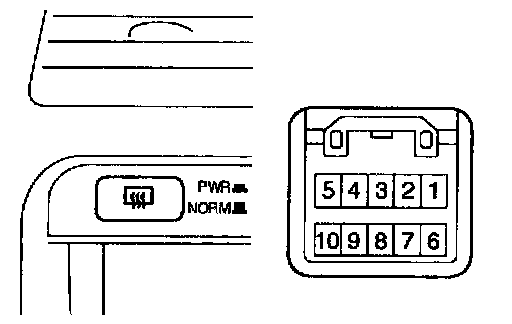

INSPECT BACK DOOR WINDOW LOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

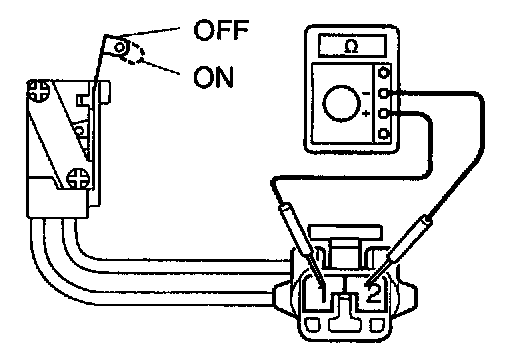

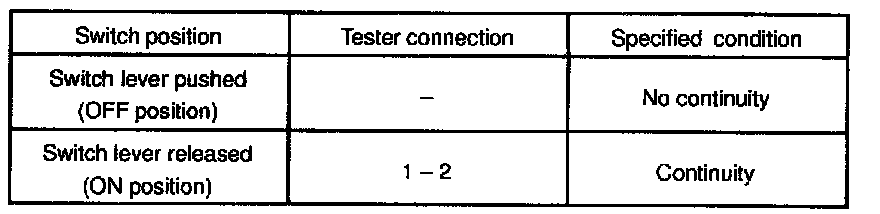

INSPECT WINDOW LIMIT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
