Without Scan Tool

DTC CLEARANCE

Clear the DTC.

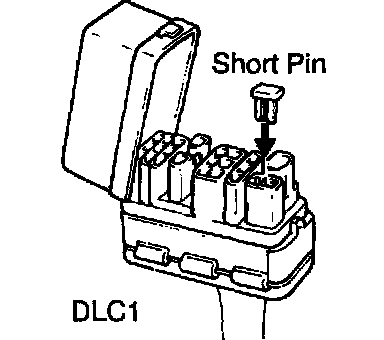

1. Using SST, connect terminals Tc and E1 of DLC1 and remove the short pin from DLC1.
SST 09843-18020
2. IG switch ON.






3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC1.
SST 09843-18020






6. Connect the short pin to DLC1.
