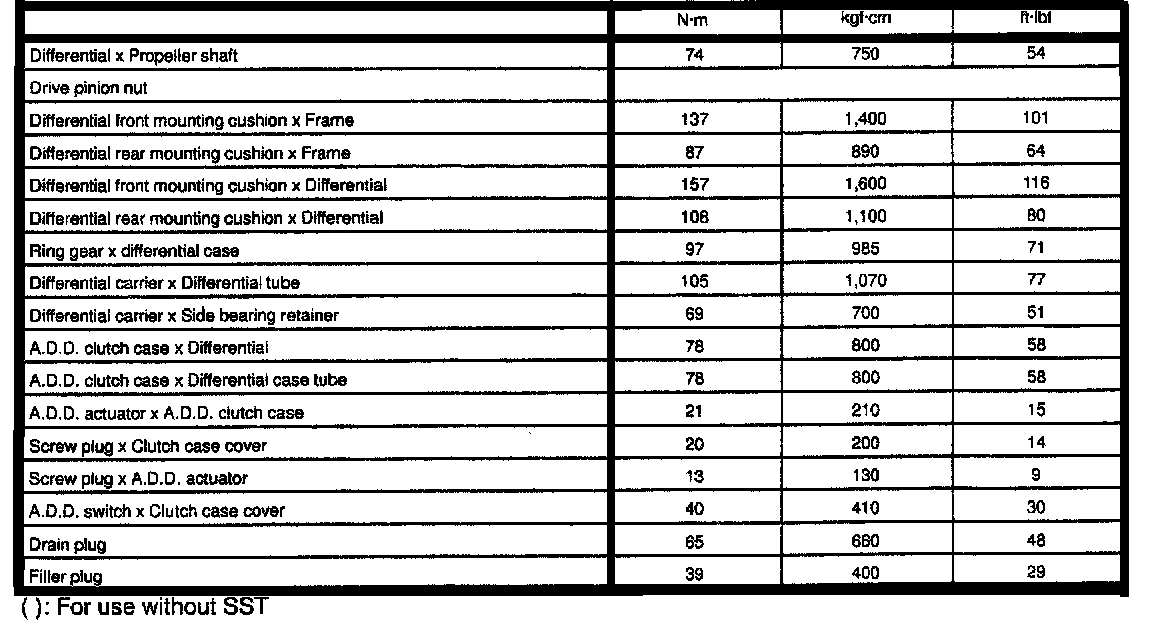

D/F Torque Data
D/F Torque Data
Front Differential, Carrier Torque:
Rear Differential, Carrier Torque:
