Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSORS
a. Disconnect the camshaft position sensor connector.




b. Inspect the camshaft position sensor resistance.

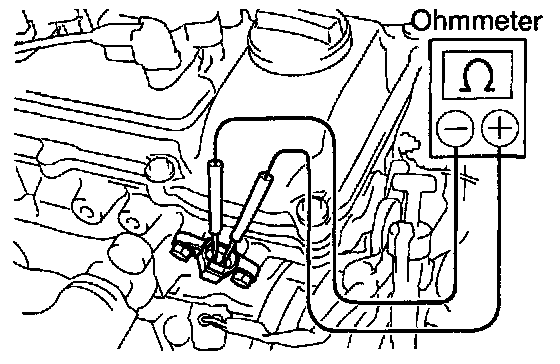

Using an ohmmeter, measure the resistance between terminals.

Resistance:

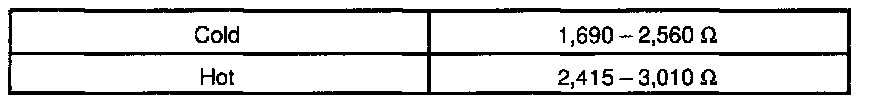

DENSO Made Resistance Specifications:

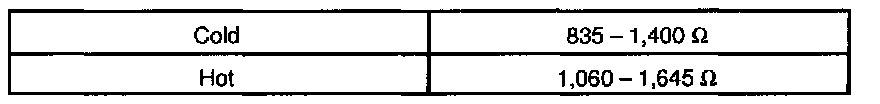

Wabash Made Resistance Specifications:

If the resistance is not as specified, replace the camshaft position sensor.

c. Reconnect the camshaft position sensor connector.
