Ignition System: Testing and Inspection

ON-VEHICLE INSPECTION

NOTE: "Cold" and "Hot" in these sentences express the temperature of the coils themselves. "Cold" is from -10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).

INSPECT IGNITER AND SPARK TEST

Check that the spark occurs.
1. Remove the ignition coils.
2. Remove the spark plugs.
3. Install the spark plug to the ignition coil, and connect the ignition coil connector.
4. Ground the spark plug.
5. Check if spark occurs while engine is being cranked.

NOTE: To prevent gasoline from being injected from injectors during this test, crank the engine for no more than 5 - 10 seconds at time.

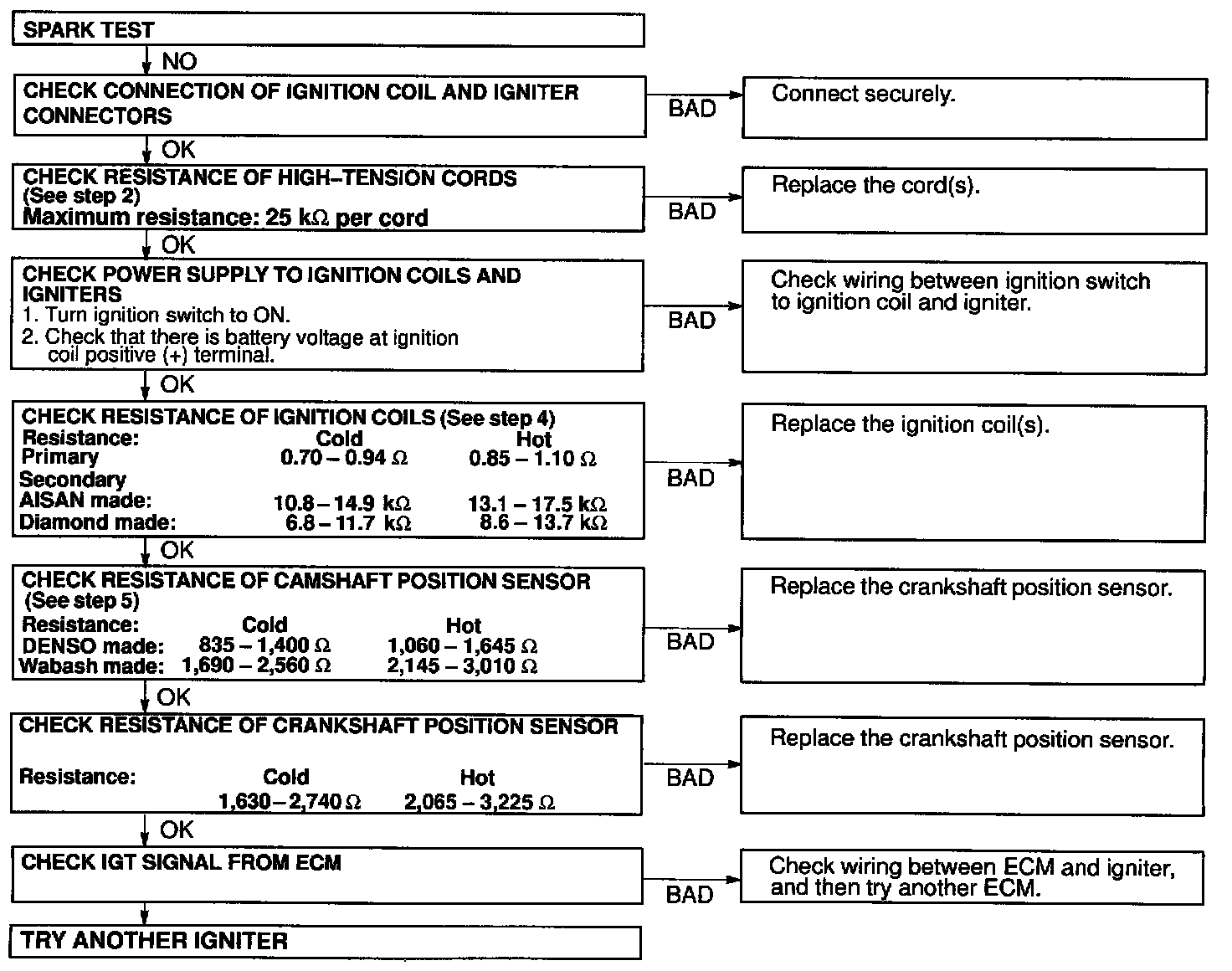

If the spark does not occur, do the test as shown.
