Speed Sensor Signal

SPEED SENSOR SIGNAL
Using TOYOTA hand-held tester, check the DTC.

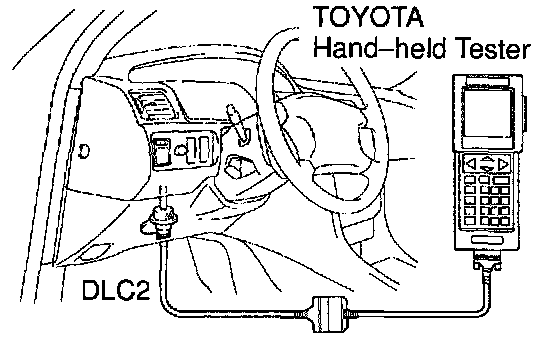

1. Hook up the TOYOTA hand-held tester to the DLC2.
2. Read the DTC by following the prompts on the tester screen Please See the TOYOTA hand-held tester operator's manual for further details.

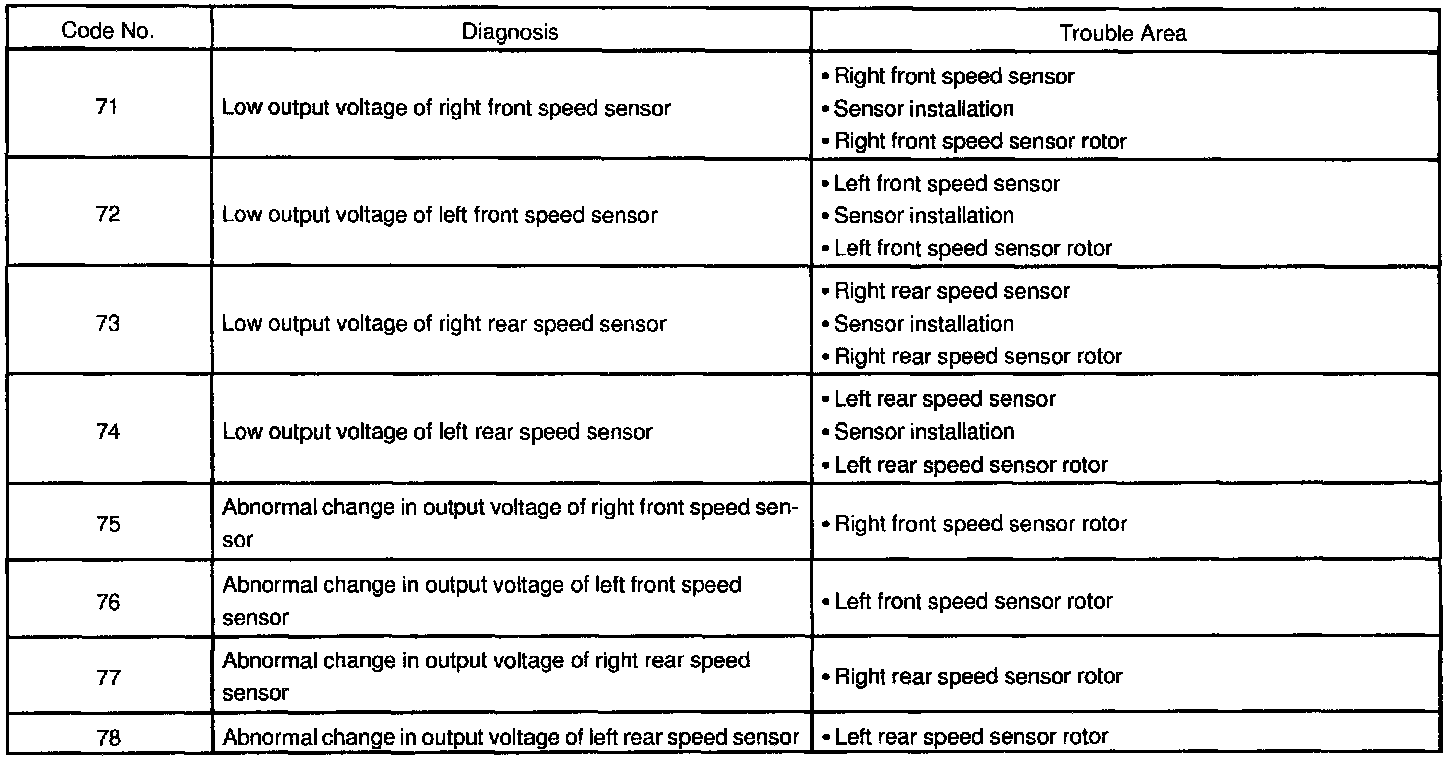

DTC of speed sensor check function:
