Theft Deterrent System

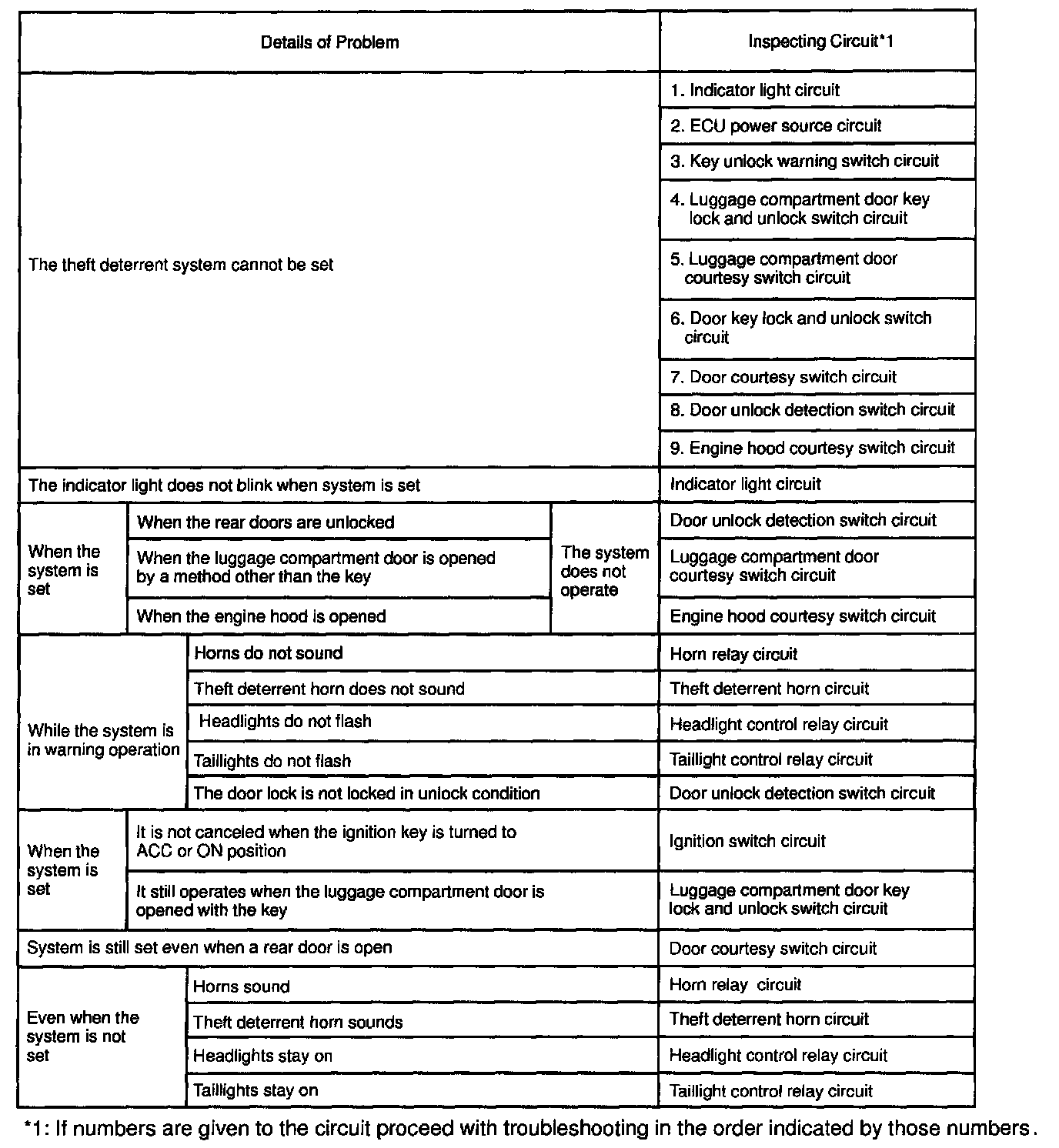

PROBLEM SYMPTOMS TABLE
Proceed to the matrix chart for each malfunction symptom and troubleshoot for each circuit.

HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the theft deterrent system, First make certain that the door lock control system is operating normally.
