Lights - Headlight Alignment Modified

BODY
BO007-99

April 16, 1999

Title:
TMMK CAMRY / SIENNA HEADLIGHT ALIGNMENT

Models:
97 - 99 Camry, 98 - 99 Sienna

Introduction:
To enhance headlamp performance on dark roads, the headlamp alignment process has been modified.

Vehicles Affected:
1997-1999 TMMK Camrys produced before the following VINs:

Camry (4-Cyl) 4T1BG2 * K * XU453367
Camry (V-6) 4T1BF2 * K * XU079094
Camry (4-Cyl) 4T1BG2 * K * XU877828
Camry (V-6) 4T1BF2 * K * XU930732

1998-1999 Siennas produced before the following VIN:

Sienna 4T3ZF13C * XU119213

Required Tools and Material:

Headlight Aiming Device.





Repair Procedure:

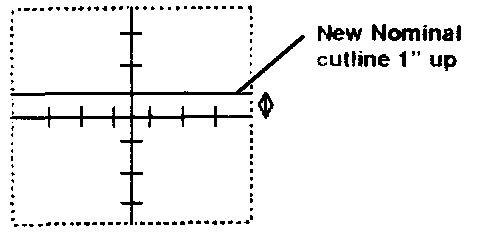

Refer to the 98 Camry Repair Manual. Adjust the headlight nominal line 1" higher. State and Federal standards apply.

NOTE:
Vehicle lighting will remain within the tolerances of all applicable federal and state regulations.





Warranty Information
