Sliding Roof (TMMK Made)

ON-VEHICLE INSPECTION

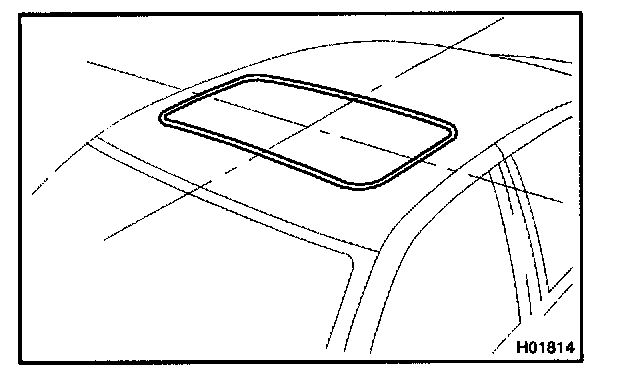

INSPECT SLIDING ROOF GLASS ALIGNMENT




a. Start the engine and check the operation time of the sliding roof.

Operation time: Approximately 6 seconds.

b. Check for abnormal noise or binding during operation.
c. Check for water leakage with the sliding roof fully closed.

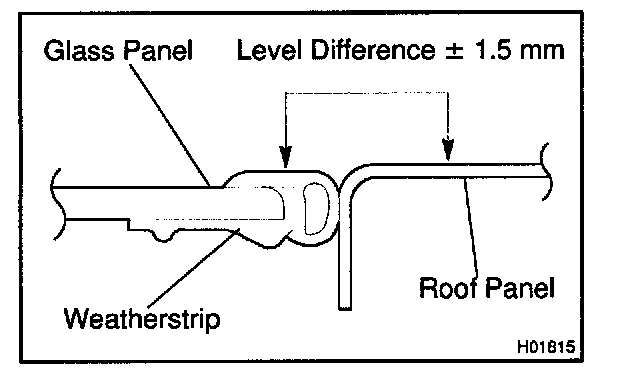

d. Check the alignment between the sliding roof weatherstrip and the roof panel.

All sides: 0 ± 1.5 mm (0 ± 0.059 in.)

HINT: At the time of installation, please refer to the following item. To align the glass to the roof surface, loosen the 4 screws, then adjust and retighten.

If the sliding roof does not operate:

e. Remove the map light assembly.

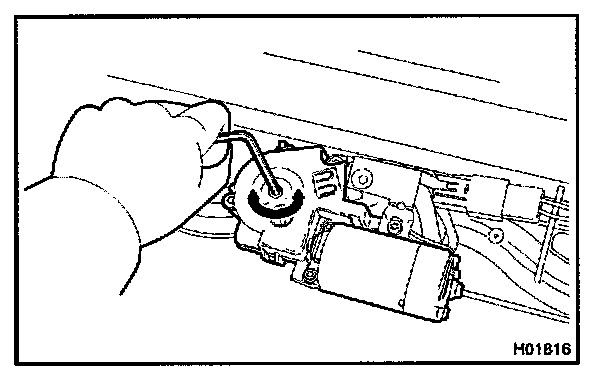

f. Manually operate the sliding roof by inserting a hex wrench into the motor to turn the drive shaft.
