Diagnosis Circuit
Diagnosis CircuitCIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that outputs DTC.

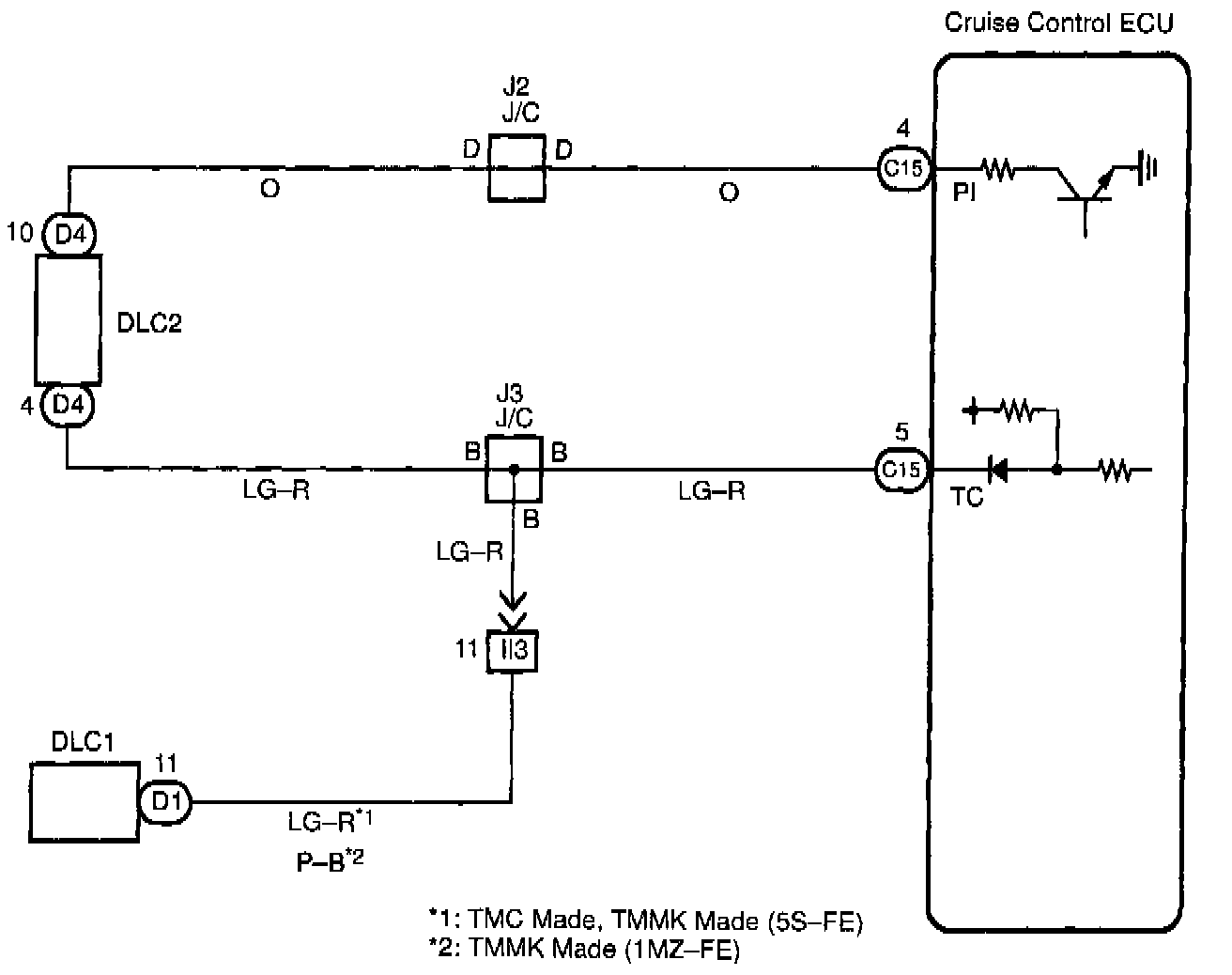

WIRING DIAGRAM

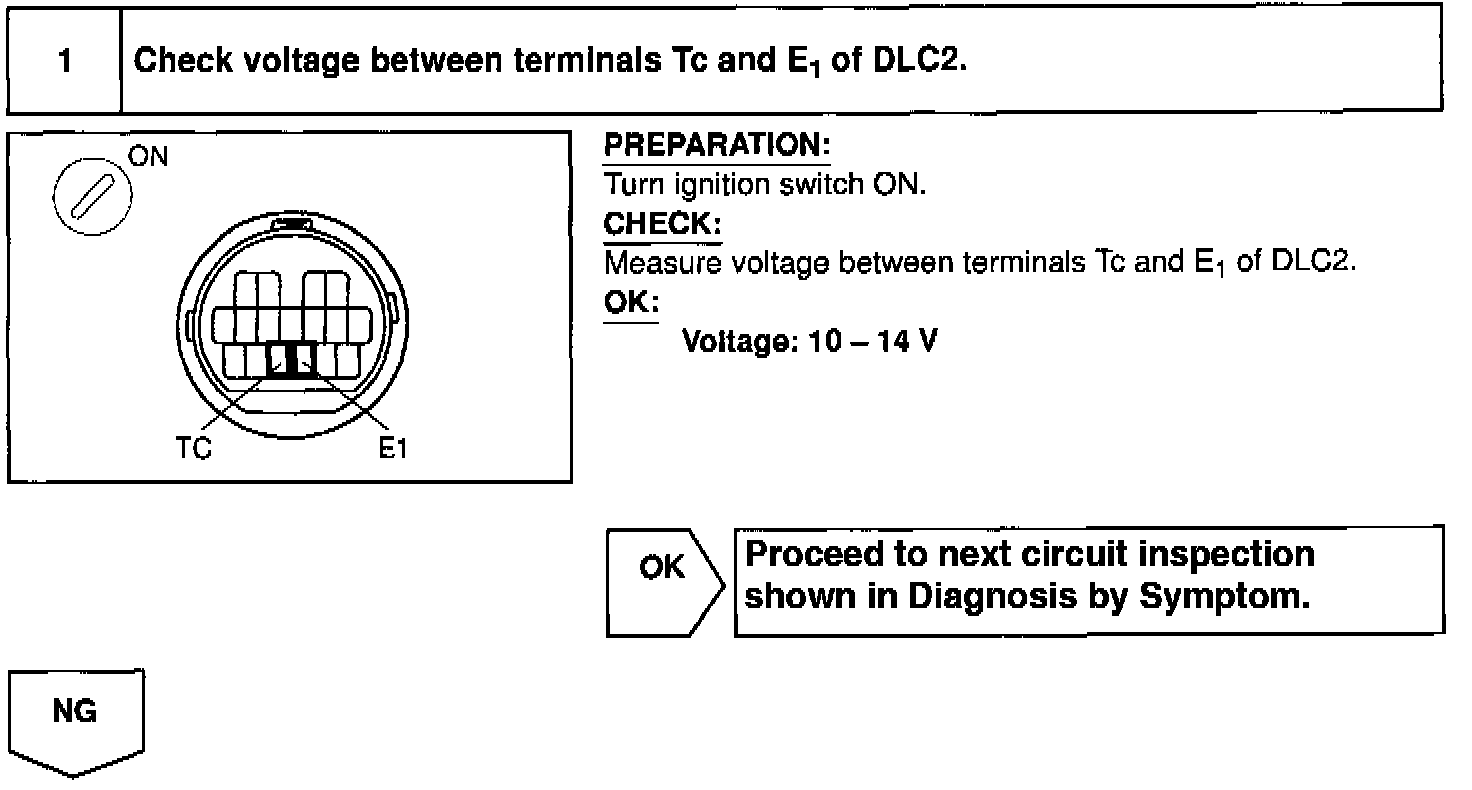

Step 1:

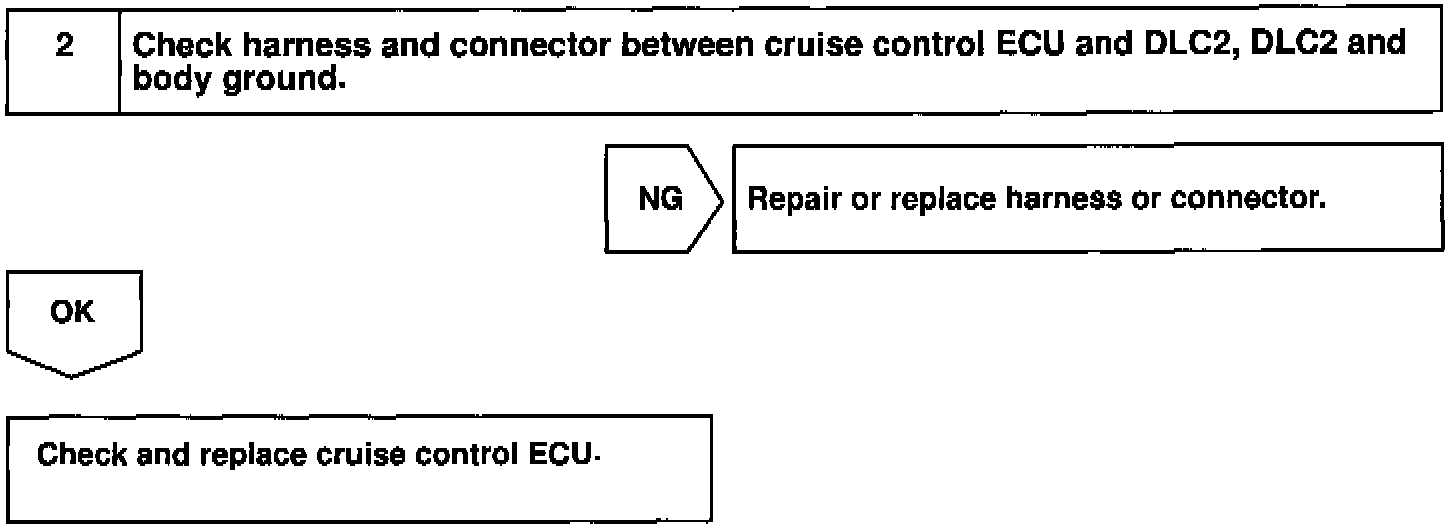

Step 2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that outputs DTC.
WIRING DIAGRAM
INSPECTION PROCEDURE
