Home >> Toyota >> 1999 >> Camry XLE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse Block >> Instrument Panel Junction Block Inner Circuit

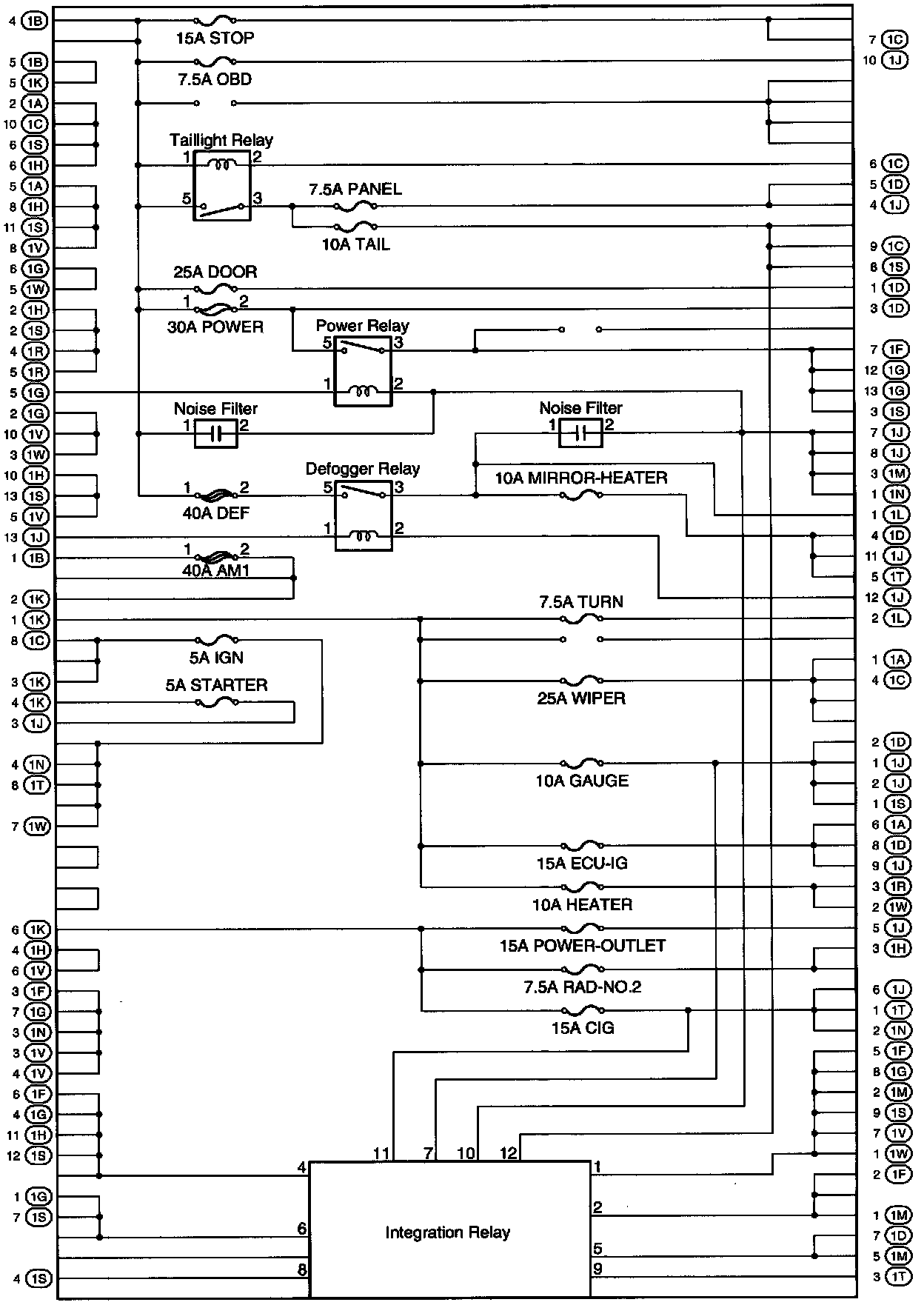

Instrument Panel Junction Block Inner Circuit
