Disassembly and Reassembly

Instrument Panel Part 2:

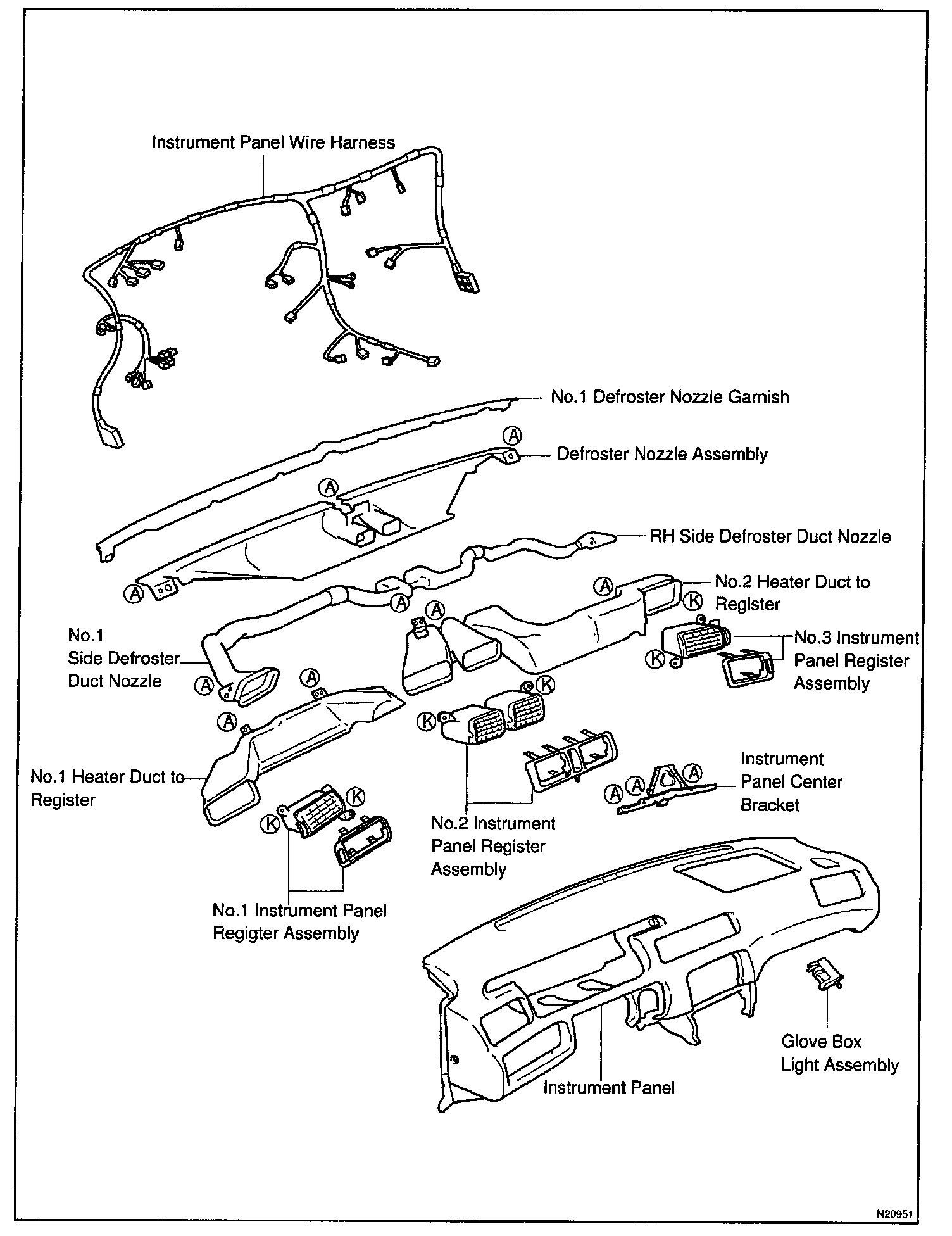

Disassembly

1. Remove These Parts:

(a) No. 1 defroster nozzle garnish
(b) No. 1 defroster nozzle
(c) RH side defroster duct nozzle
(d) No. 1 side defroster duct nozzle
(e) No. 1 heater duct to register
(f) No. 2 heater duct to register
(g) No. 2 register assembly
(h) No. 3 register assembly
(i) No. 1 register assembly






2. Remove instrument panel wire harness
(a) Remove the 2 brackets, 8 clips and wire harness

3. Remove instrument panel center bracket
4. Remove these parts:
(a) Clock unit
(b) Glove box light assembly

Reassembly is in the reverse order of disassembly
