Service Specifications

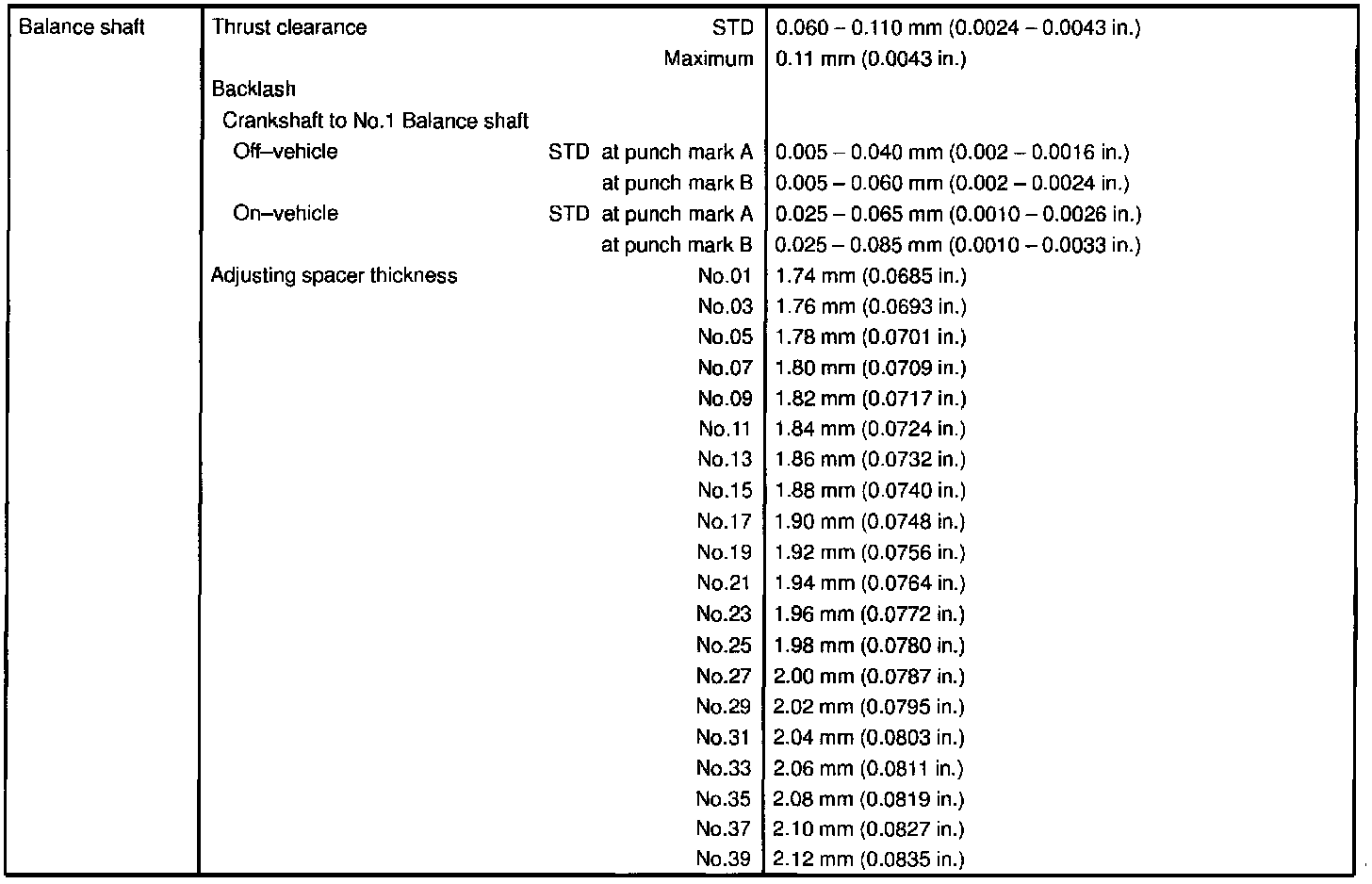

5S-FE Engine Mechanical Data:

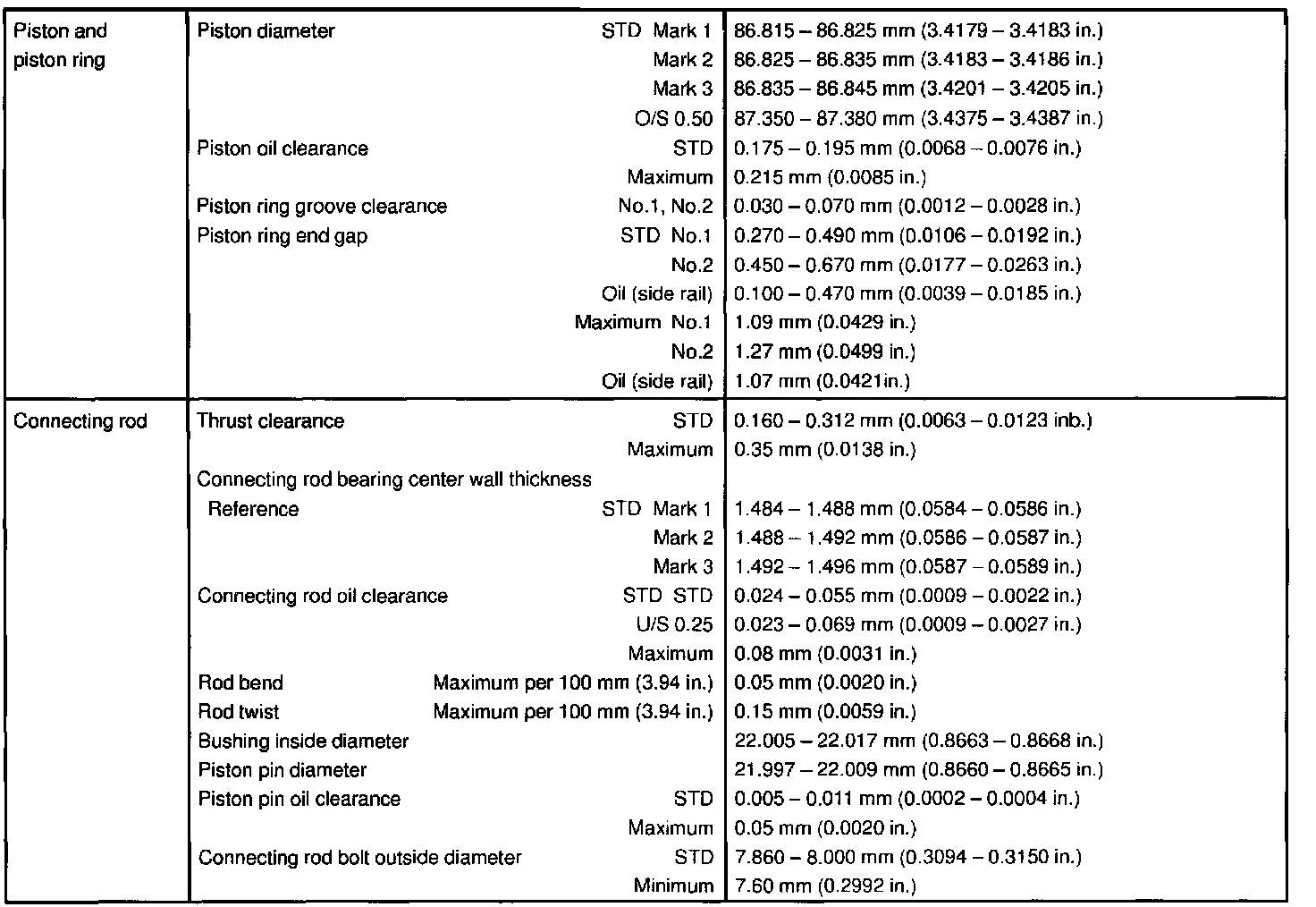

5S-FE Engine Mechanical Cont.:

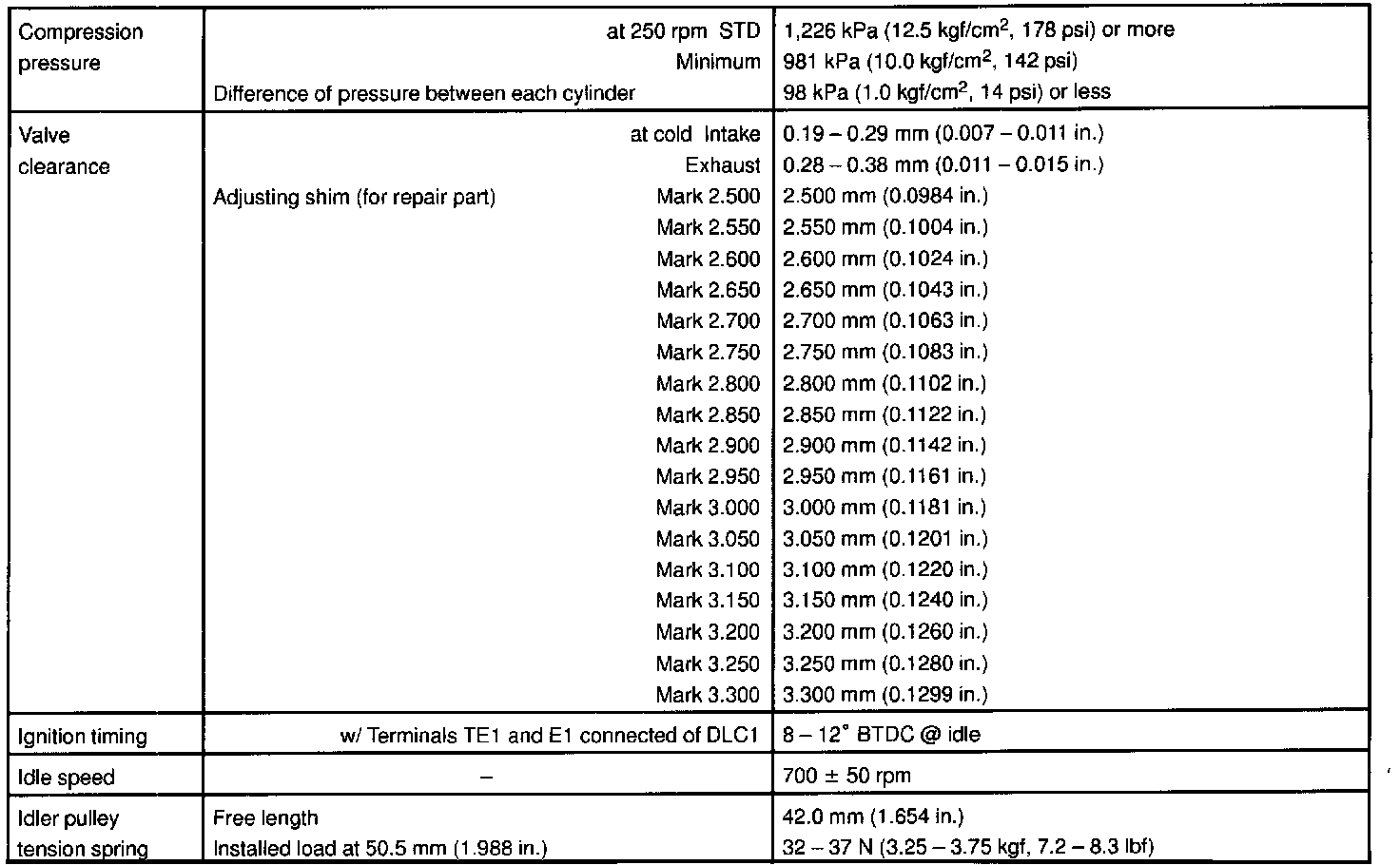

5S-FE Engine Mechanical Data:

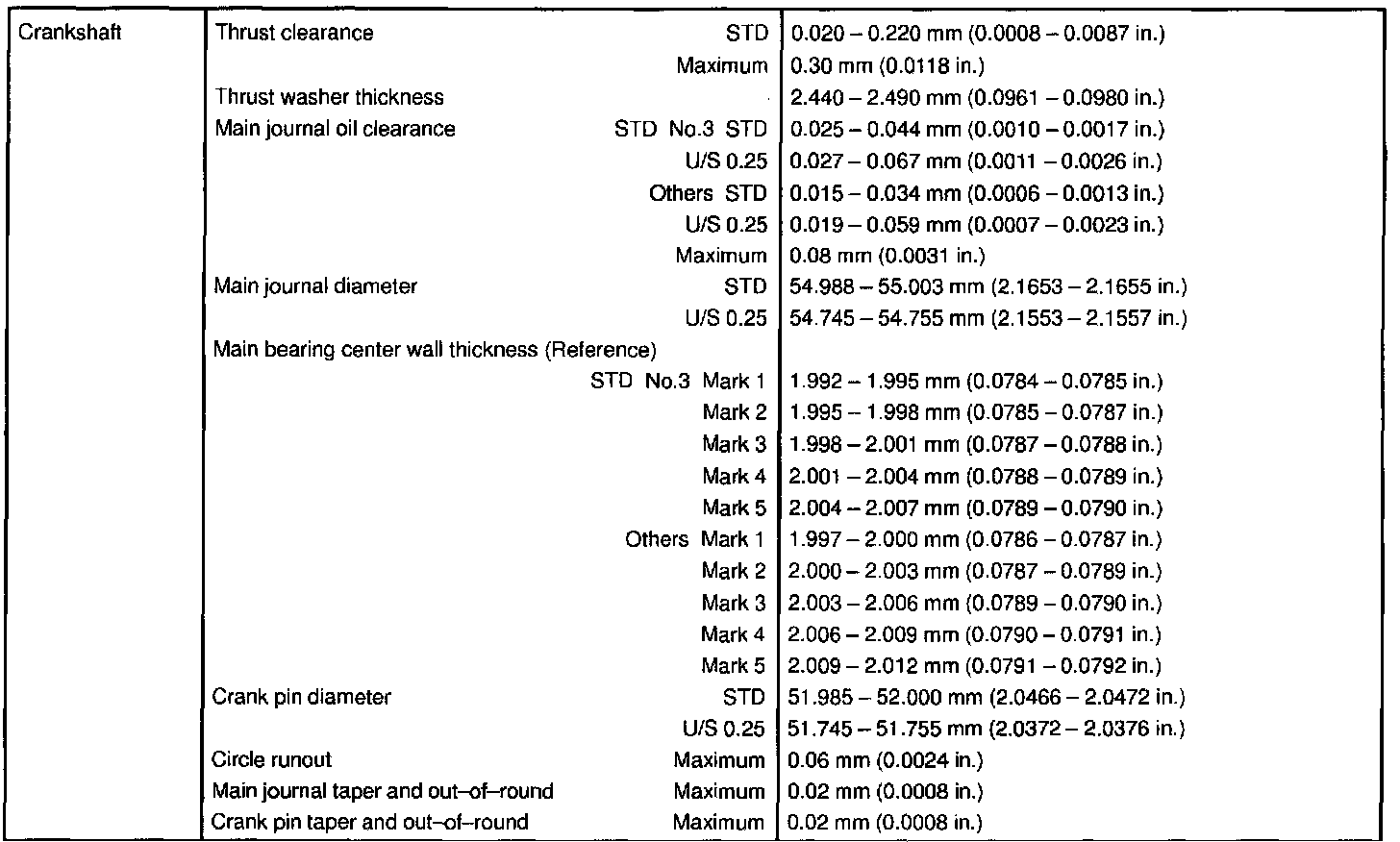

5S-FE Engine Mechanical Cont.:

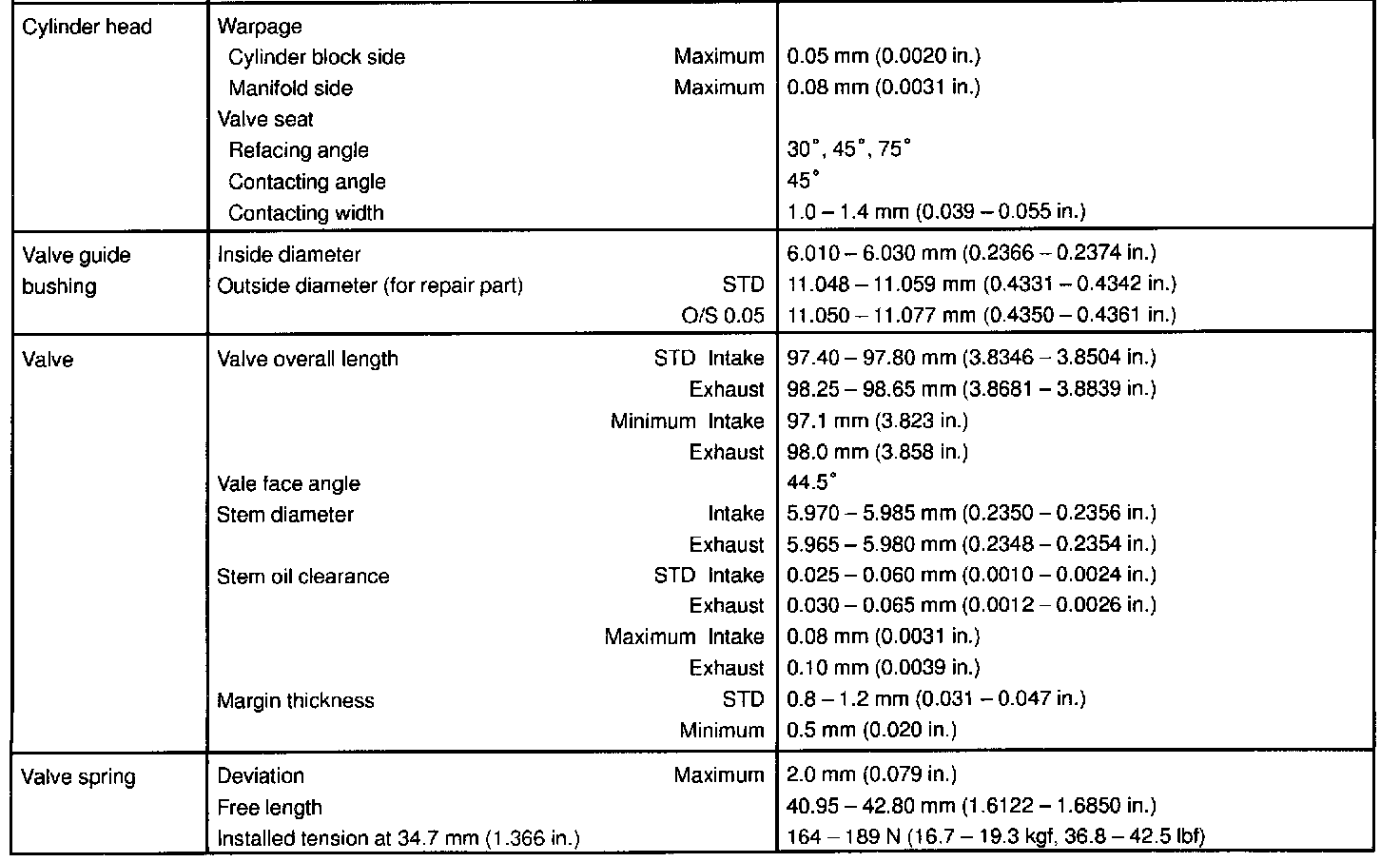

5S-FE Engine Mechanical Cont.:

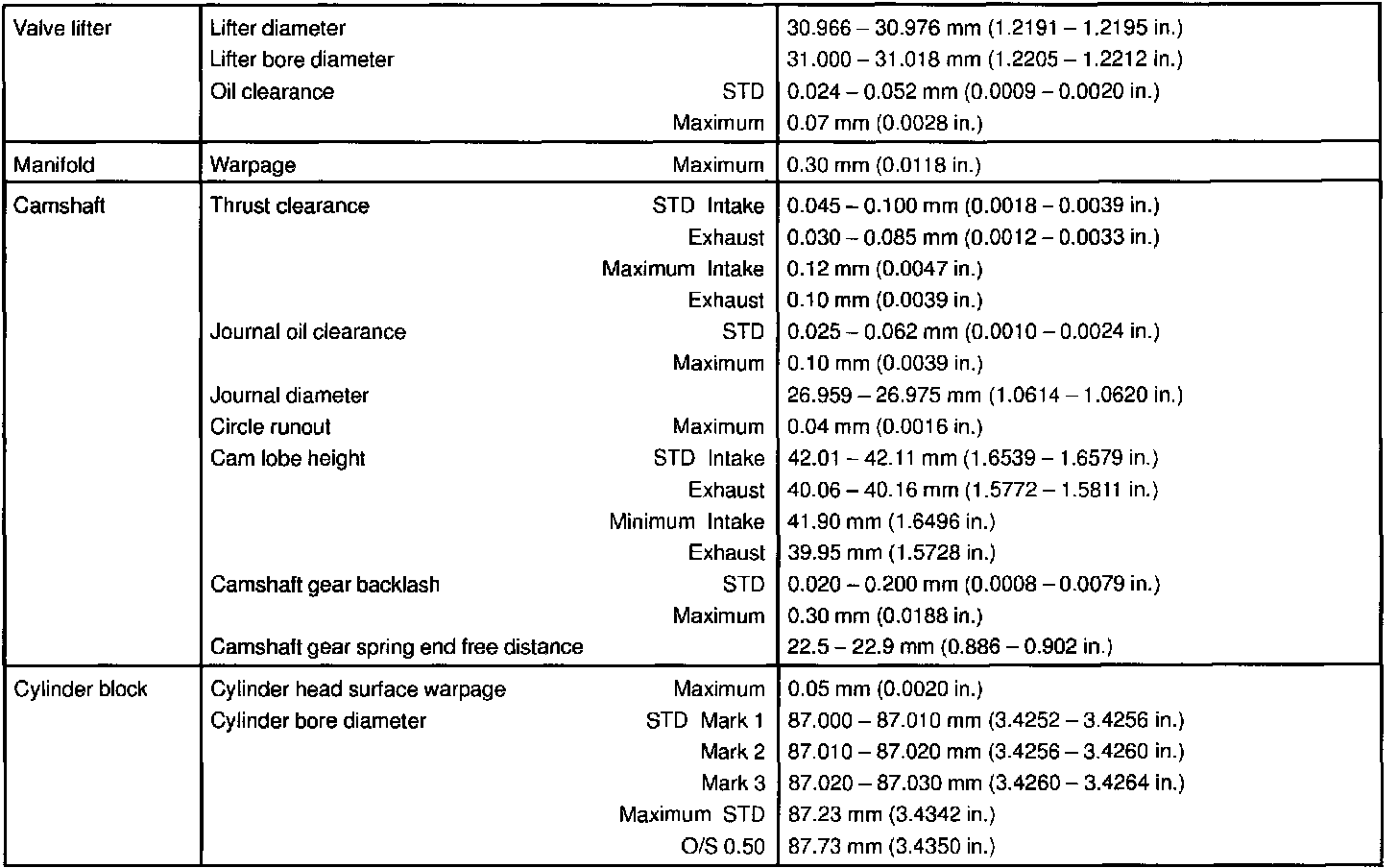

5S-FE Engine Mechanical Cont.:
