Using SST

DIAGNOSIS SYSTEM





a. Check the indicator.

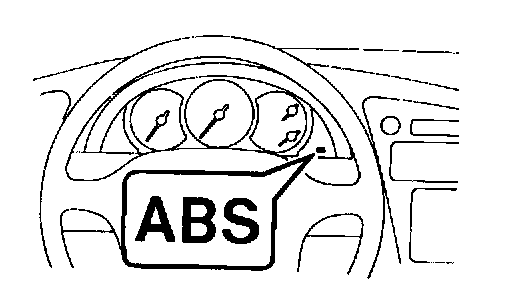

When the ignition switch is turned ON, check that the ABS warning light goes on for 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit.





b. Check the DTC.

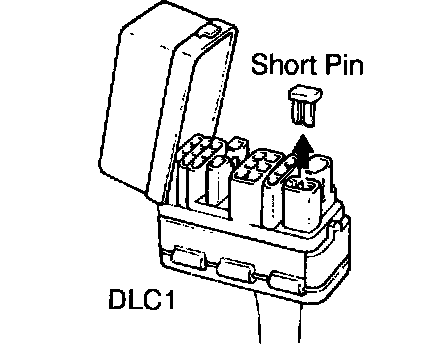

1. Disconnect the short pin from DLC1.





2. Using SST, connect terminals Tc and E1 of DLC2 or DLC1.

SST 09843-18020

3. Turn the ignition switch ON.
4. Read the DTC from the ABS warning light on the combination meter.





HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

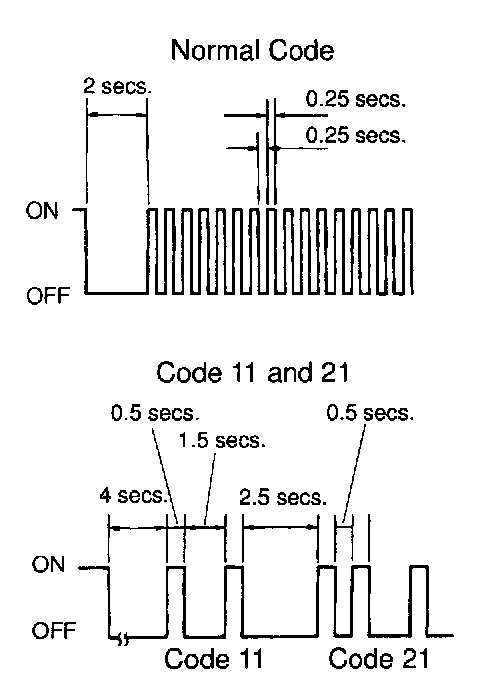

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

5. Codes are explained in the code table.
6. After completing the check, disconnect terminals Tc and E1, and turn off the display.
If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.
