Steering Gear

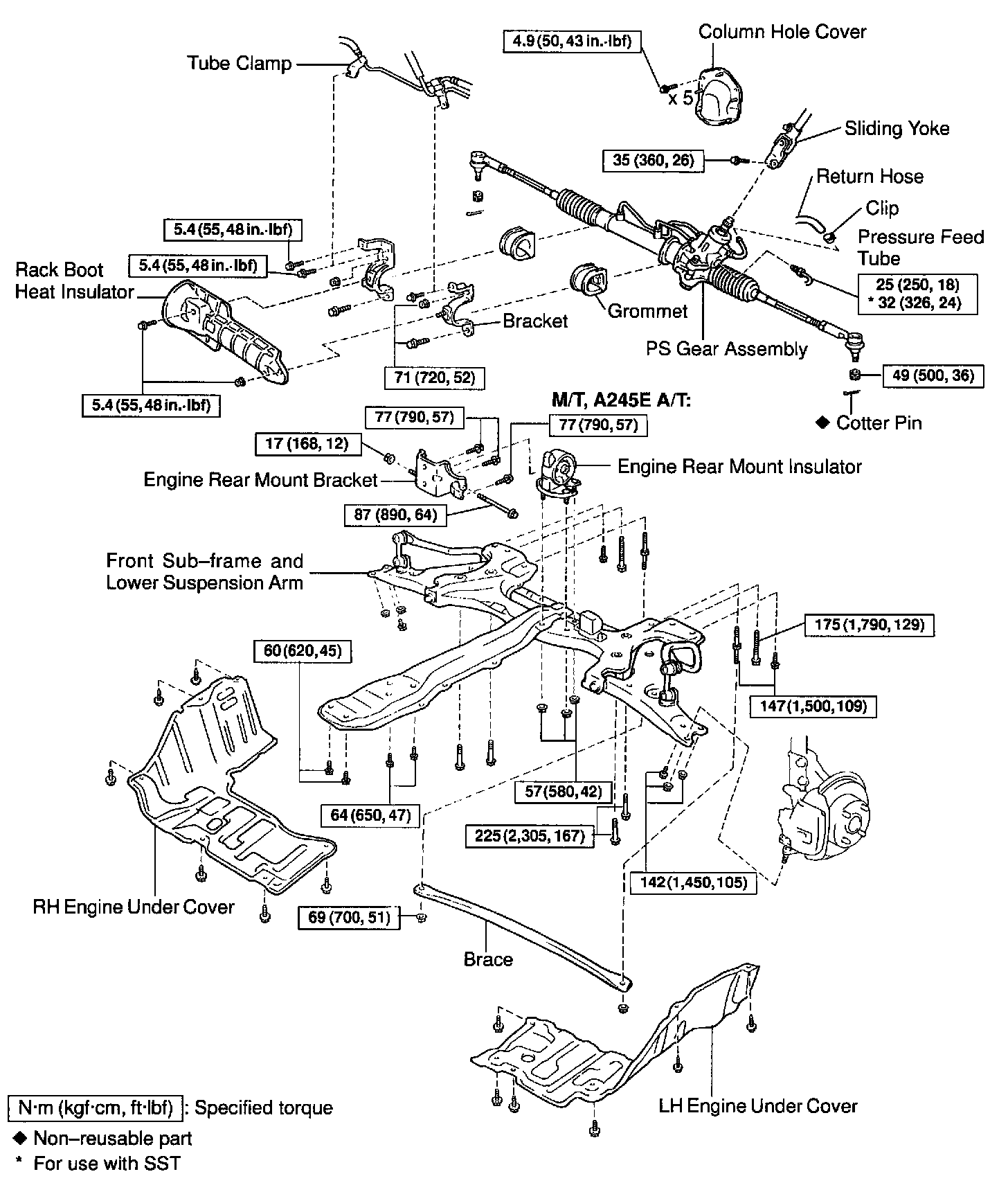

STEERING GEAR ASSEMBLY AND RELATED COMPONENTS

STEERING RACK, RACK HOUSING AND RACK ENDS

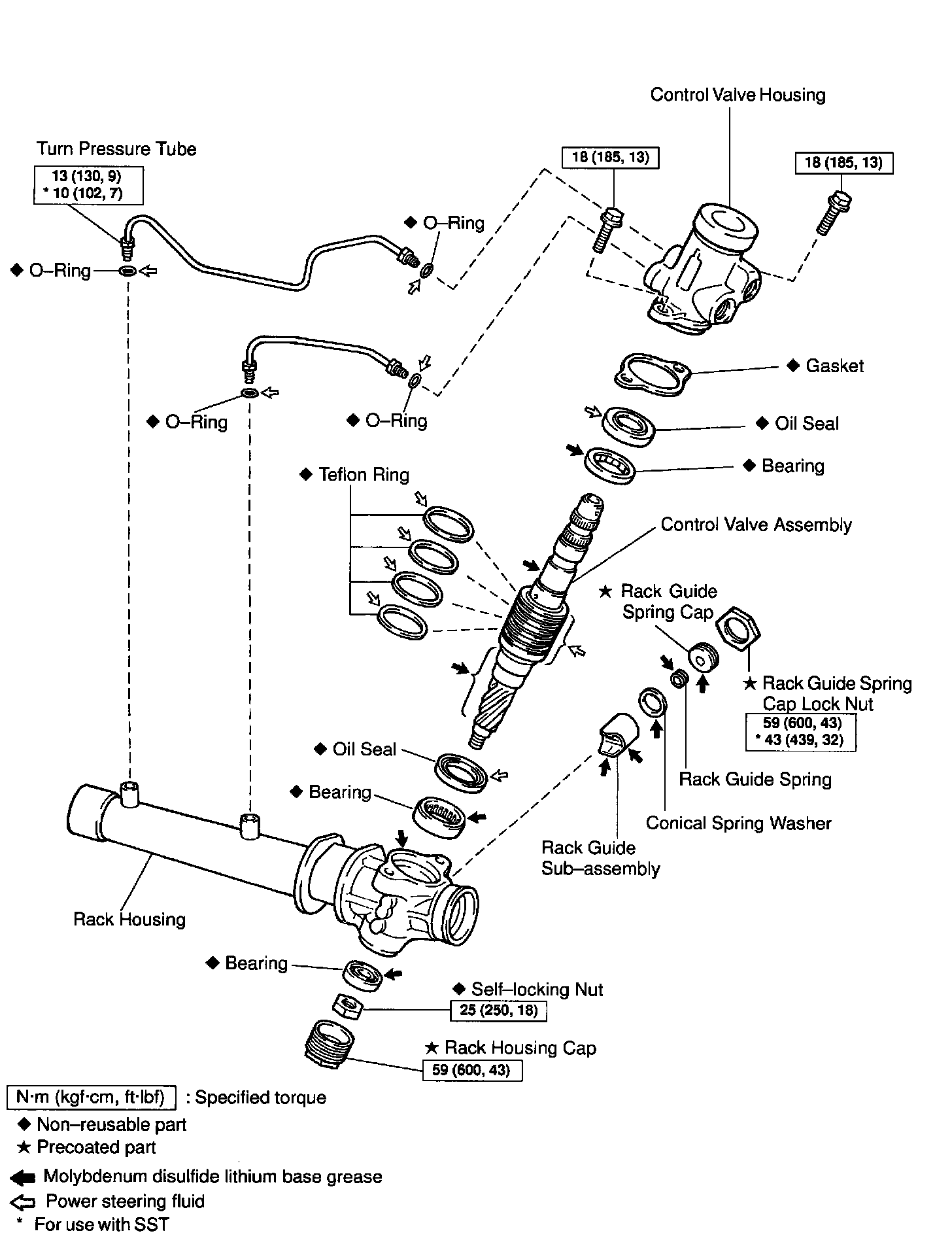

CONTROL VALVE HOUSING AND RELATED COMPONENTS
