Crankshaft Position Sensor: Service and Repair

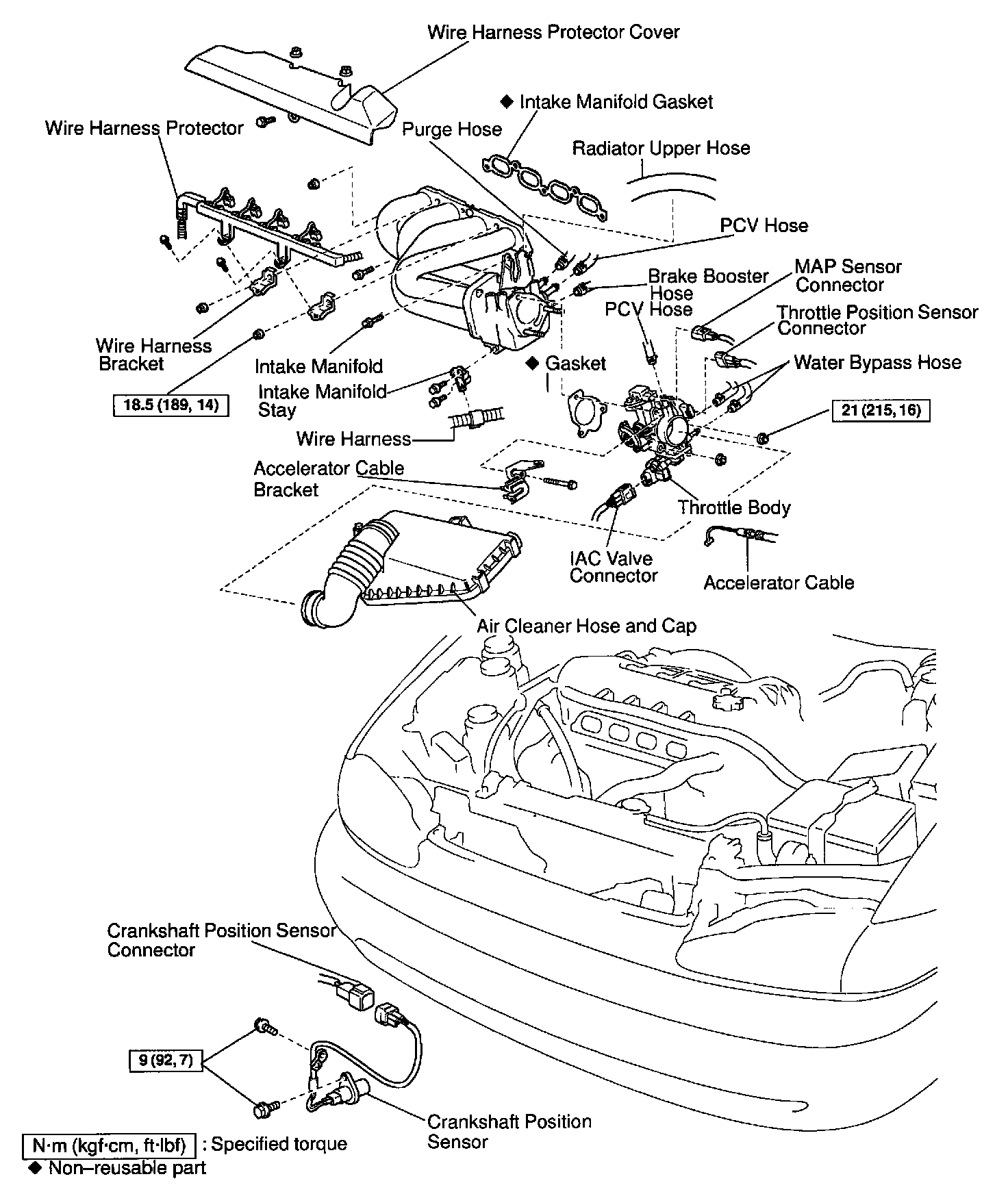

COMPONENTS

REMOVAL

1. REMOVE INTAKE MANIFOLD

2. REMOVE CRANKSHAFT POSITION SENSOR

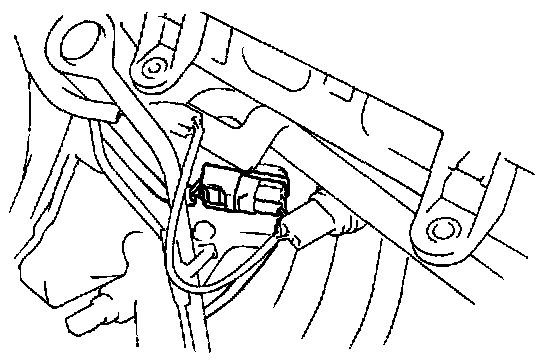

a. Disconnect the crankshaft position sensor connector.

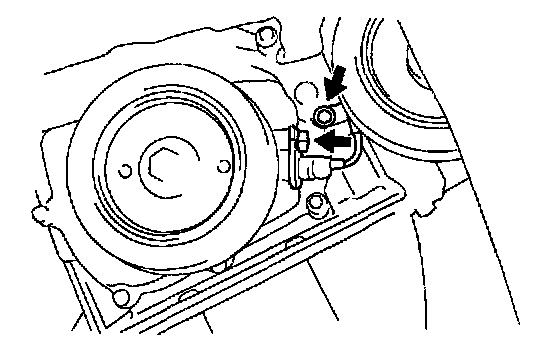

b. Remove the 2 bolts and disconnect the crankshaft position sensor.

Torque: 9 N.m (92 kgf.cm, 79 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
