Ignition Timing: Testing and Inspection
INSPECTION1. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.

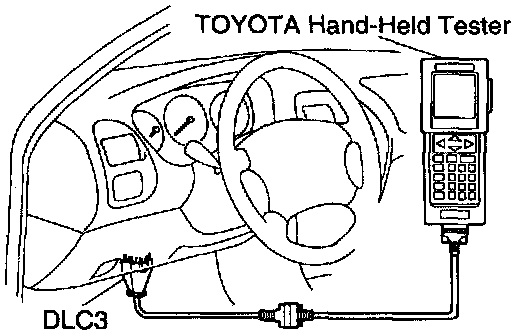

2. CONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL
a. Connect the TOYOTA hand-held tester or OBDII scan tool to the DLC3.
b. Please refer to the TOYOTA hand-held tester or OBDII-scan tool operator's for further details.
3. CONNECT TIMING LIGHT TO ENGINE
4. INSPECT IGNITION TIMING

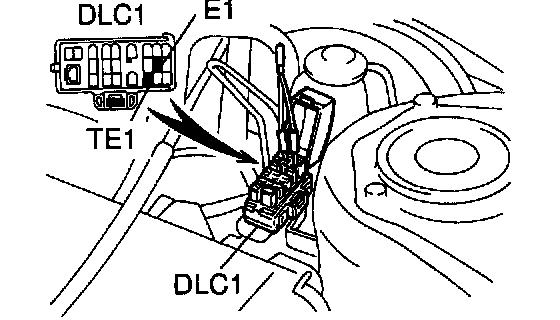

a. Using SST, connect terminals TE1 and E1 of the DLC1.
SST 09843-18020
HINT: After engine rpm is kept at 1,000 - 1,300 rpm for 5 seconds, check that it returns to idle speed.

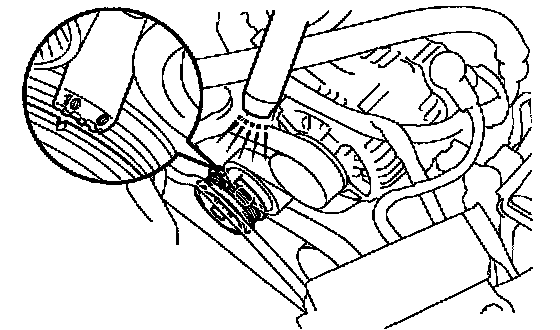

b. Using a timing light, check the ignition timing.
Ignition timing: 8 - 12° BTDC @ idle (Transmission in neutral position)
c. Remove the SST from the DLC1.
SST 09843-18020
5. FURTHER CHECK IGNITION TIMING
Ignition timing: 6 - 15° BTDC @ idle (Transmission in neutral position)
HINT: The timing mark moves in a range between 6° and 15°.
6. DISCONNECT TIMING LIGHT FROM ENGINE
7. DISCONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL
