Control Module HVAC: Service and Repair

REMOVAL

1. REMOVE THESE PARTS:
a. Front Door Scuff Plate RH
b. Cowl Side Trim RH
c. Lower Panel

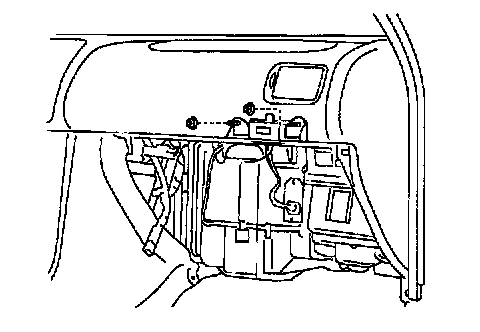

2. REMOVE AMPLIFIER
a. Disconnect the connector.
b. Remove the 2 bolts and amplifier.

INSTALLATION

1. INSTALL AMPLIFIER
a Install the amplifier with the 2 bolts.
b. Connect the connector.

2. INSTALL THESE PARTS:
a. Lower Panel
b. Cowl Side Trim RH
c. Front Door Scuff Plate RH
