Power Main Relay Circuit

CIRCUIT DESCRIPTION
Power main relay will be "ON" by operating the power window switch.

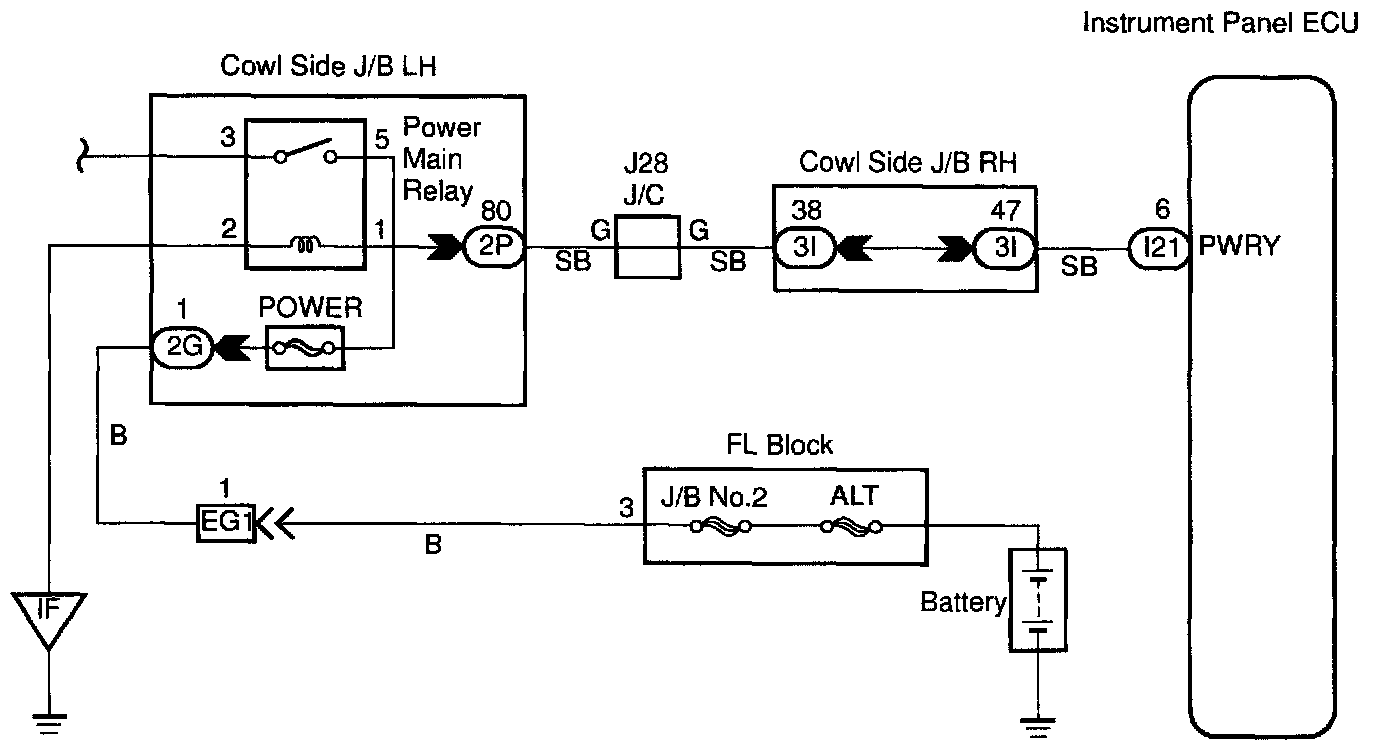

WIRING DIAGRAM

Step 1:

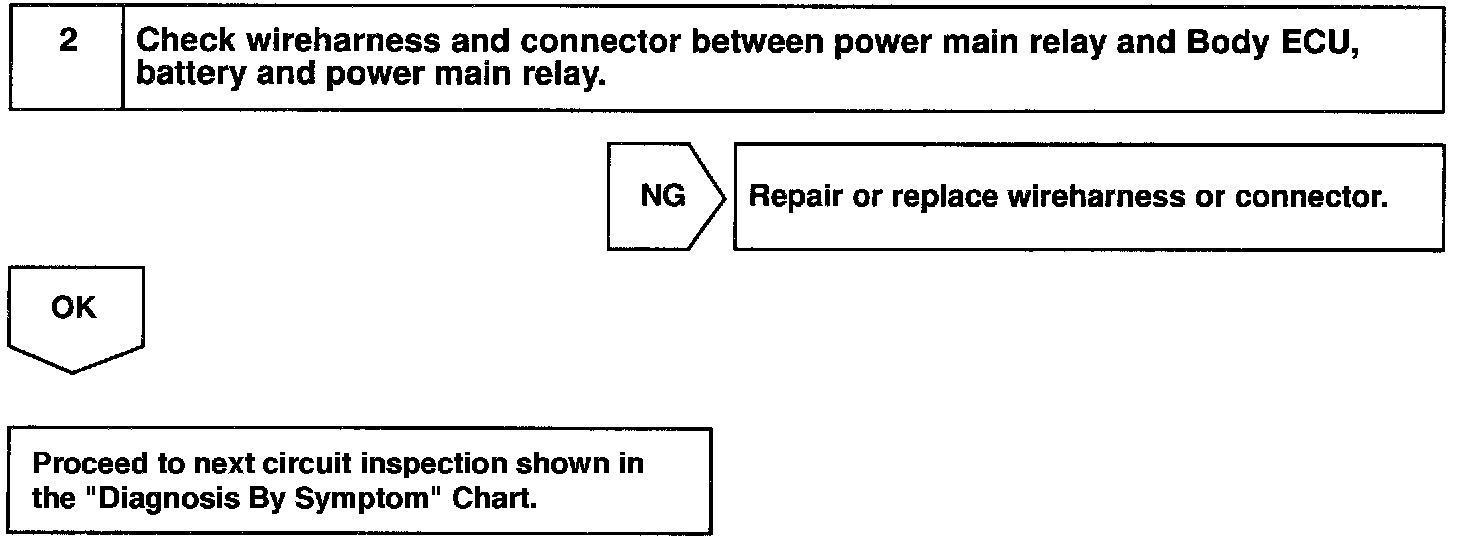

Step 2:




INSPECTION PROCEDURE
