Body

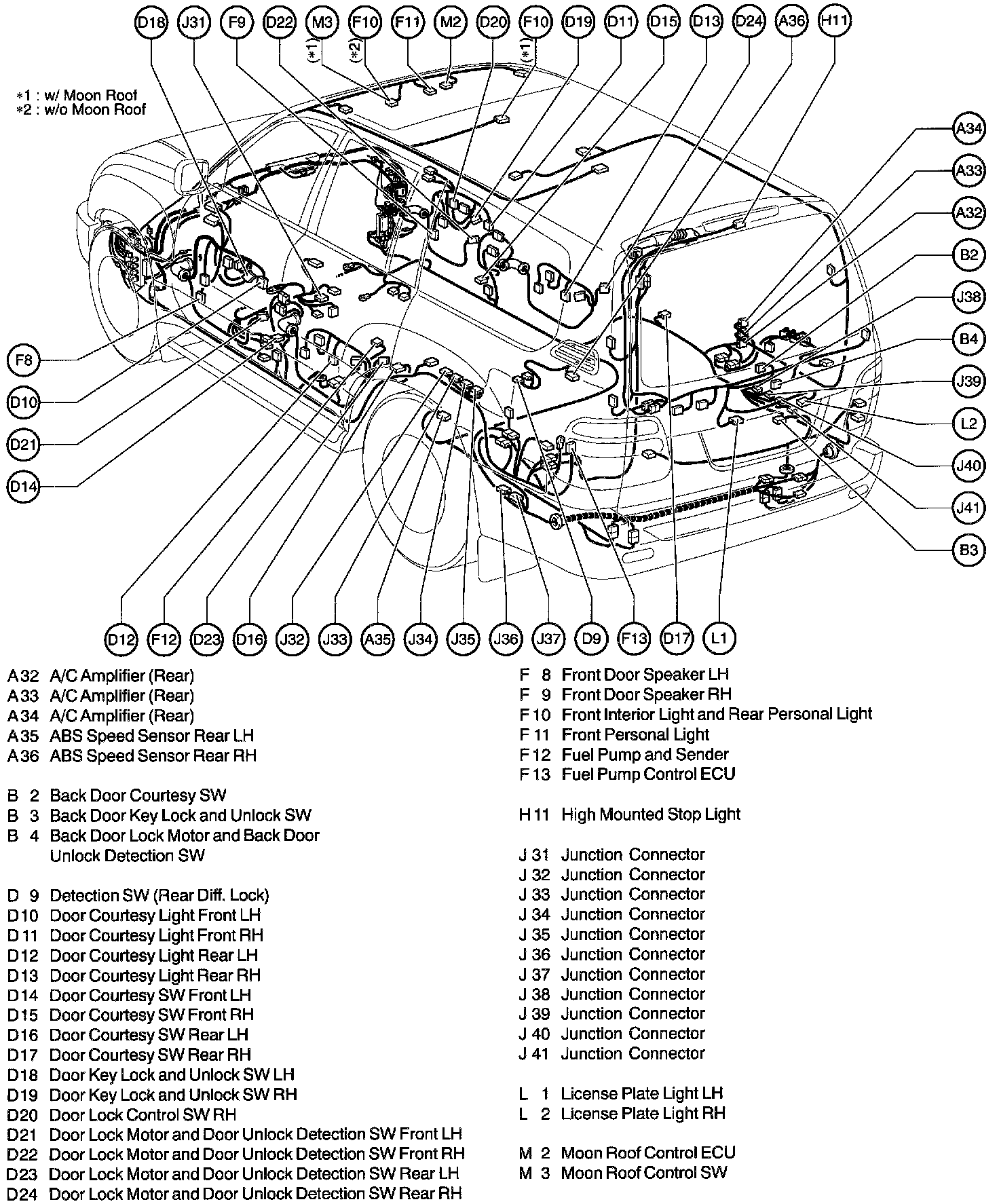

A32 A/C Amplifier (Rear)
A33 A/C Amplifier (Rear)
A34 A/C Amplifier (Rear)
A35 ABS Speed Sensor Rear LH
A36 ABS Speed Sensor Rear RH

B 2 Back Door Courtesy SW
B 3 Back Door Key Lock and Unlock SW
B 4 Back Door Lock Motor and Back Door Unlock Detection SW

D 9 Detection SW (Rear Diff. Lock)
D10 Door Courtesy Light Front LH
D11 Door Courtesy Light Front RH
D12 Door Courtesy Light Rear LH
D13 Door Courtesy Light Rear RH
D14 Door Courtesy SW Front LH
D15 Door Courtesy SW Front RH
D16 Door Courtesy SW Rear LH
D17 Door Courtesy SW Rear RH
D18 Door Key Lock and Unlock SW LH
D19 Door Key Look and Unlock SW RH
D20 Door Lock Control SW RH
D21 Door Lock Motor and Door Unlock Detection SW Front LH
D22 Door Lock Motor and Door Unlock Detection SW Front RH
D23 Door Lock Motor and Door Unlock Detection SW Rear LH
D24 Door Lock Motor and Door Unlock Detection SW Rear RH

F 8 Front Door Speaker LH
F 9 Front Door Speaker RH
F10 Front Interior Light and Rear Personal Light
F11 Front Personal Light
F12 Fuel Pump and Sender
F13 Fuel Pump Control ECU

H 11 High Mounted Stop Light

J31 Junction Connector
J32 Junction Connector
J33 Junction Connector
J34 Junction Connector
J35 Junction Connector
J36 Junction Connector
J37 Junction Connector
J38 Junction Connector
J39 Junction Connector
J40 Junction Connector
J41 Junction Connector

L 1 License Plate Light LH
L 2 License Plate Light RH

M 2 Moon Roof Control ECU
M 3 Moon Roof Control SW

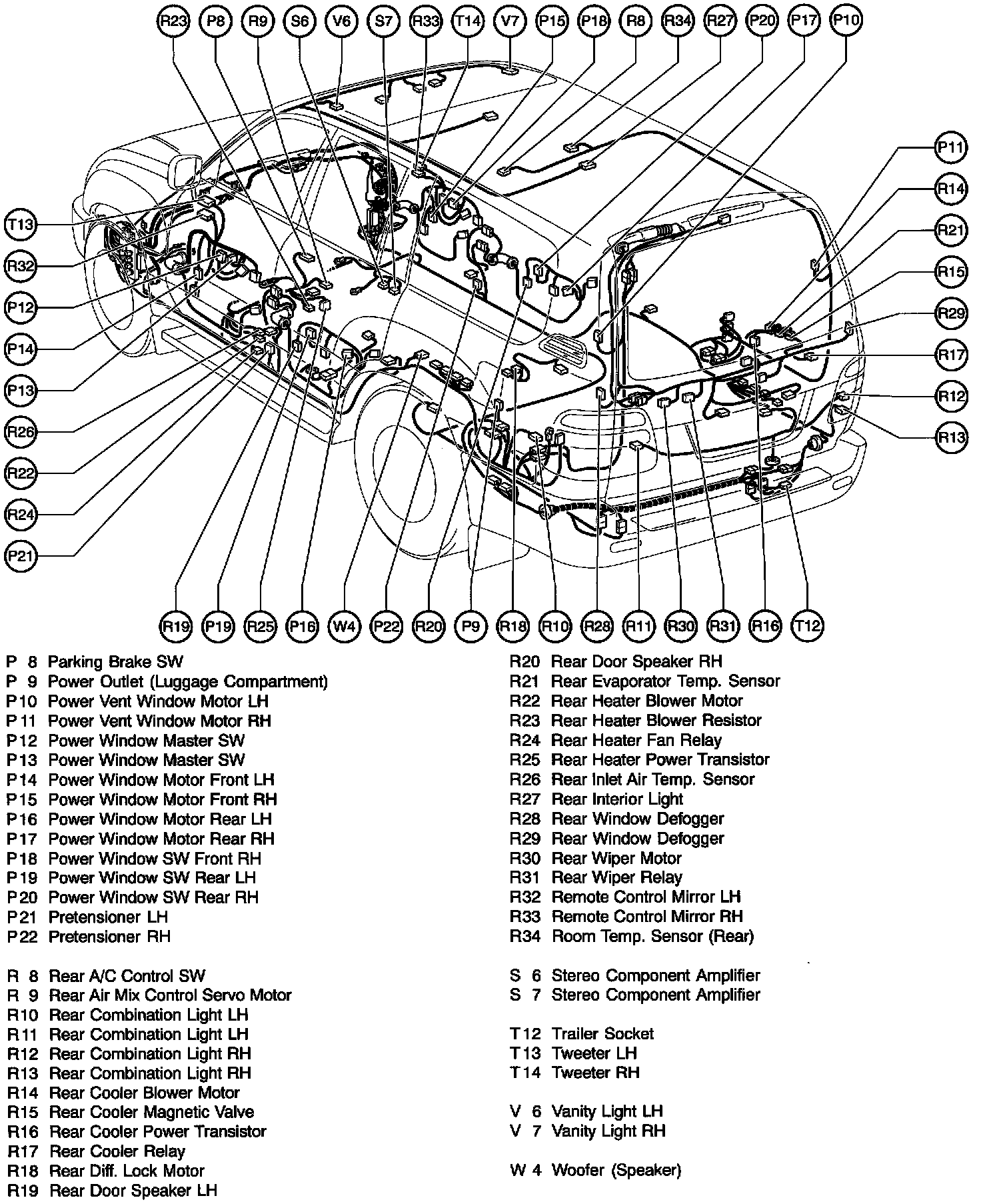

P 8 Parking Brake SW
P 9 Power Outlet (Luggage Compartment)
P10 Power Vent Window Motor LH
P11 Power Vent Window Motor RH
P12 Power Window Master SW
P13 Power Window Master SW
P14 Power Window Motor Front LH
P15 Power Window Motor Front RH
P16 Power Window Motor Rear LH
P17 Power Window Motor Rear RH
P18 Power Window SW Front RH
P19 Power Window SW Rear LH
P20 Power Window SW Rear RH
P21 Pretensioner LH
P22 Pretensioner RH

R 8 Rear A/C Control SW
R 9 Rear Air Mix Control Servo Motor
R10 Rear Combination Light LH
R11 Rear Combination Light LH
R12 Rear Combination Light RH
R13 Rear Combination Light RH
R14 Rear Cooler Blower Motor
R15 Rear Cooler Magnetic Valve
R16 Rear Cooler Power Transistor
R17 Rear Cooler Relay
R18 Rear Diff. Lock Motor
R19 Rear Door Speaker LH
R20 Rear Door Speaker RH
R21 Rear Evaporator Temp. Sensor
R22 Rear Heater Blower Motor
R23 Rear Heater Blower Resistor
R24 Rear Heater Fan Relay
R25 Rear Heater Power Transistor
R26 Rear Inlet Air Temp. Sensor
R27 Rear Interior Light
R28 Rear Window Defogger
R29 Rear Window Defogger
R30 Rear Wiper Motor
R31 Rear Wiper Relay
R32 Remote Control Mirror LH
R33 Remote Control Mirror RH
R34 Room Temp. Sensor (Rear)

S 6 Stereo Component Amplifier
S 7 Stereo Component Amplifier

T12 Trailer Socket
T13 Tweeter LH
T14 Tweeter RH

V 6 Vanity Light LH
V 7 Vanity Light RH

W 4 Woofer (Speaker)
