Front Differential

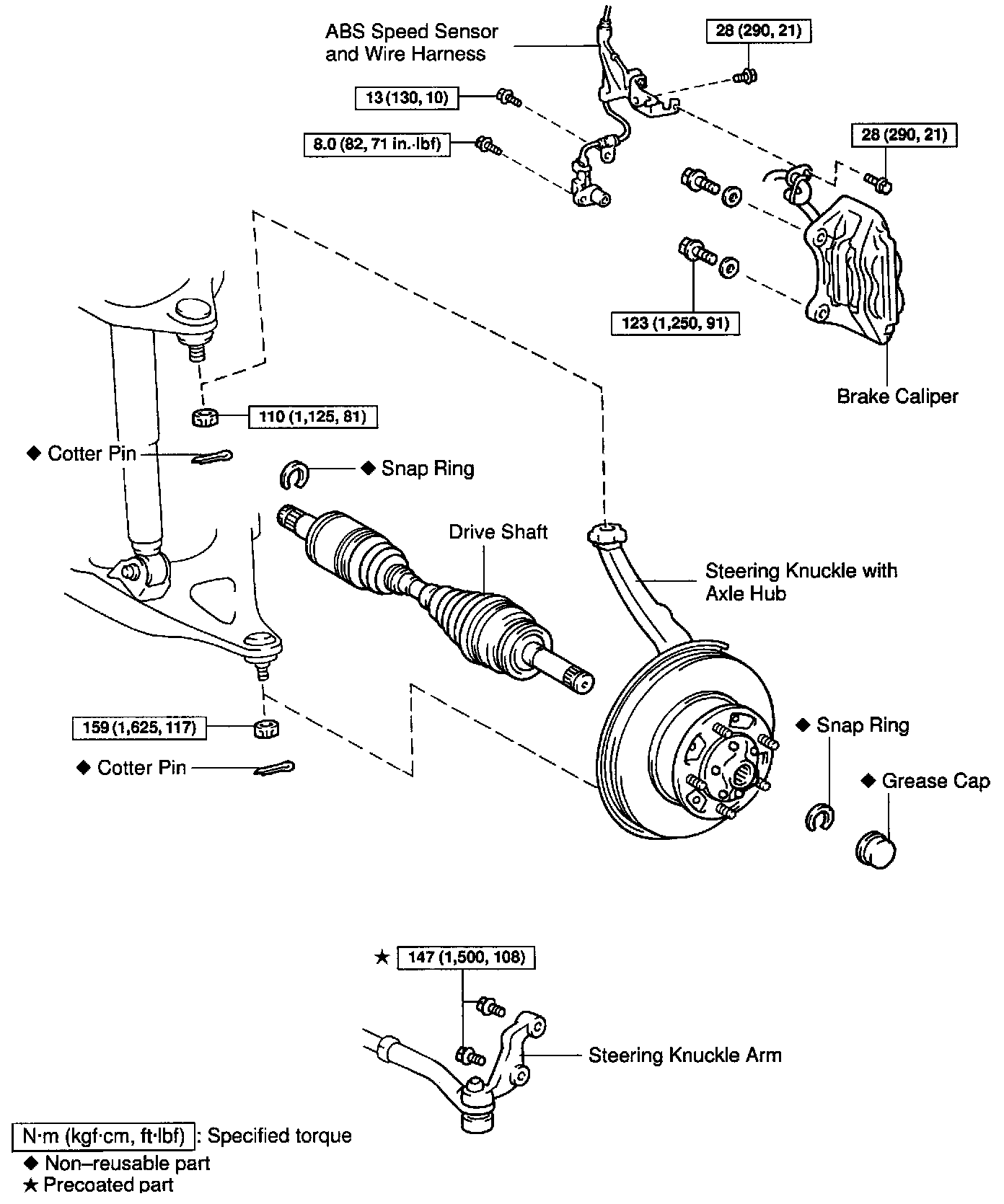

DRIVE SHAFT, STEERING KNUCKLE ARM AND RELATED COMPONENTS

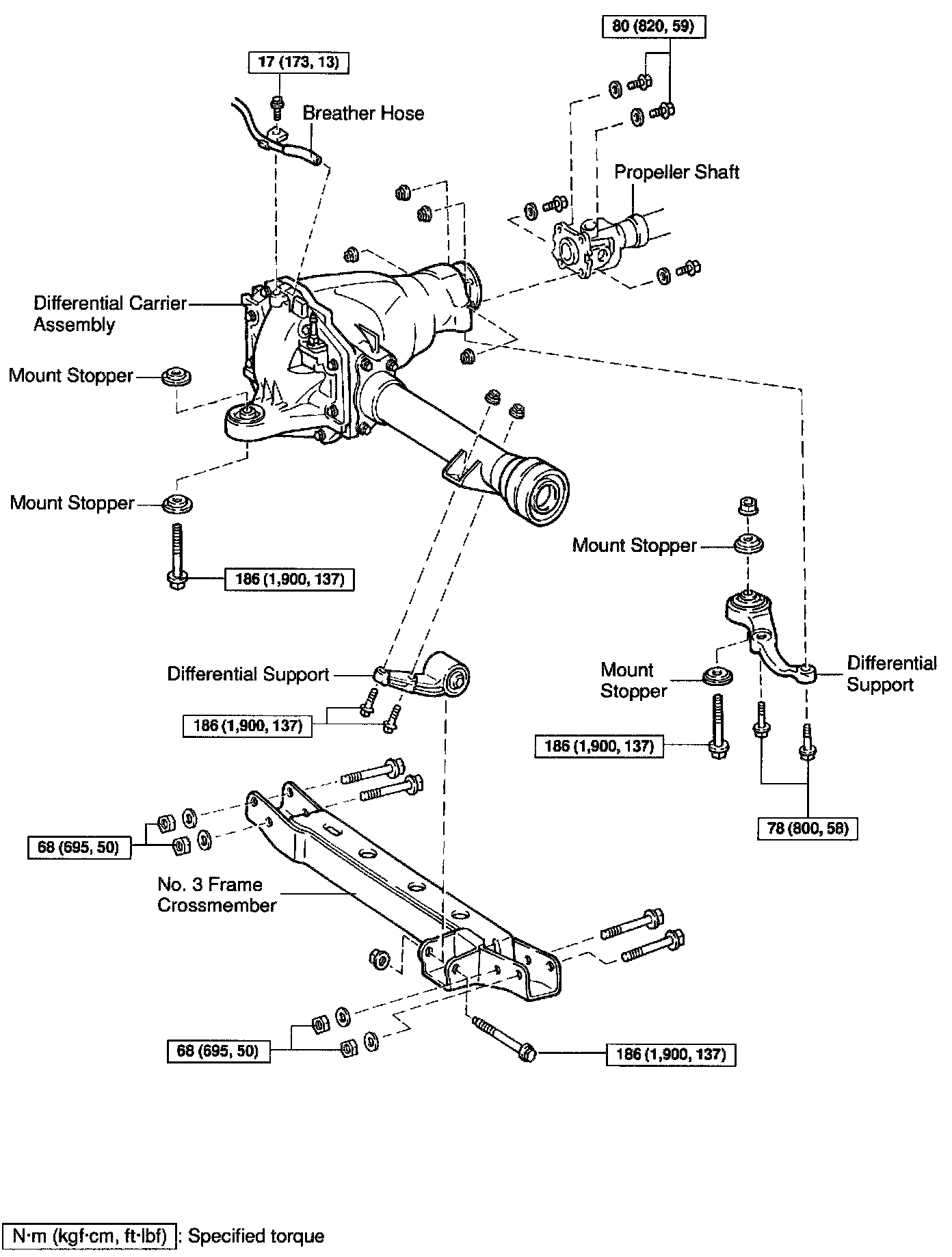

DIFFERENTIAL CARRIER ASSEMBLY AND RELATED COMPONENTS

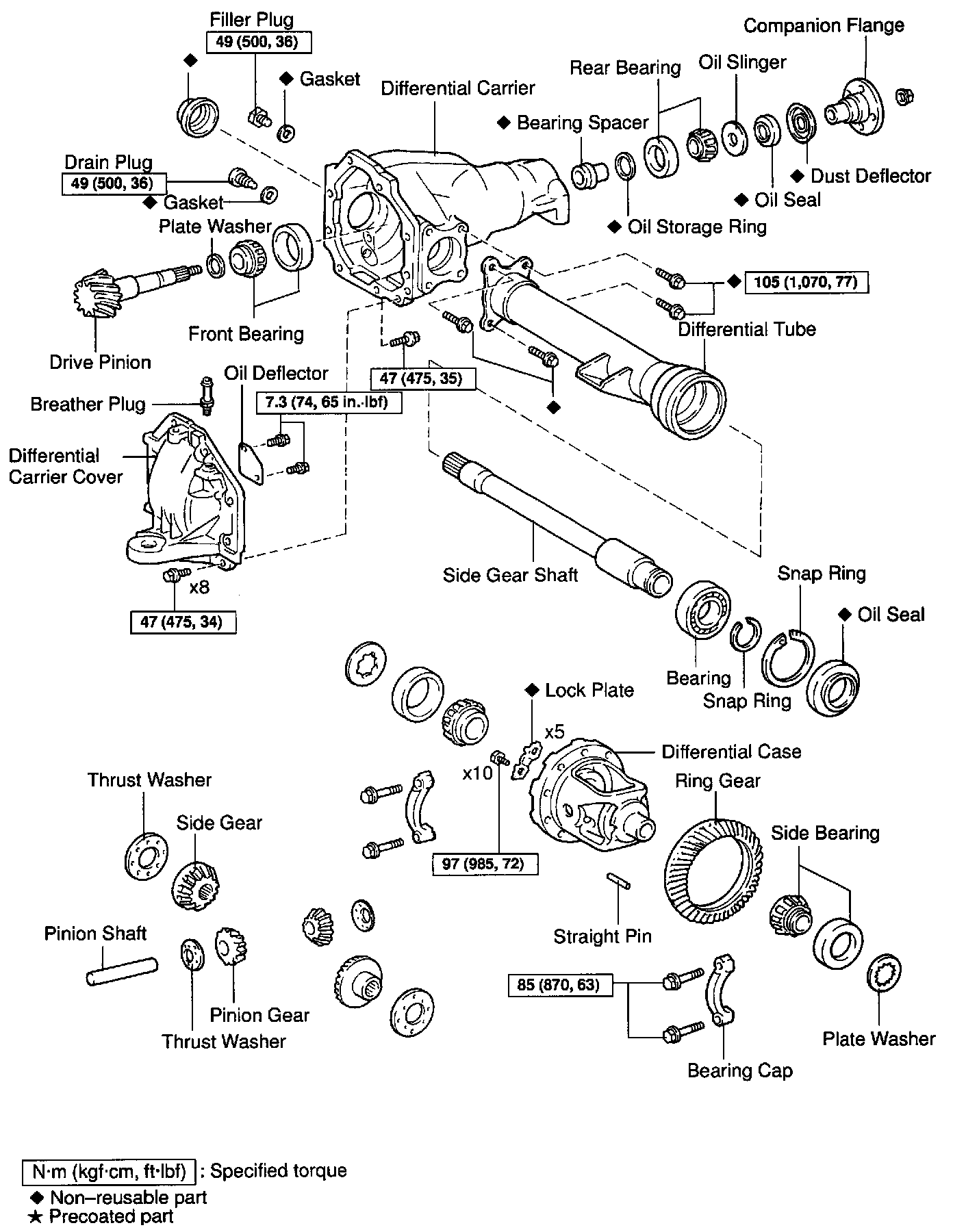

DIFFERENTIAL CARRIER
