Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 1999 >> Landcruiser AWD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

Cylinder Head Assembly

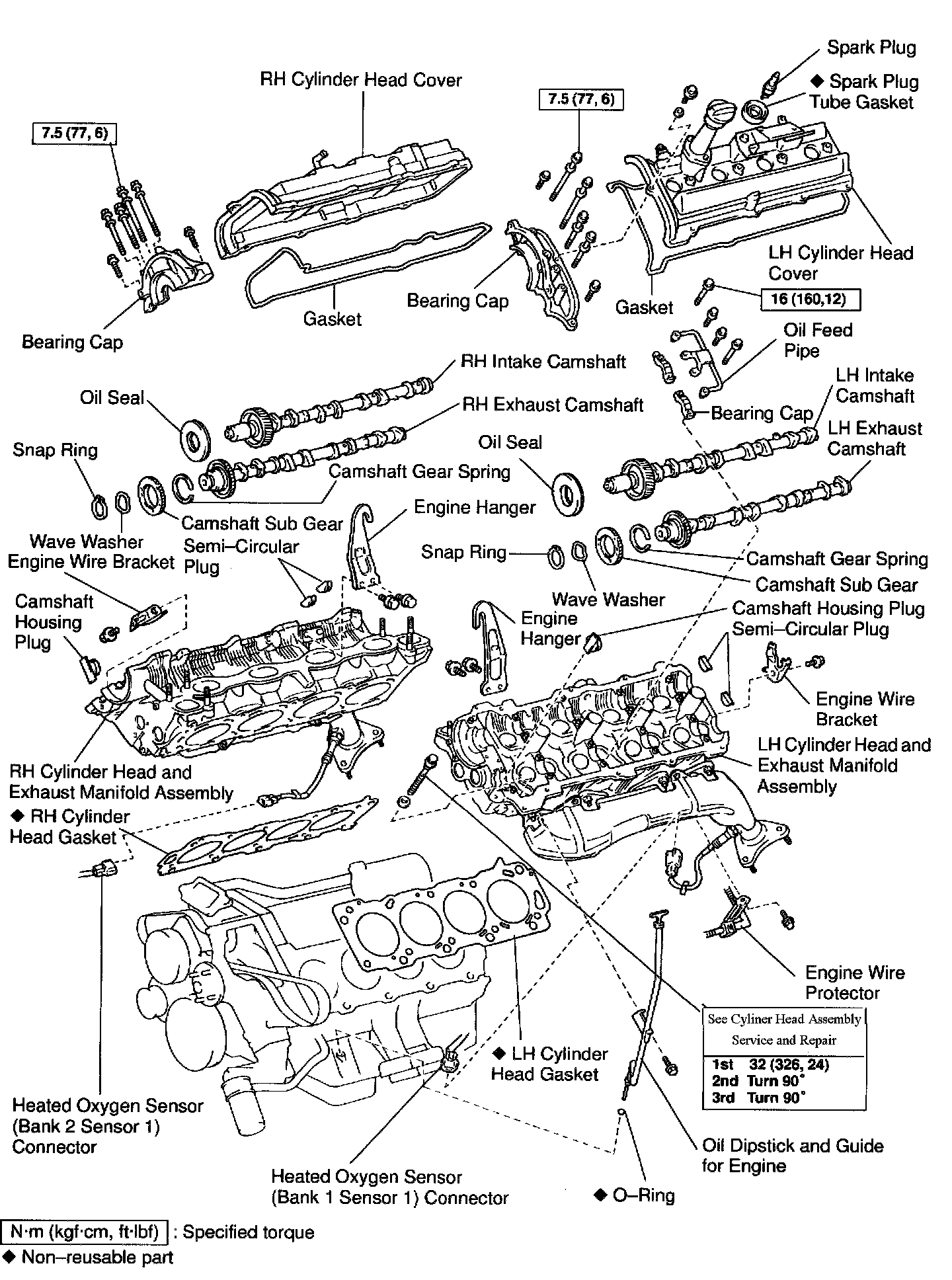

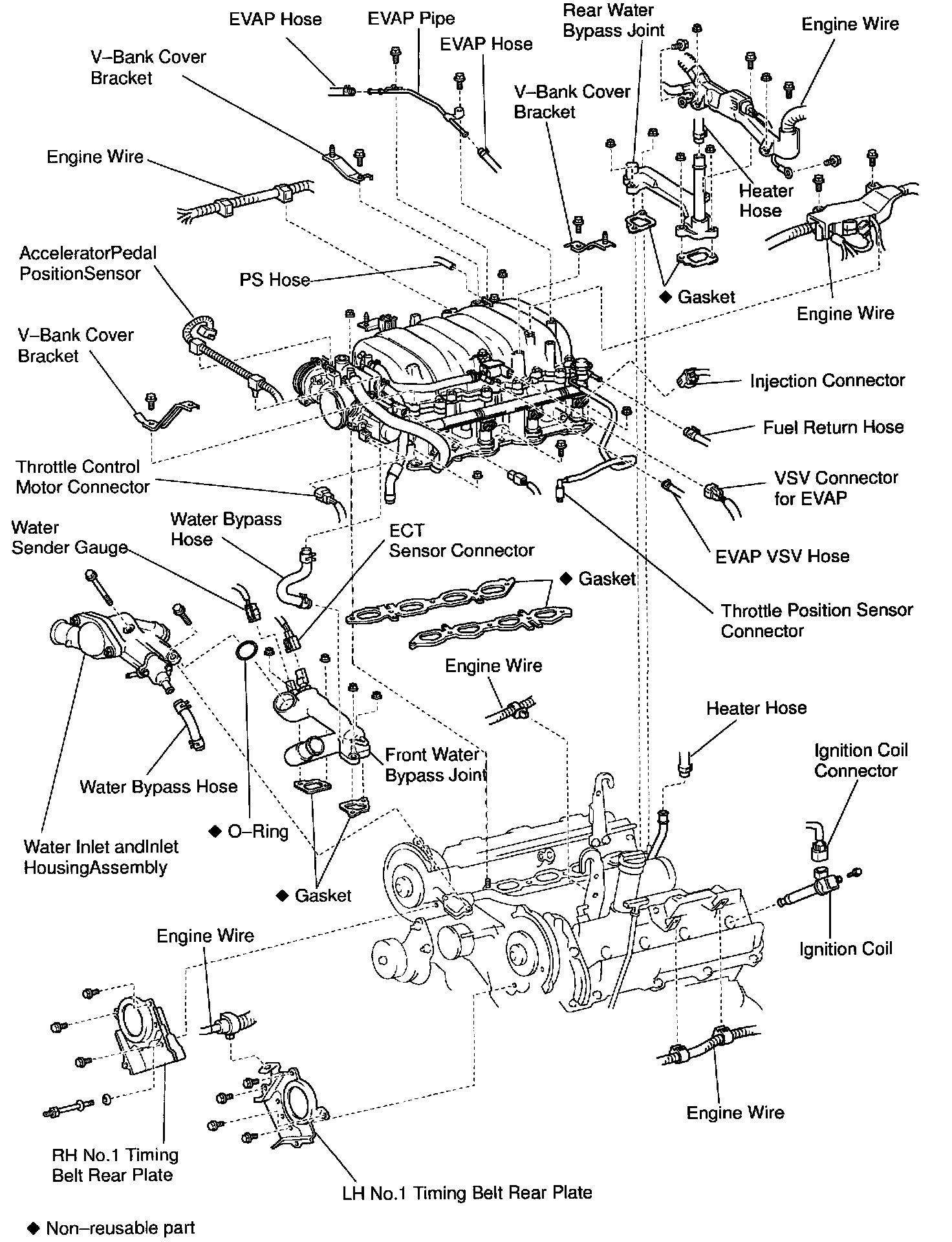

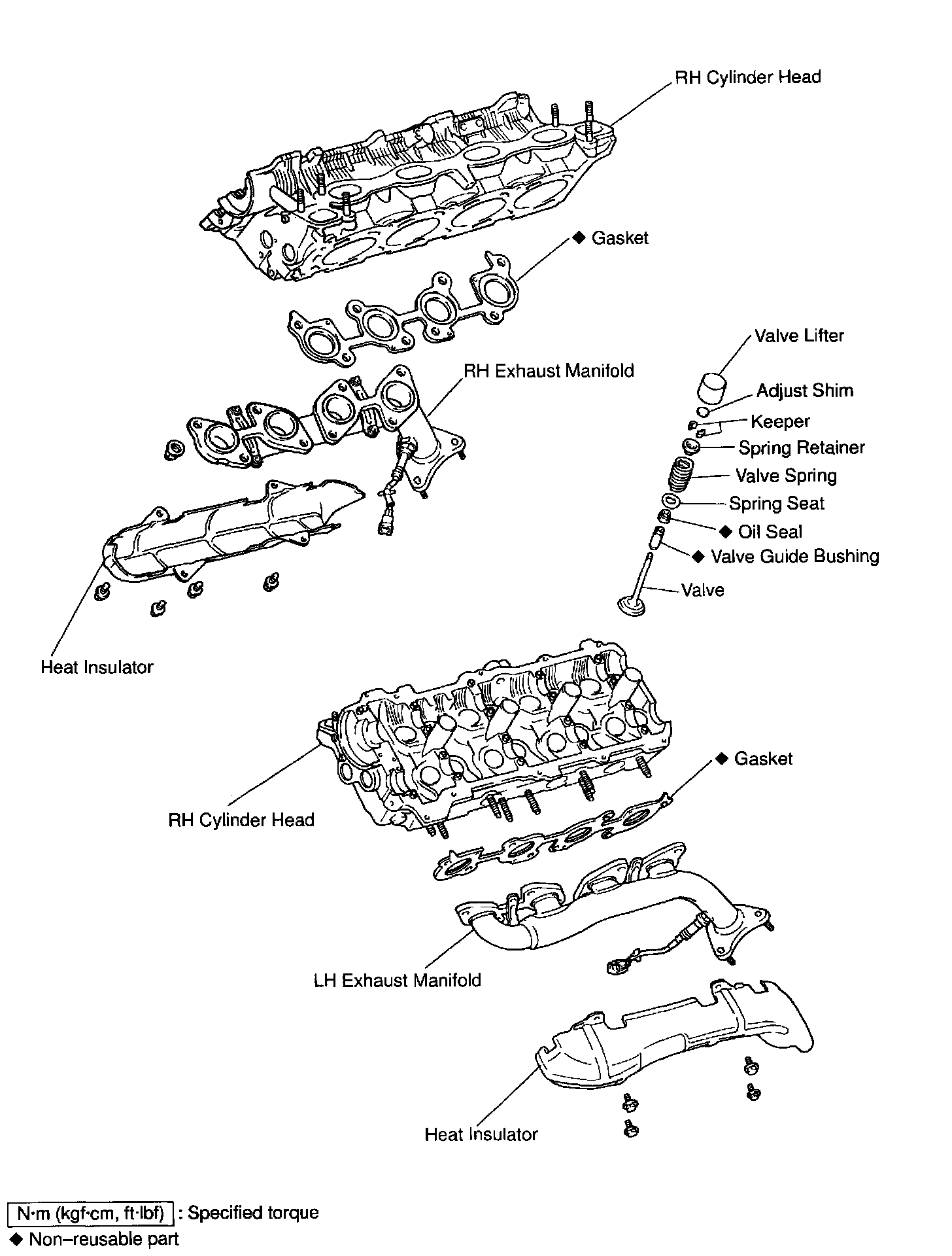

CYLINDER HEAD AND RELATED COMPONENTS
