Compressor Circuit
CIRCUIT DESCRIPTIONA/C amplifier switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

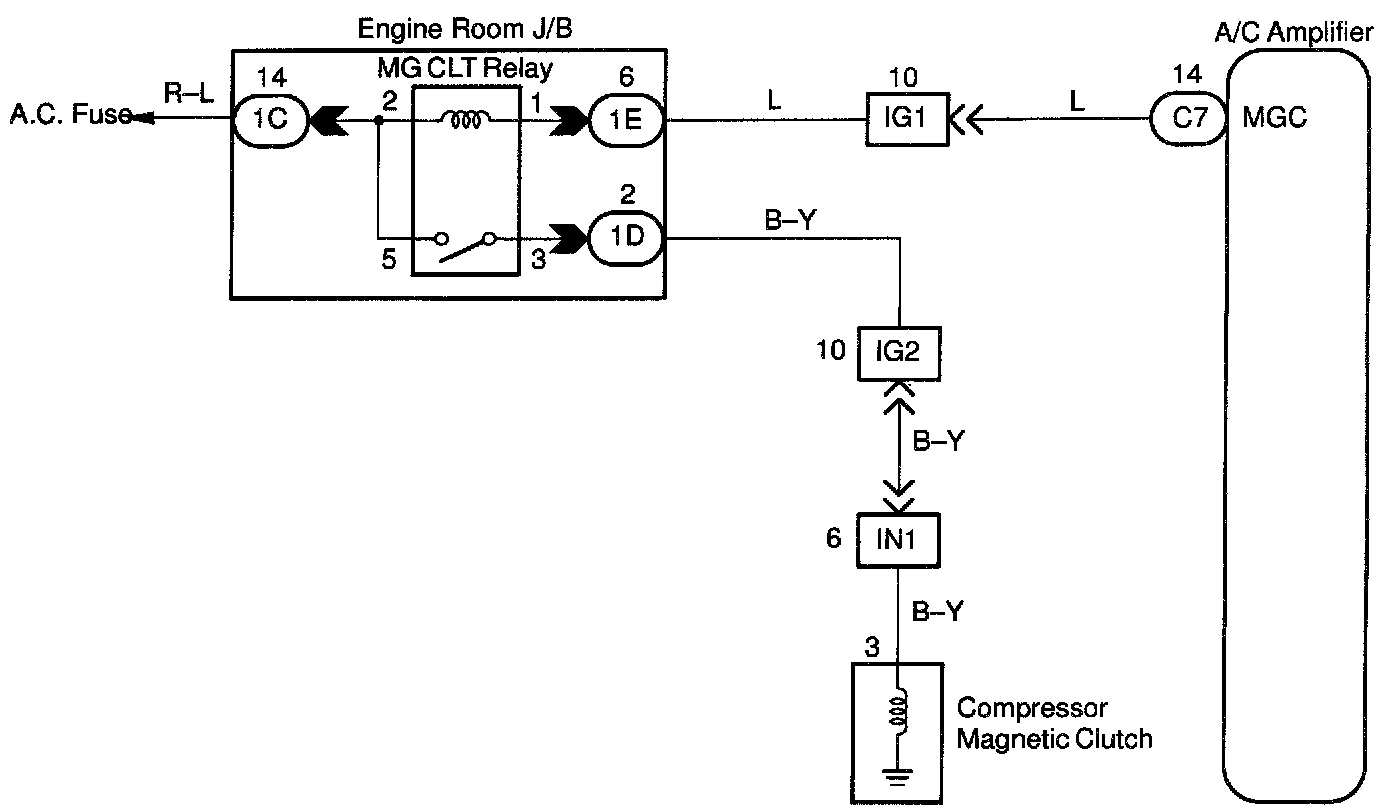

WIRING DIAGRAM
Step 1:
Step 2:
Step 3:

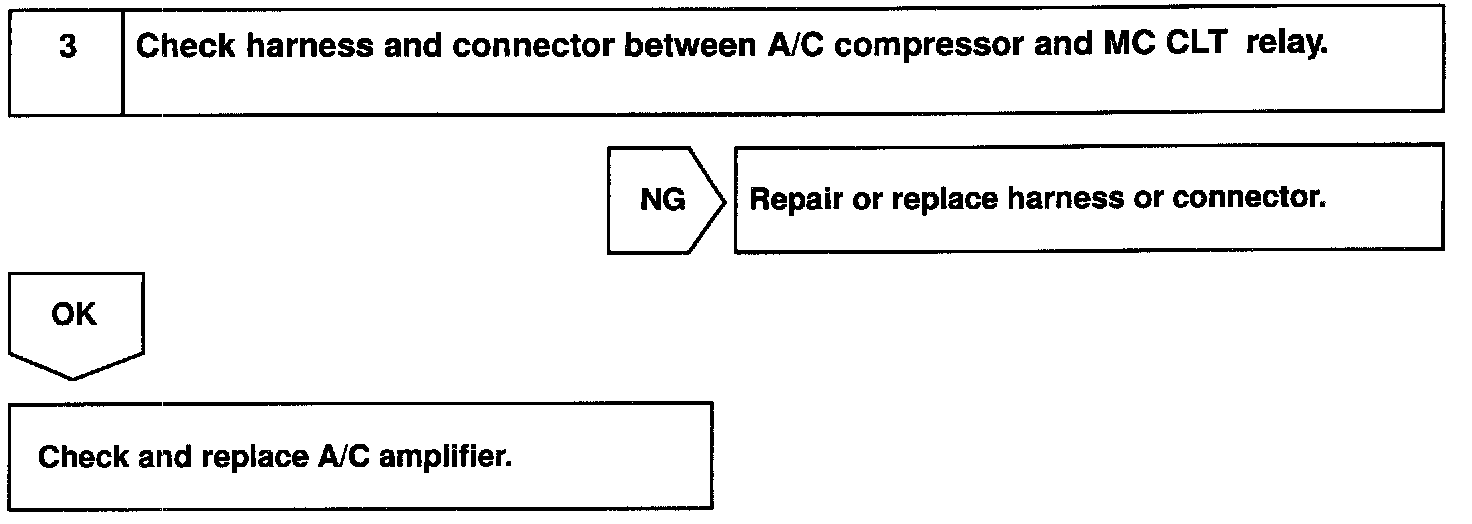

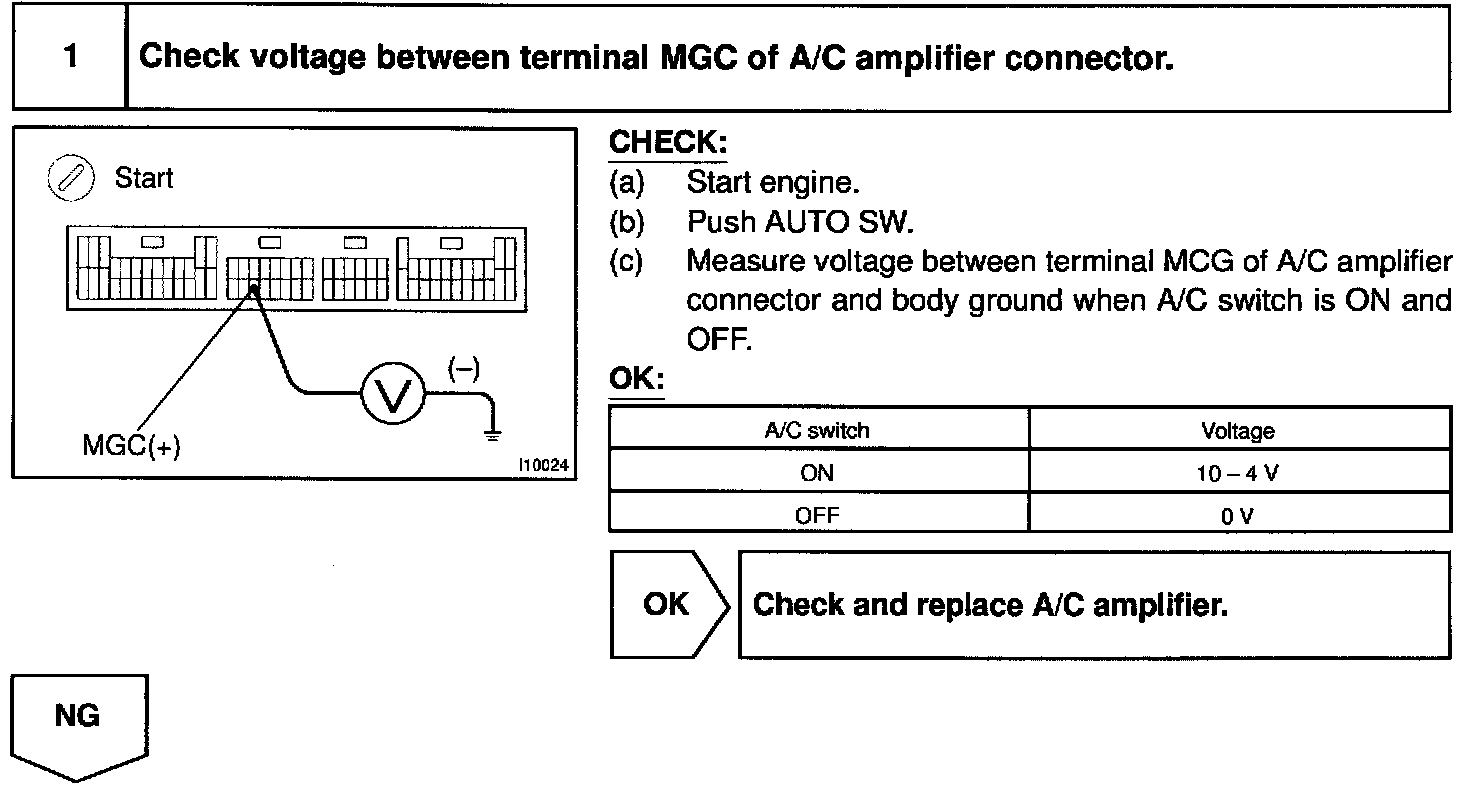

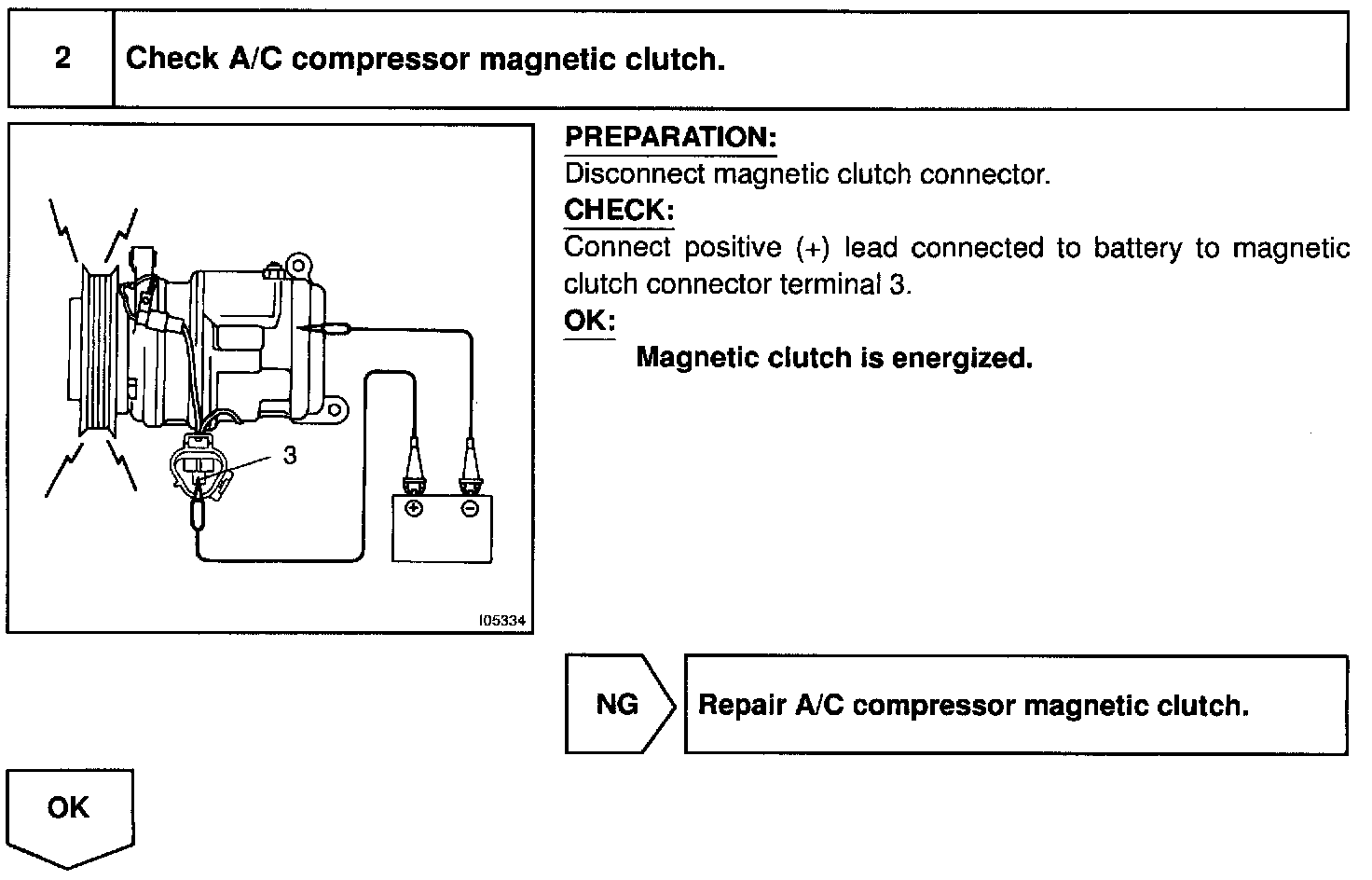

INSPECTION PROCEDURE
A/C amplifier switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.
WIRING DIAGRAM
INSPECTION PROCEDURE
