Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSOR

a. Remove the V-bank cover.
b. Disconnect the camshaft position sensor connector.

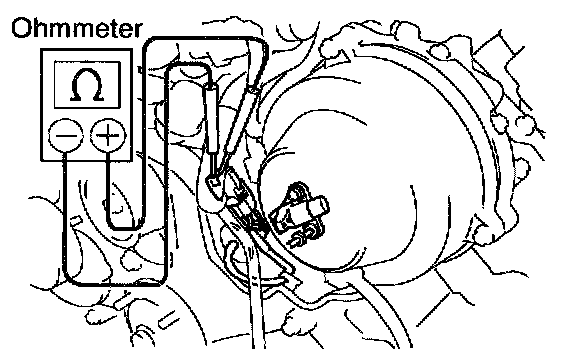

c. Using an ohmmeter, measure the resistance between terminals.

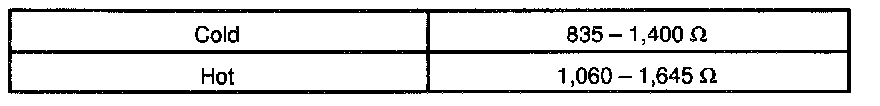

Resistance:

If the resistance is not as specified, replace the camshaft position sensor.

d. Reconnect the camshaft position sensor connector.
e. Reinstall the V-bank cover.
