Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR

a. Remove the crankshaft position sensor.

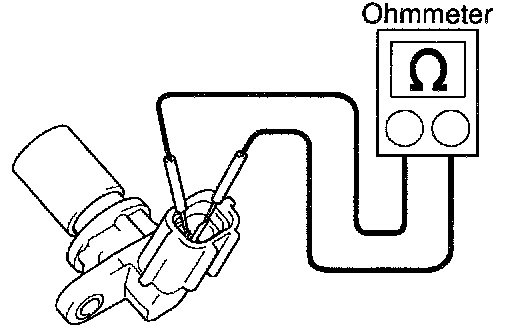

b. Using an ohmmeter, measure the resistance between the terminals.

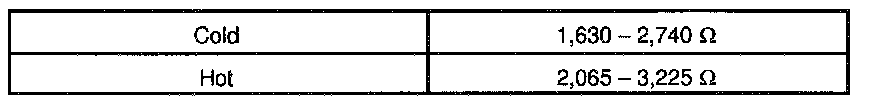

Resistance:

If the resistance is not as specified, replace the crankshaft position sensor.

c. Reinstall the crankshaft position sensor.
