Park/Neutral Position Switch Circuit

CIRCUIT DESCRIPTION
The park/neutral position switch detects the shift lever position P and sends signals to the Body ECU.

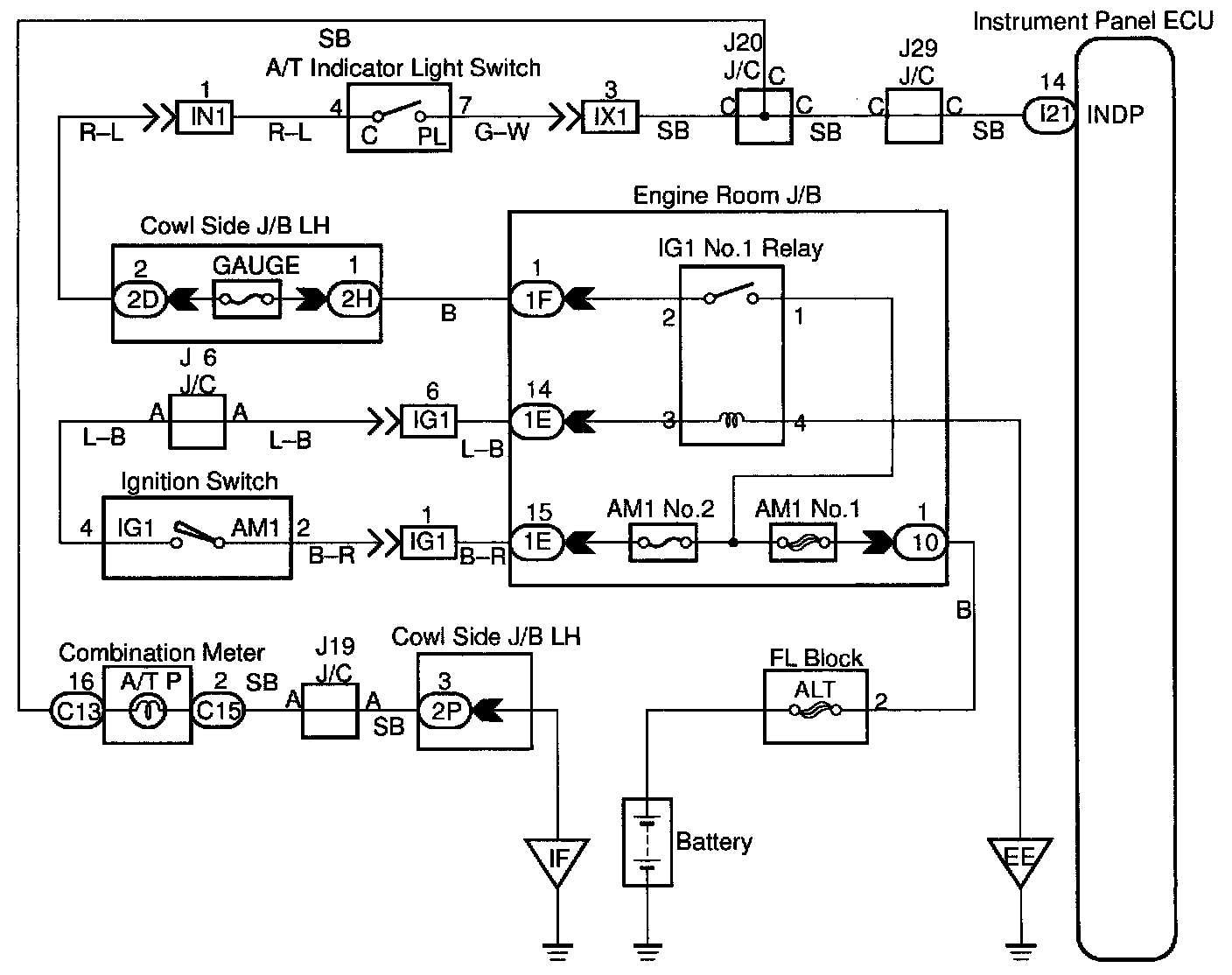

WIRING DIAGRAM

Step 1:

Step 2:

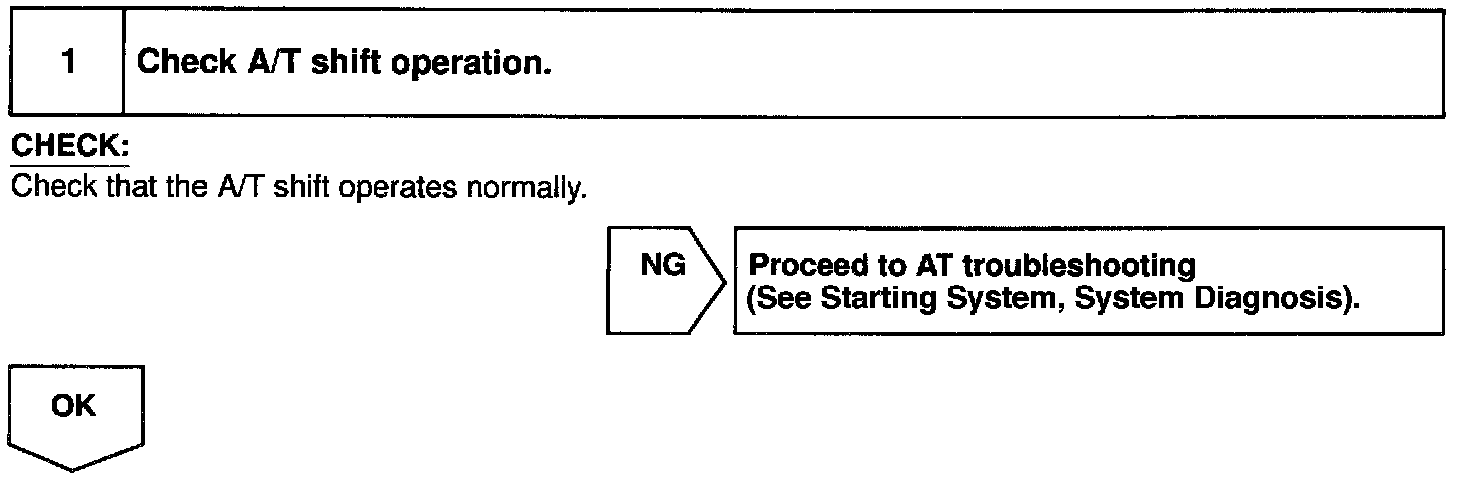

INSPECTION PROCEDURE
