Stop Light Switch Circuit

CIRCUIT DESCRIPTION
The Body ECU is detecting the condition of the stop light switch.

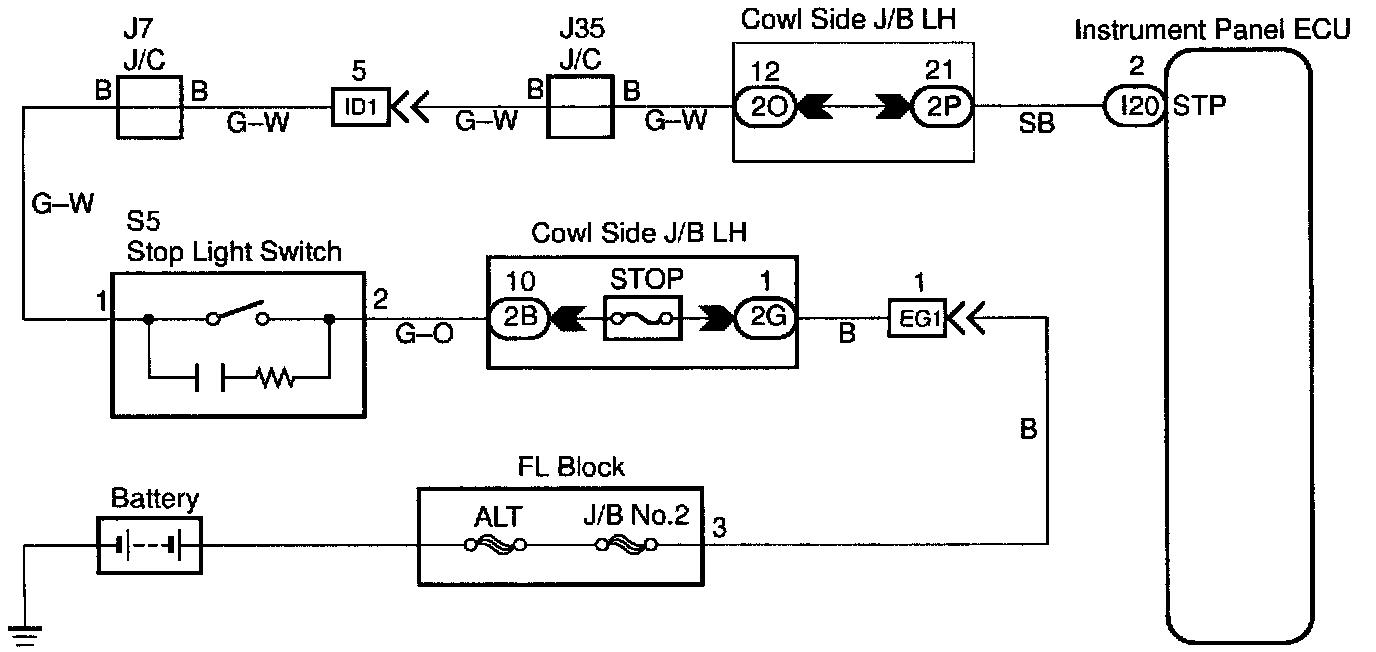

WIRING DIAGRAM

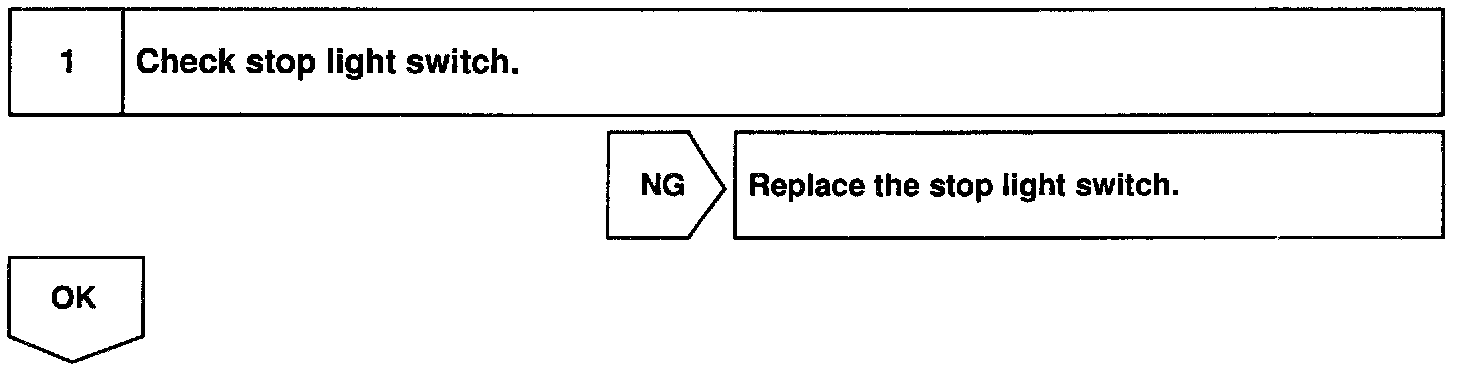

Step 1:

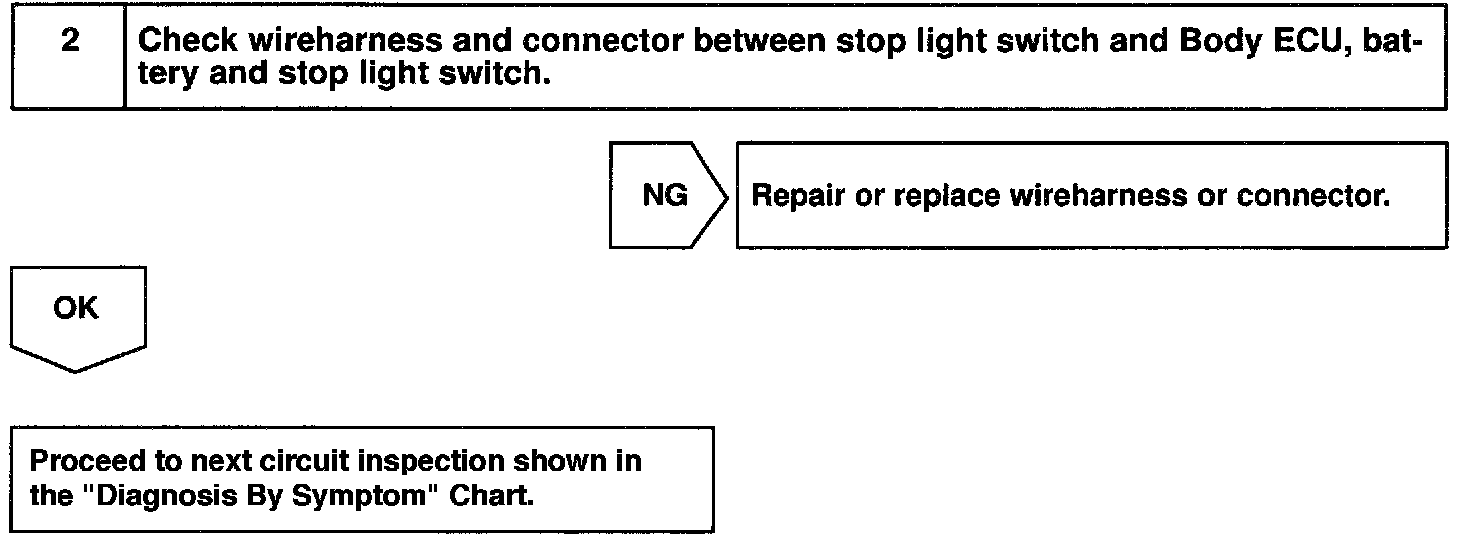

Step 2:

INSPECTION PROCEDURE
