ACC Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for A/C amplifier and servomotors, etc

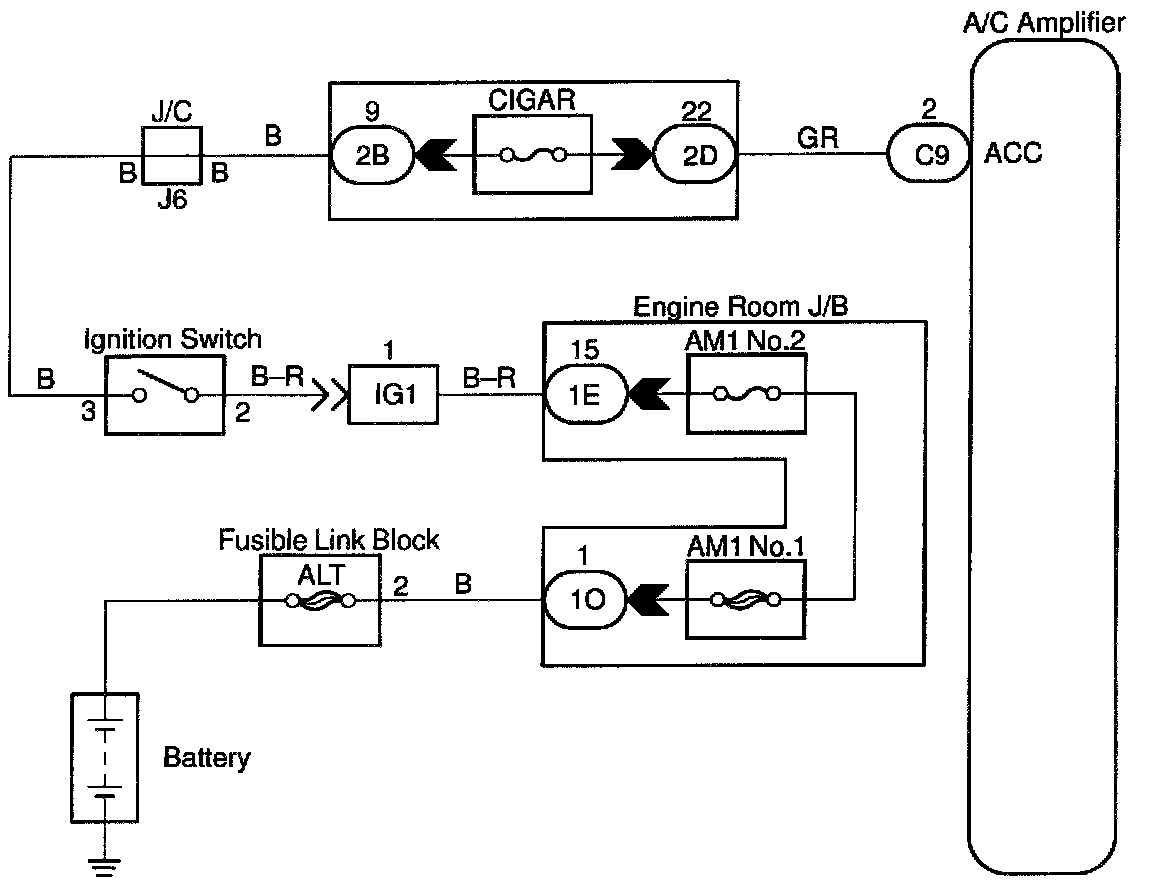

WIRING DIAGRAM

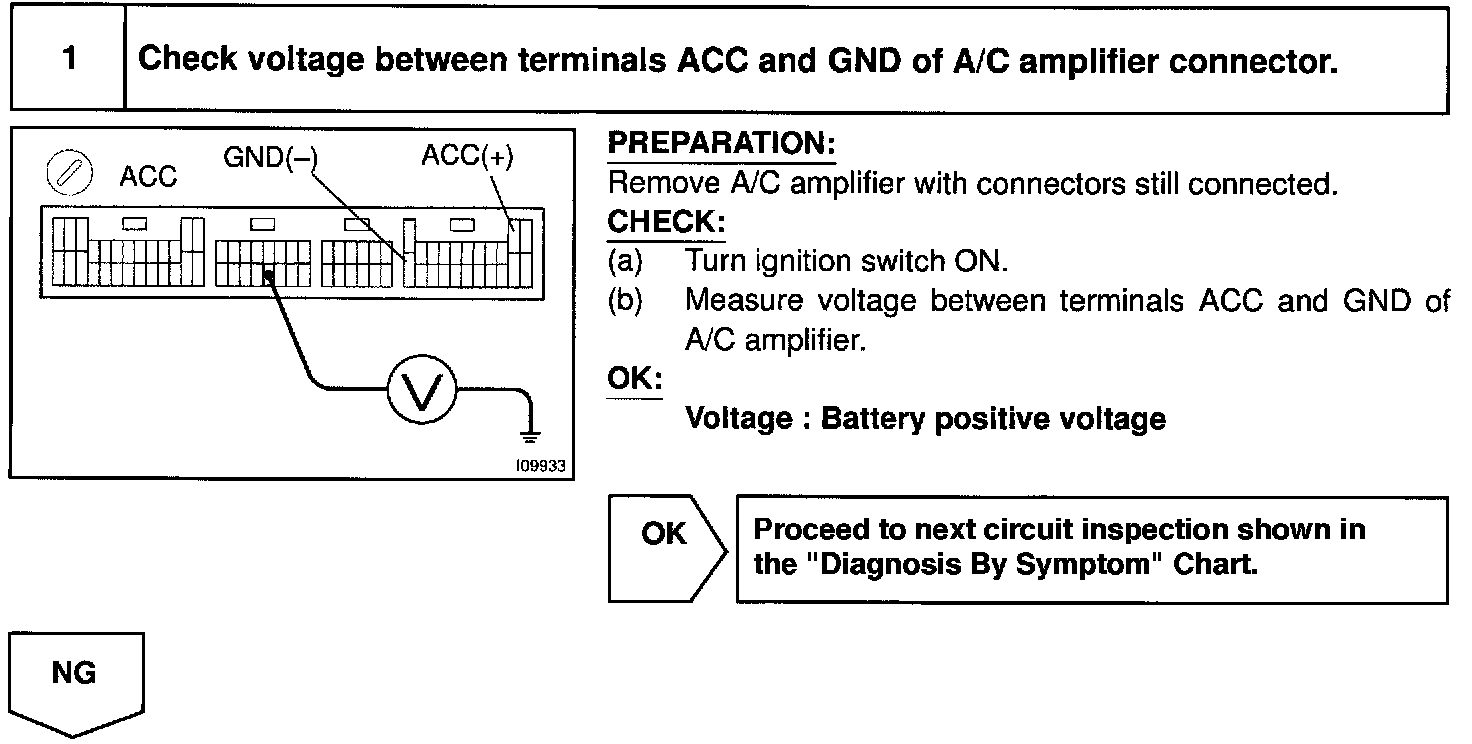

Step 1:

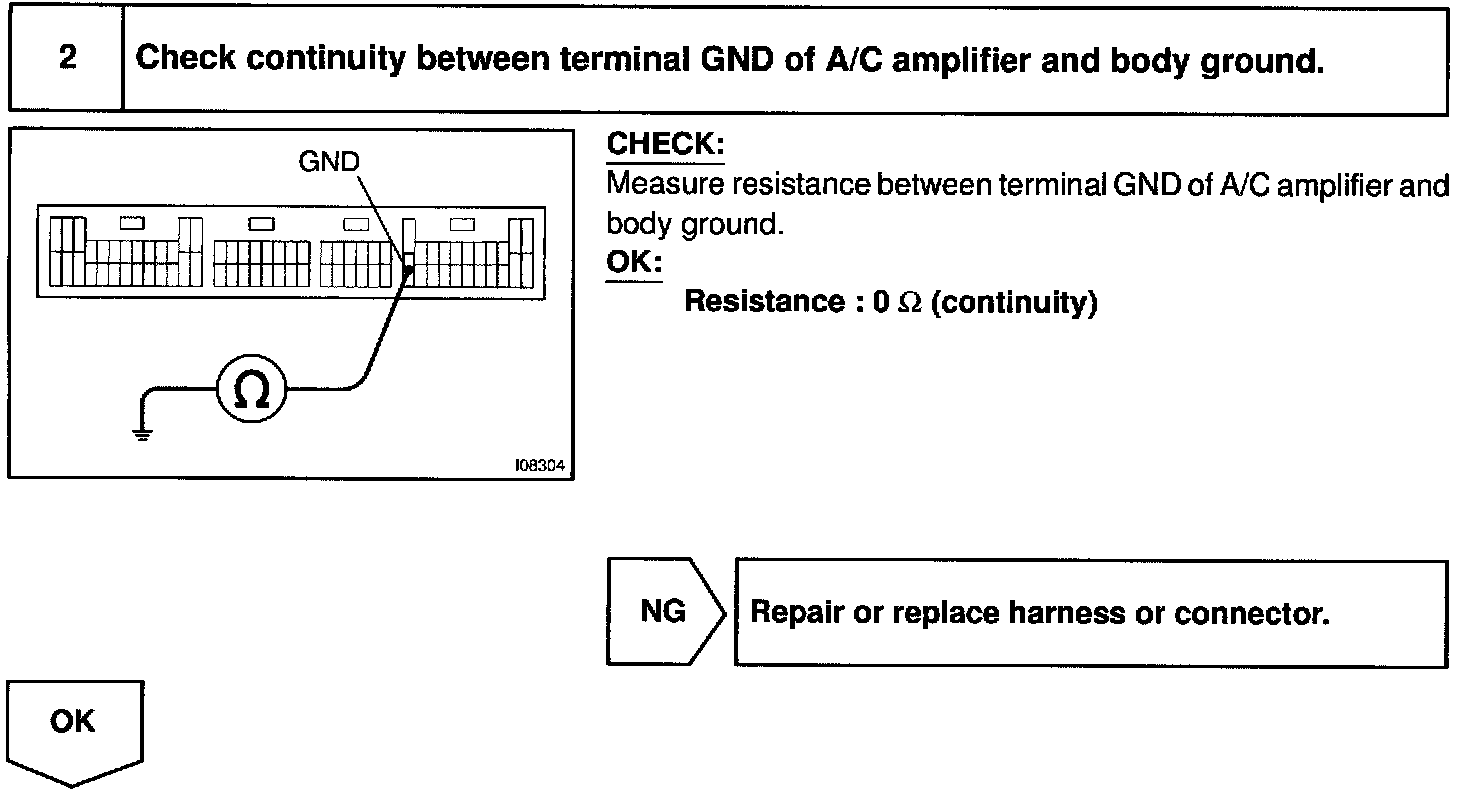

Step 2:

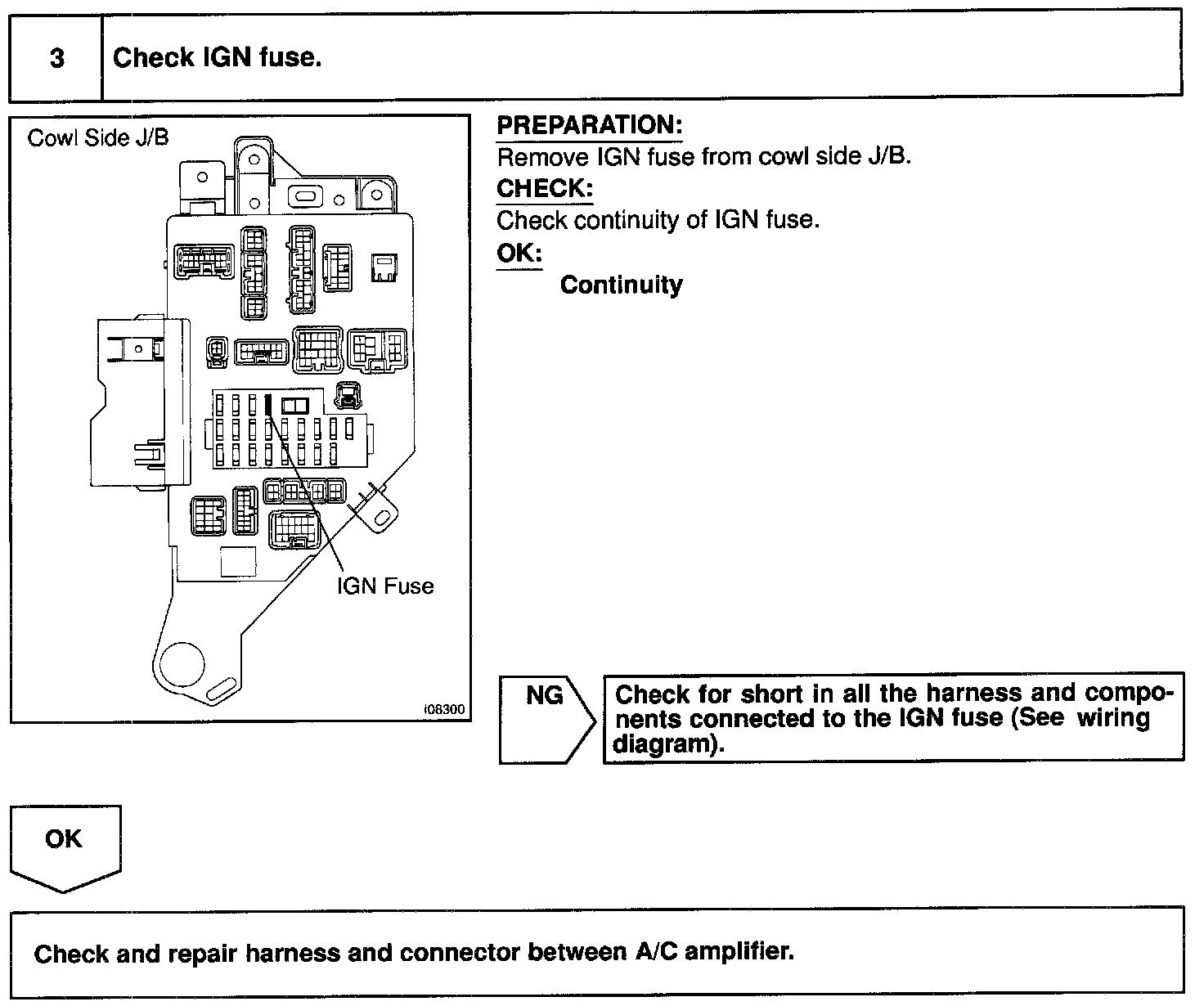

Step 3:




INSPECTION PROCEDURE
