Oil Pump, Engine

Install the oil pump with the 8 bolts. Uniformly tighten the bolts in several passes.

Torque:
15.5 Nm (160 kgf.cm, 11 ft. lbs.) for 12 mm head and 6 mm hexagon head
30.5 Nm (310 kgf.cm, 22 ft. lbs.) for 14 mm head

HINT:
^ Use a 6 mm hexagon wrench for the hexagon head bolt.

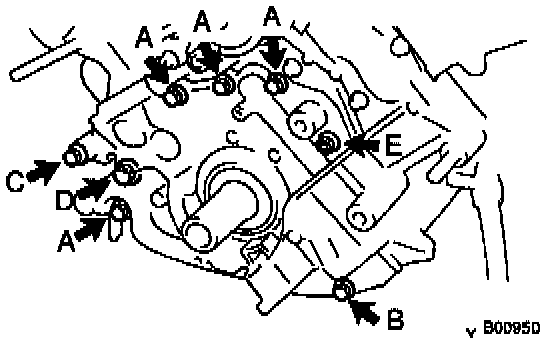

^ Each bolt length is indicated in the illustration.

Bolt length:
35 mm (1.38 inch) for A of 12 mm head
50 mm (1.97 inch) for B of 12 mm head
106 mm (4.17 inch) for C of 12 mm head
40 mm (1.57 inch) for D of 14 mm head
30 mm (1.18 inch) for E of 6 mm hexagon head
