Steering Column Control Module: Testing and Inspection

CIRCUIT DESCRIPTION
The ECU power source supplies power to the CPU and sensors, etc. power is supplied to the ECU even when the ignition switch is in lock position.




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

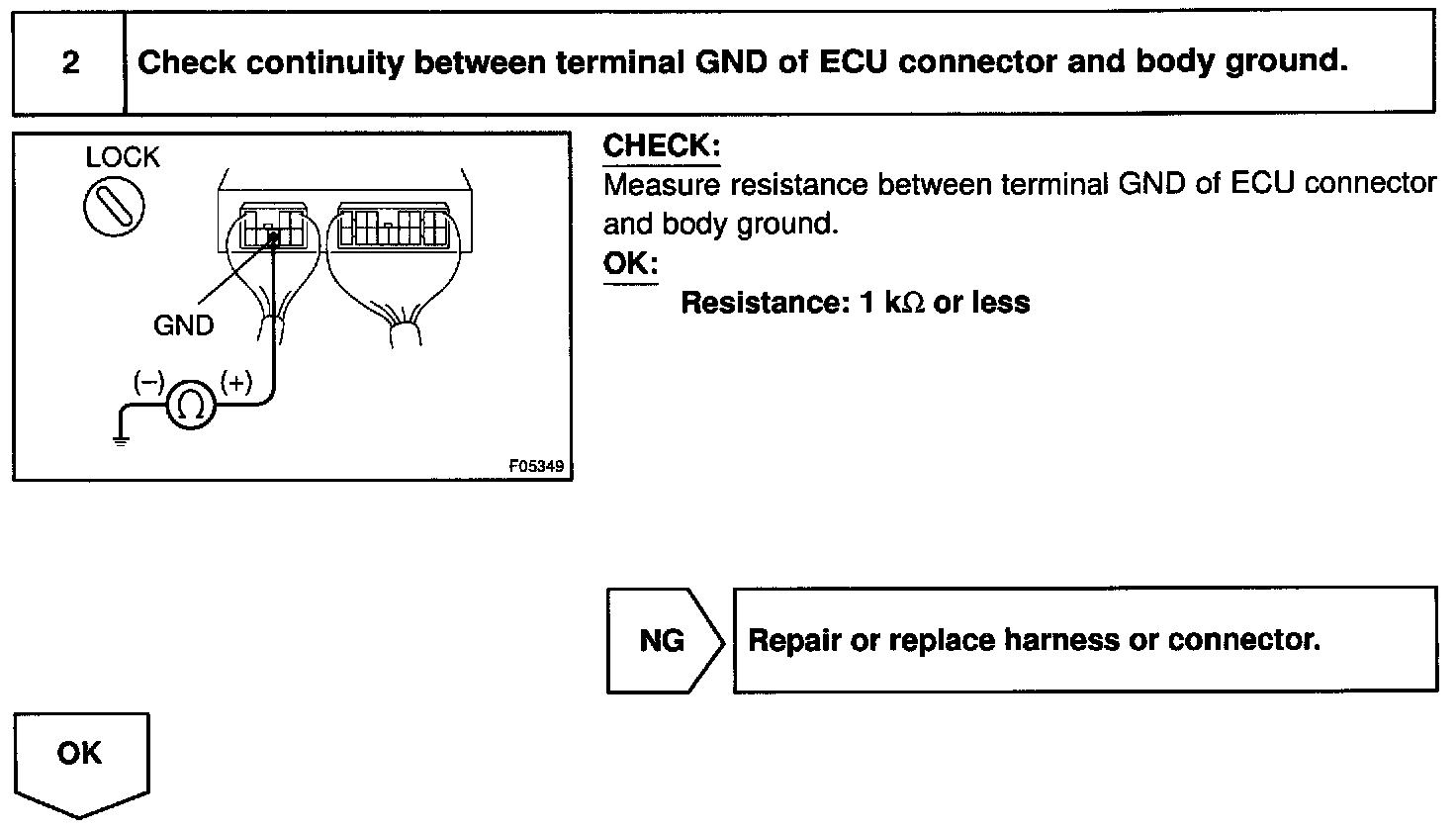

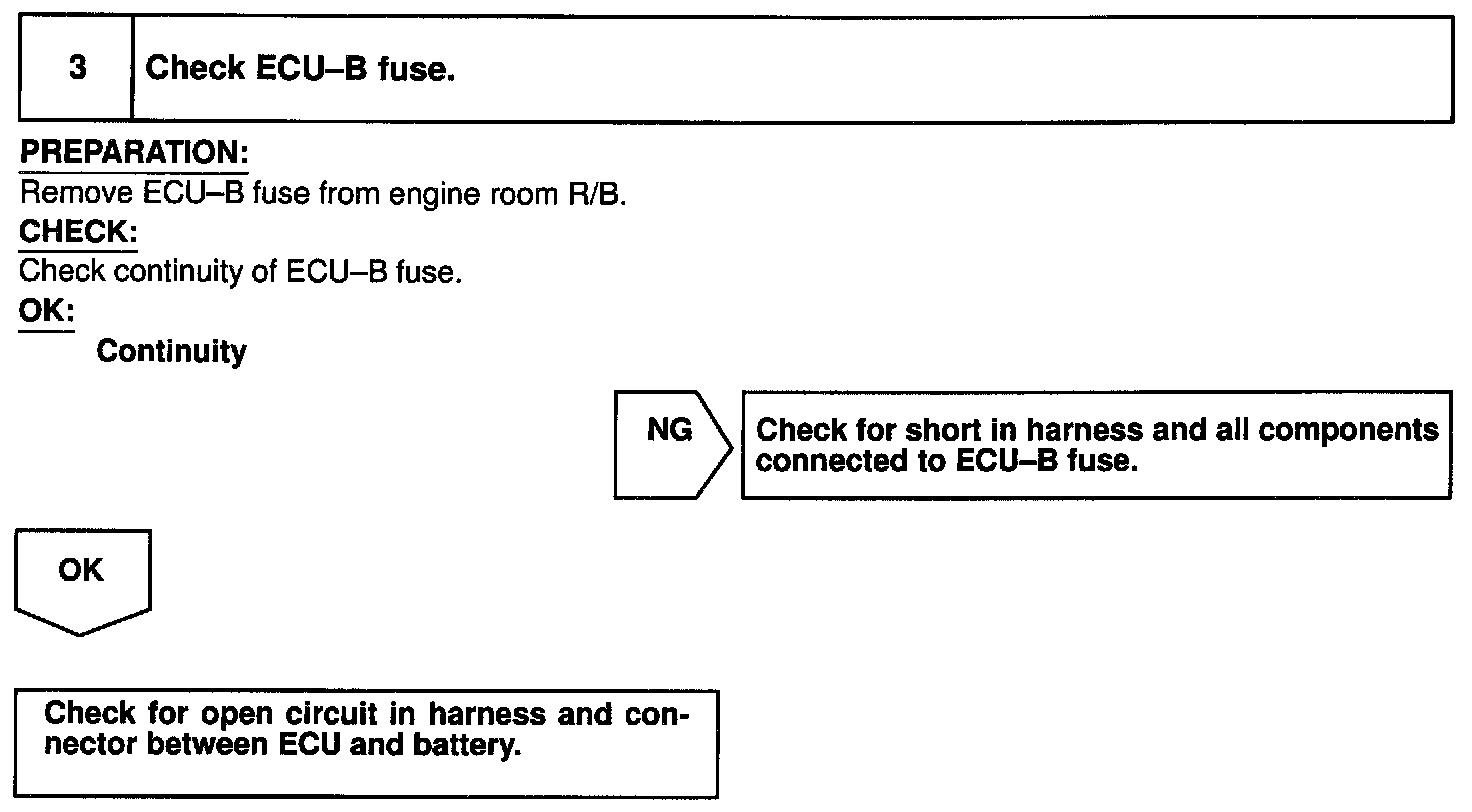

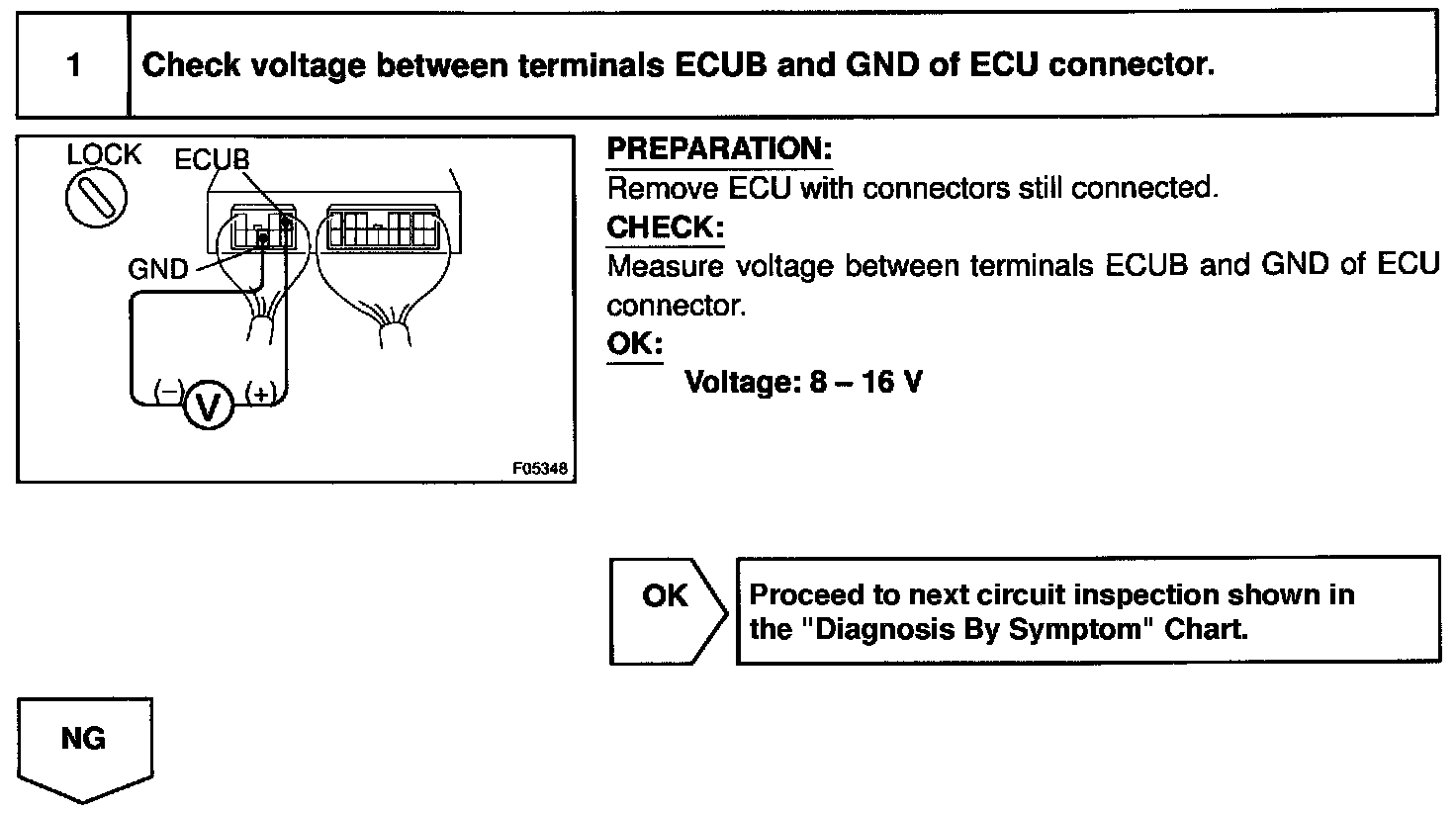

INSPECTION PROCEDURE
