Cruise Control Switch: Testing and Inspection

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

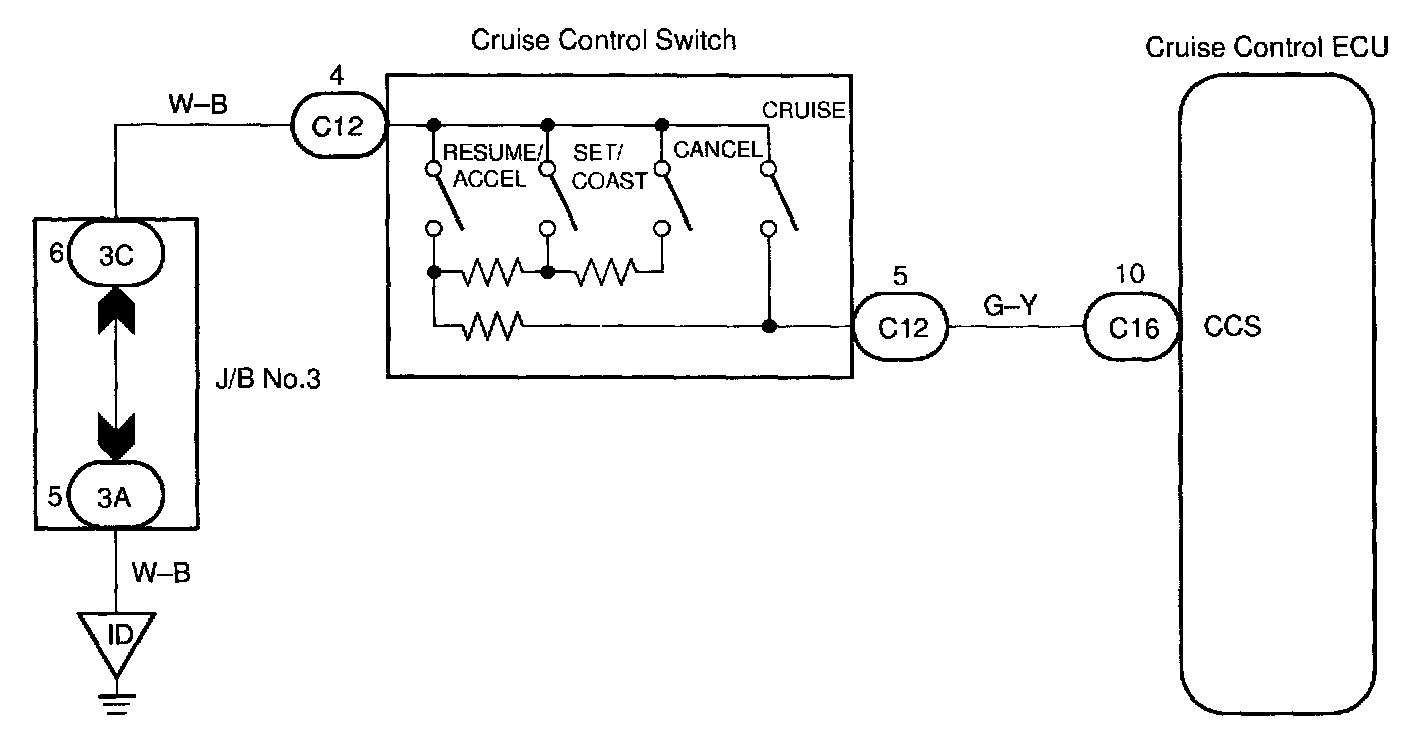

WIRING DIAGRAM

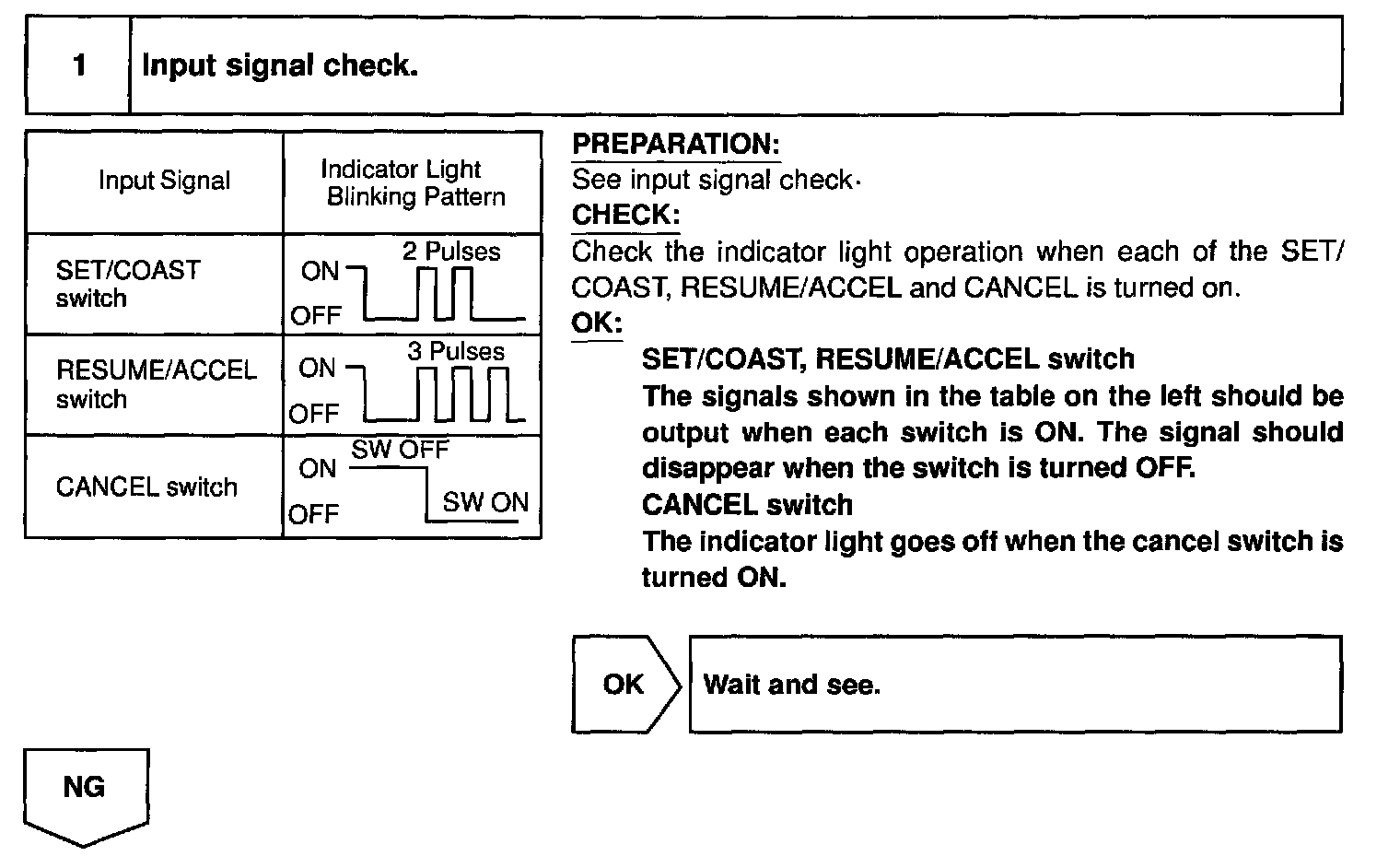

Step 1:

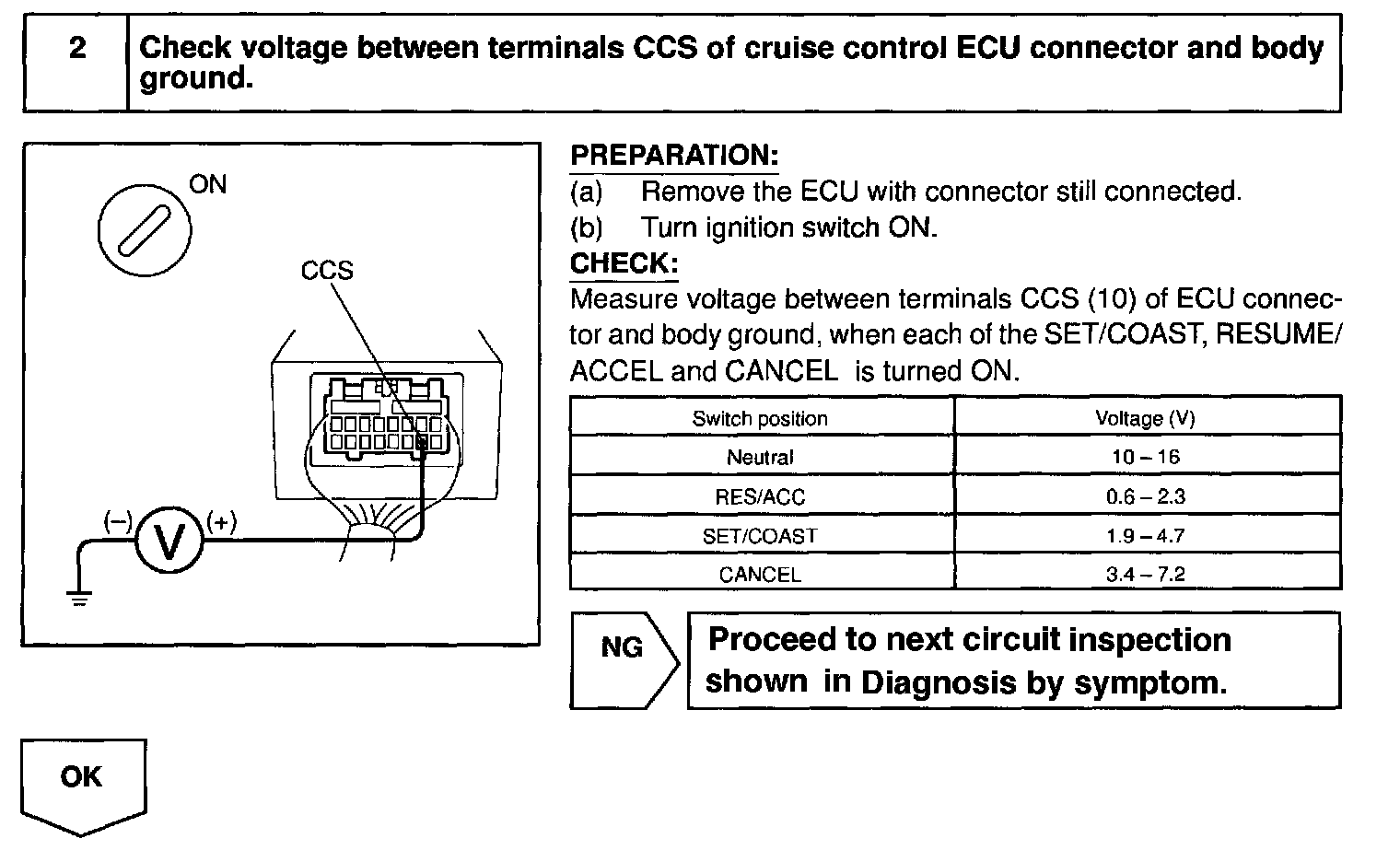

Step 2:

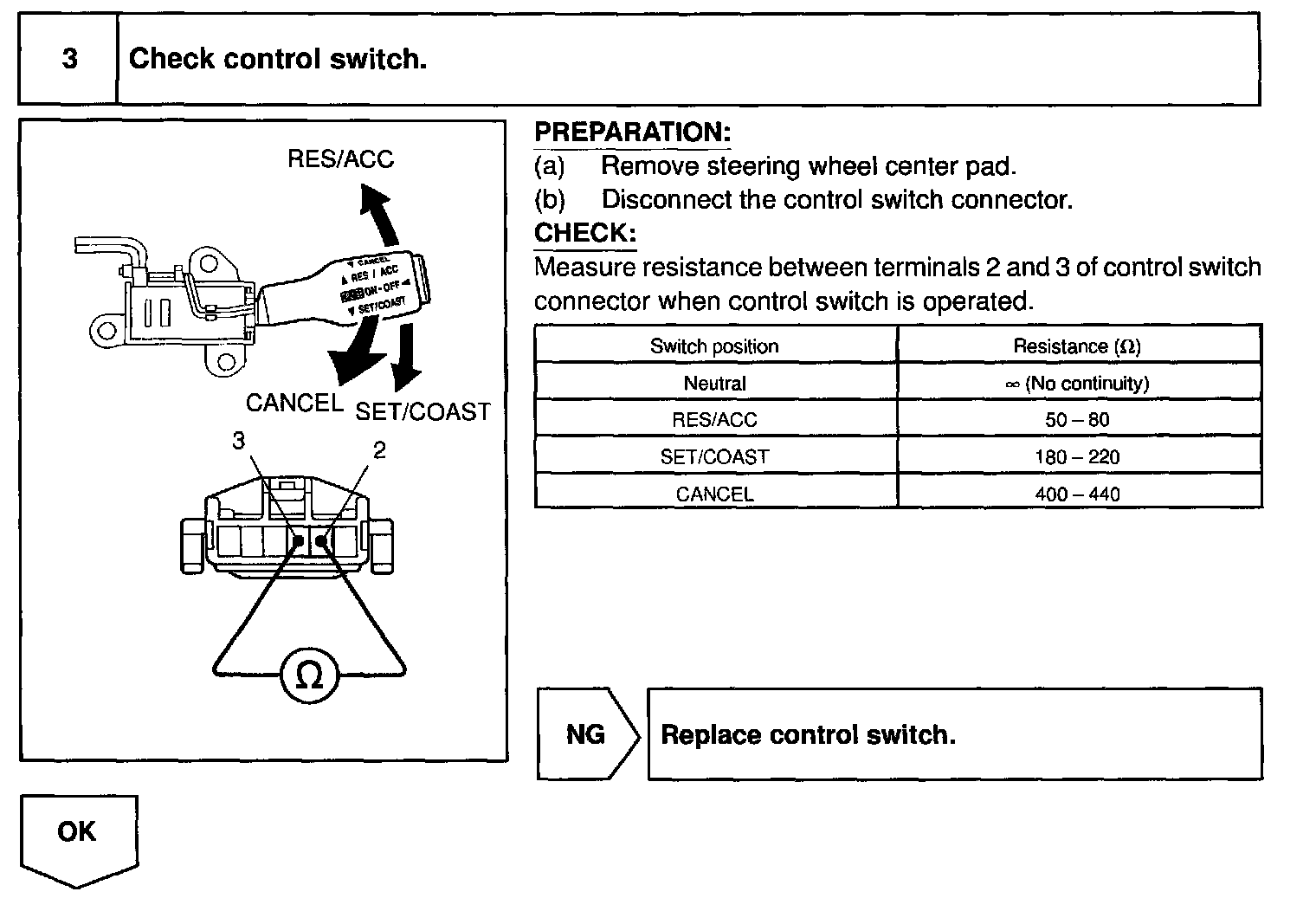

Step 3:

Step 4:

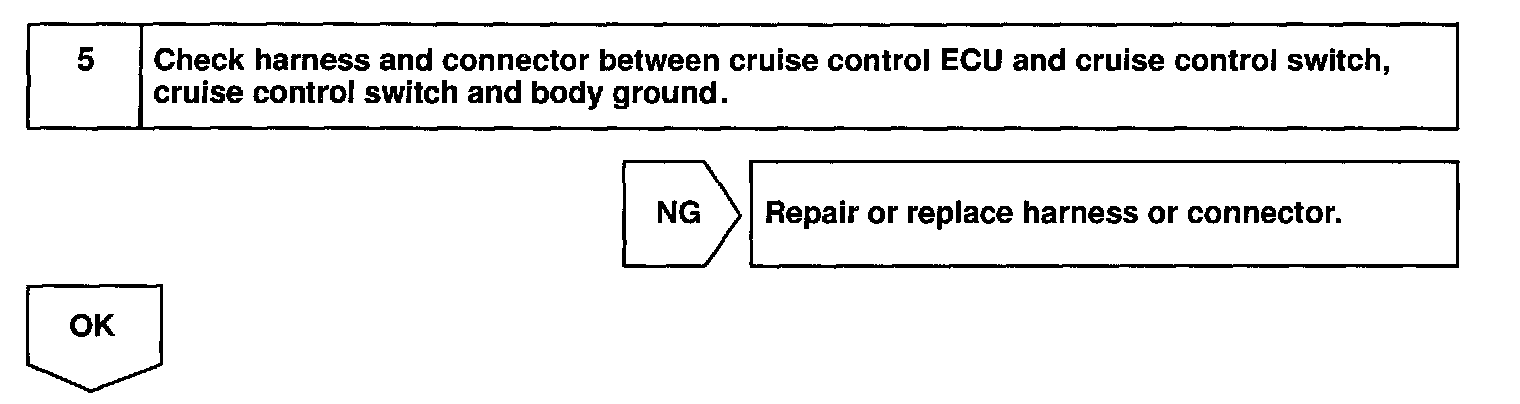

Step 5:

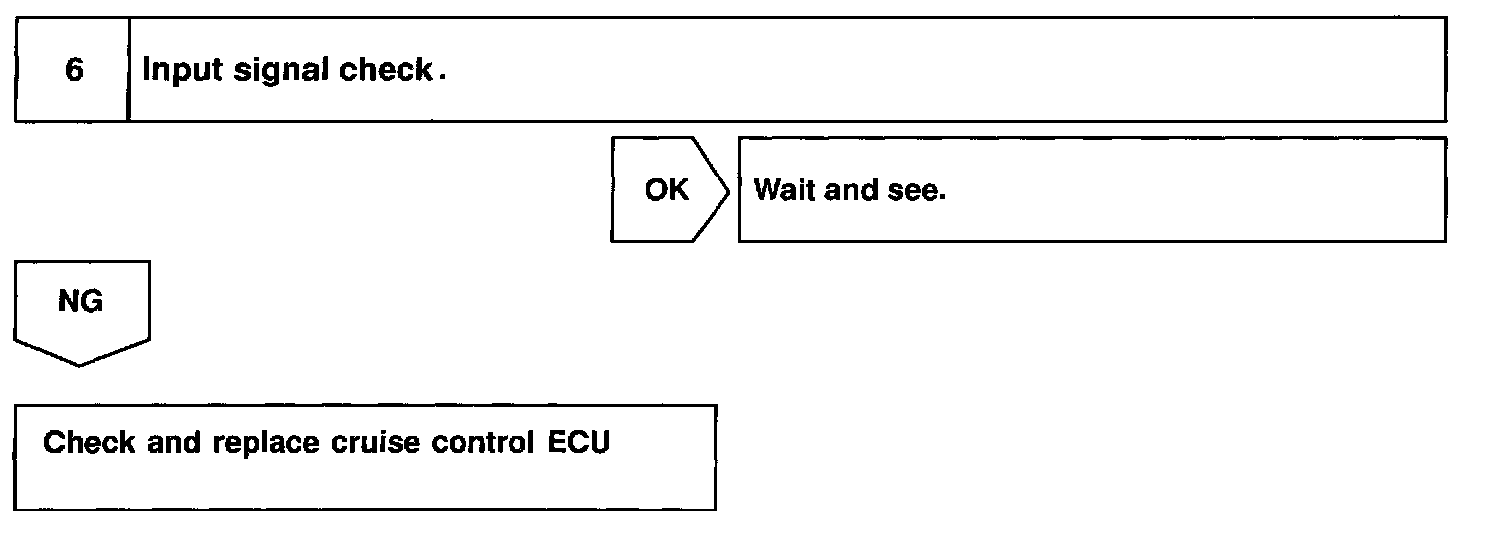

Step 6:

INSPECTION PROCEDURE
