Diagnosis Circuit
CIRCUIT DESCRIPTIONThis circuit sends a signal to the ECU that DTC output is required.

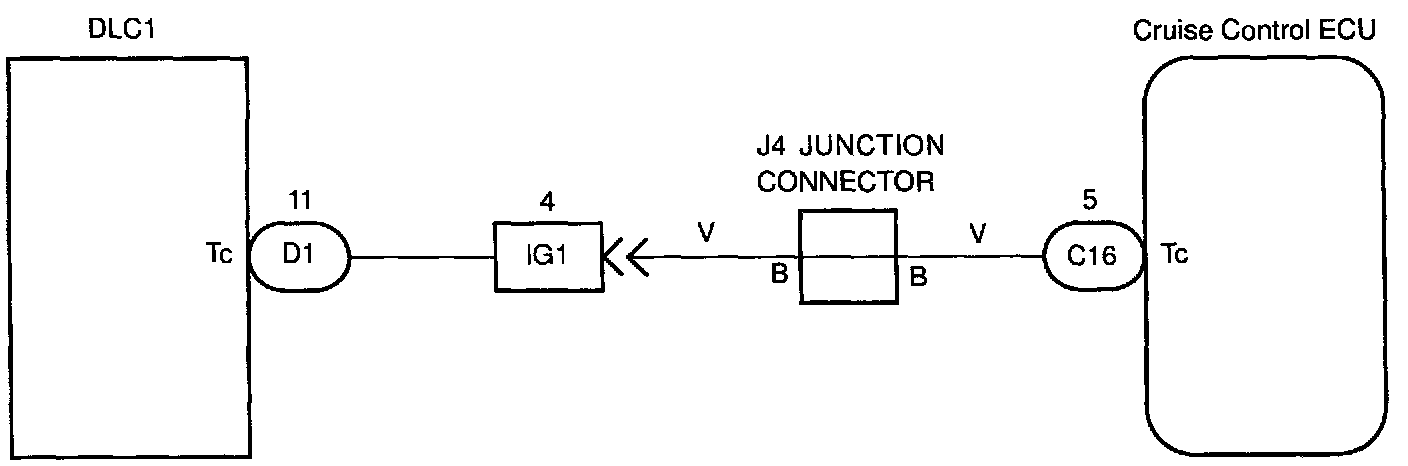

WIRING DIAGRAM

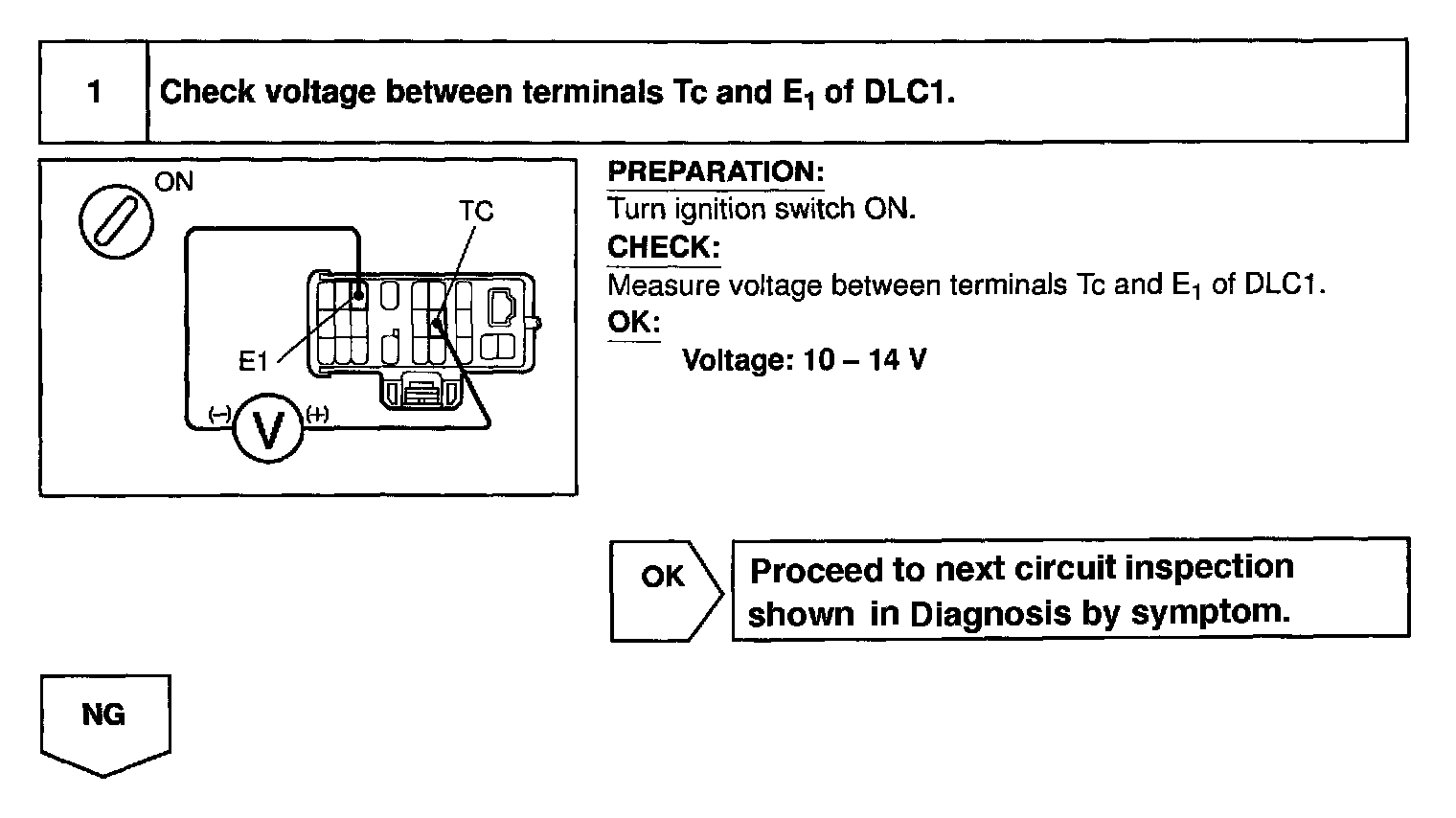

Step 1:

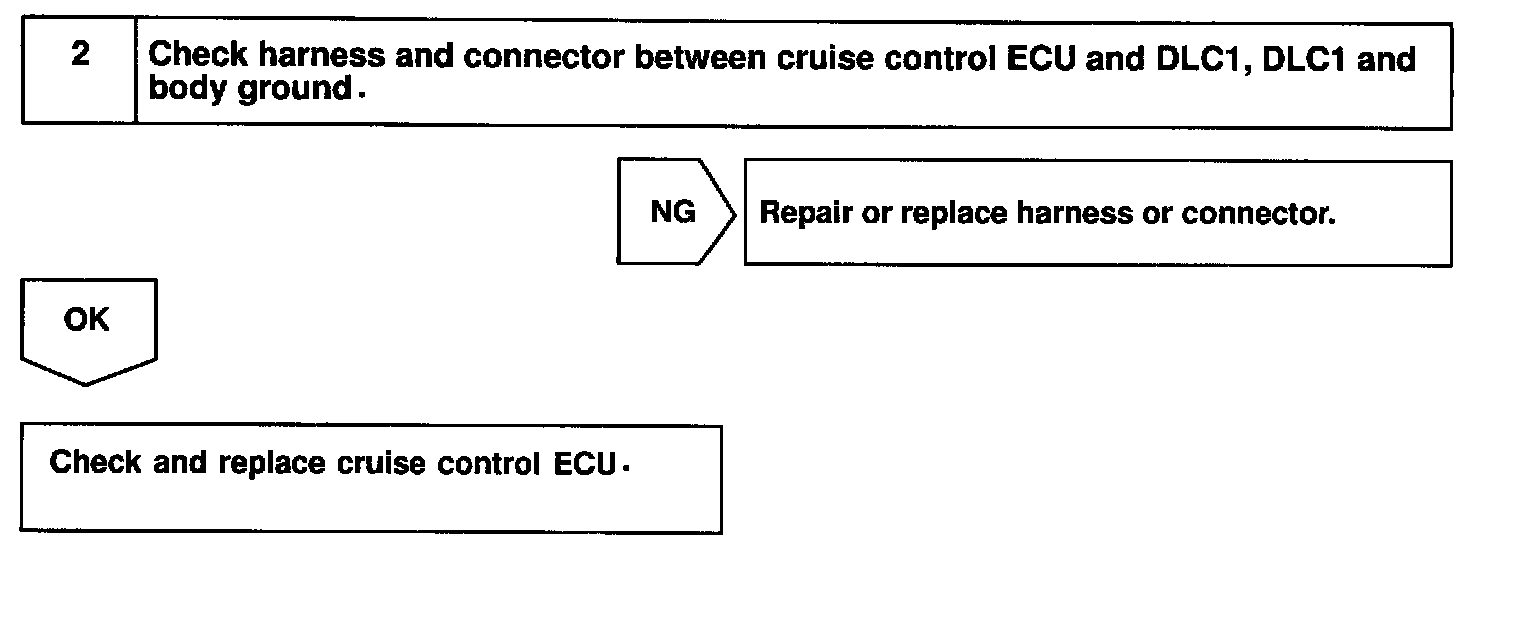

Step 2:
INSPECTION PROCEDURE
This circuit sends a signal to the ECU that DTC output is required.
WIRING DIAGRAM
INSPECTION PROCEDURE
