Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1999
>>
RAV4 2-Door 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

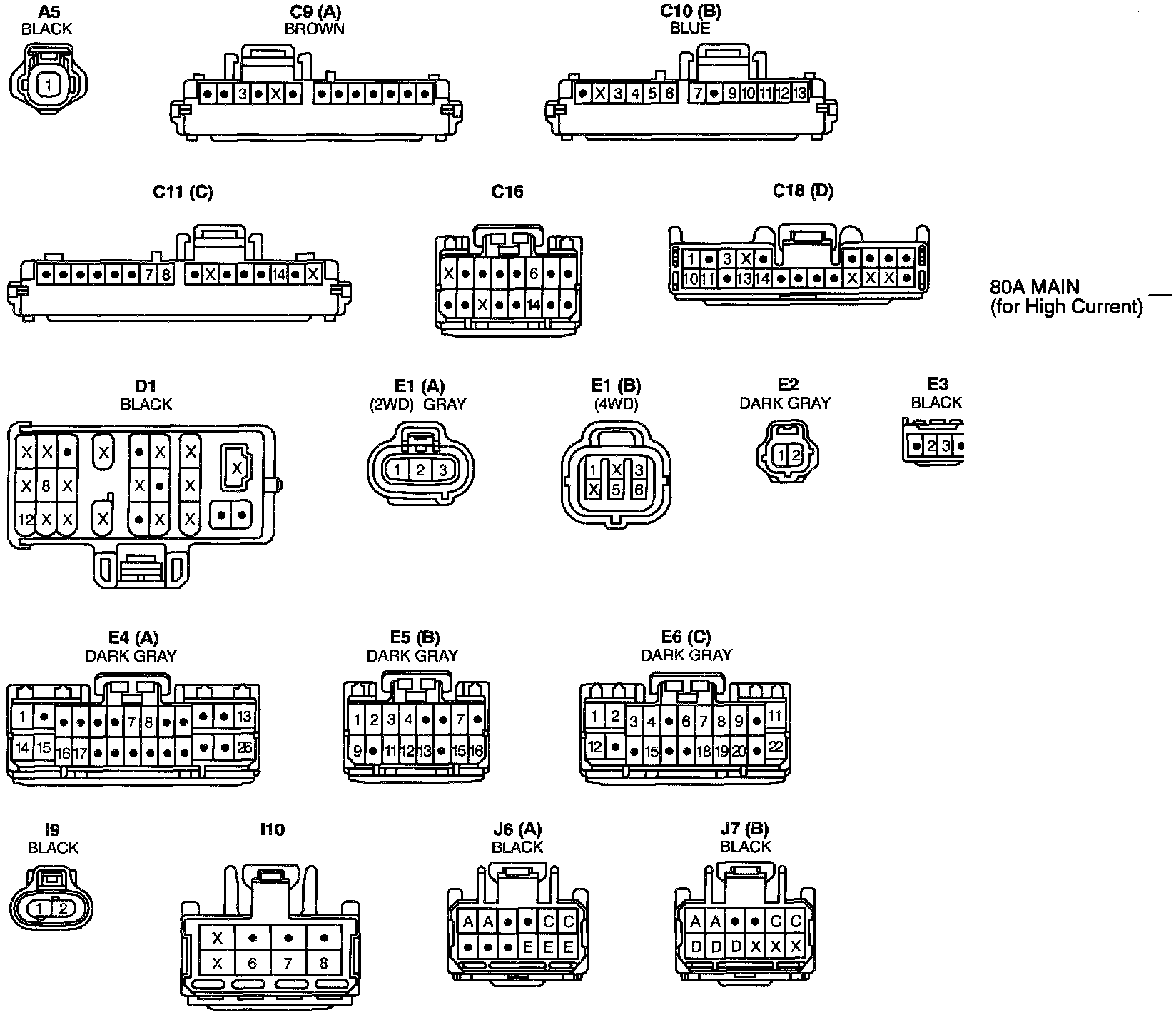

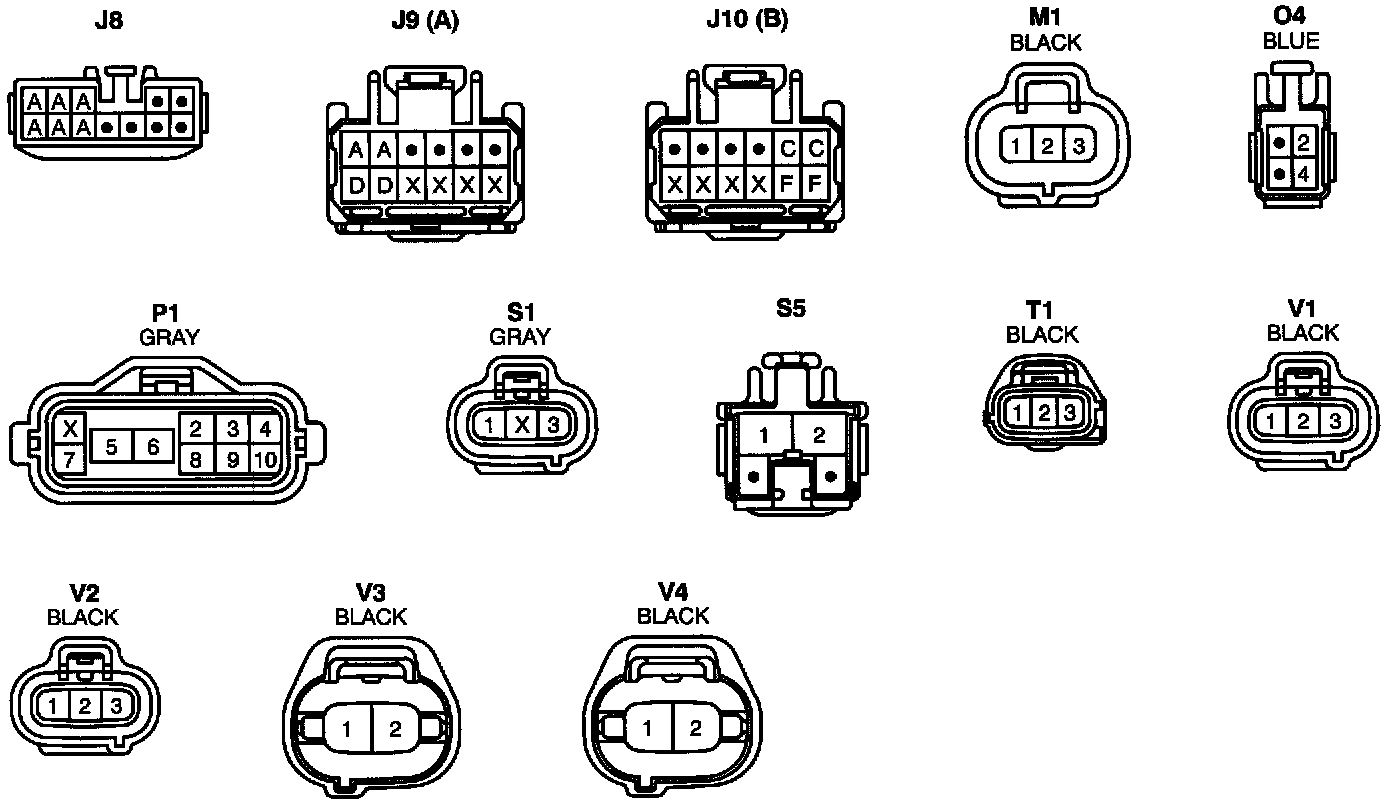

Connector Views
>>
Transmission Control Systems
Transmission Control Systems
` 55:
