System Diagram
System Diagram
COMPONENT PARTS

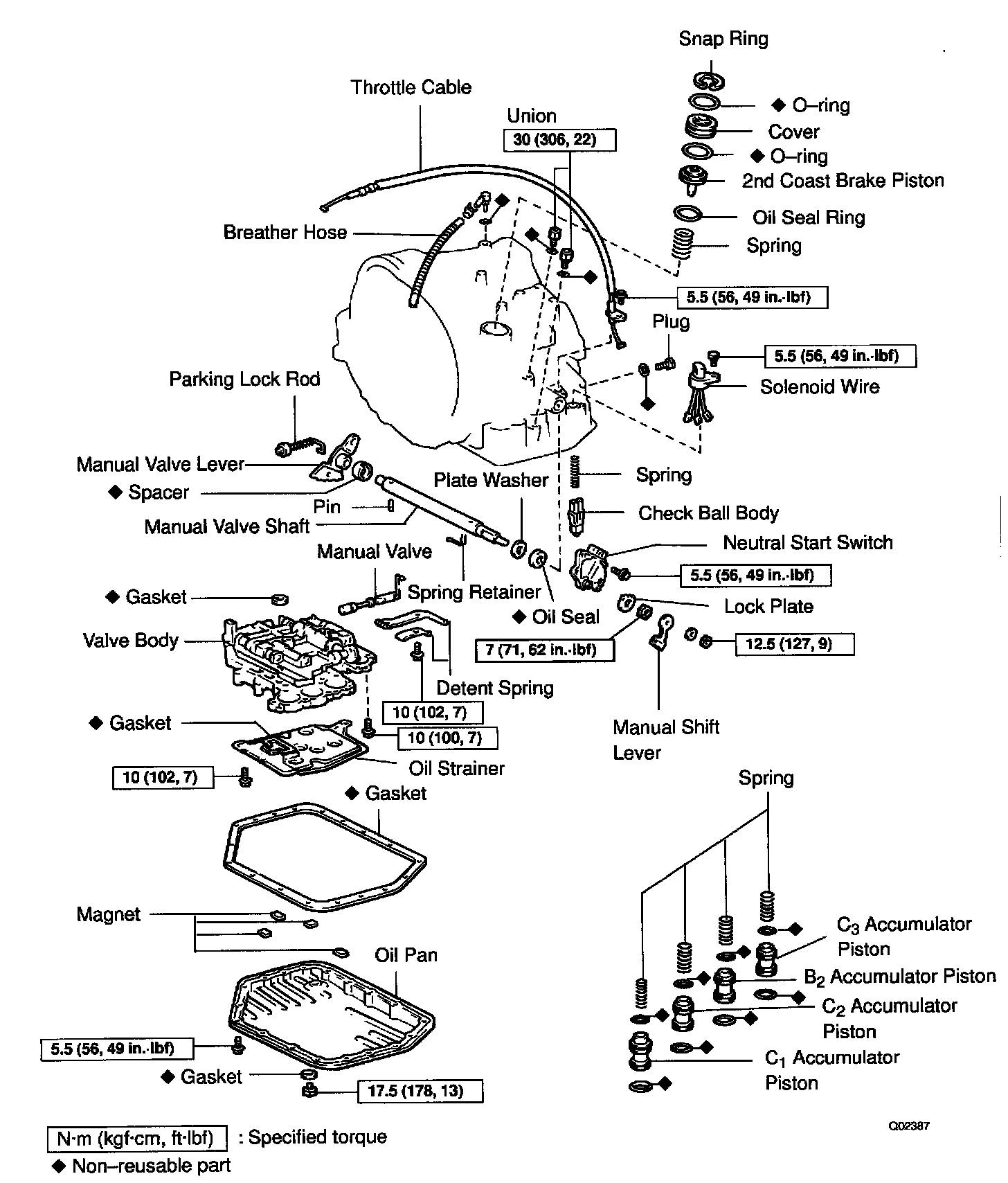

External Components And Valve Body:

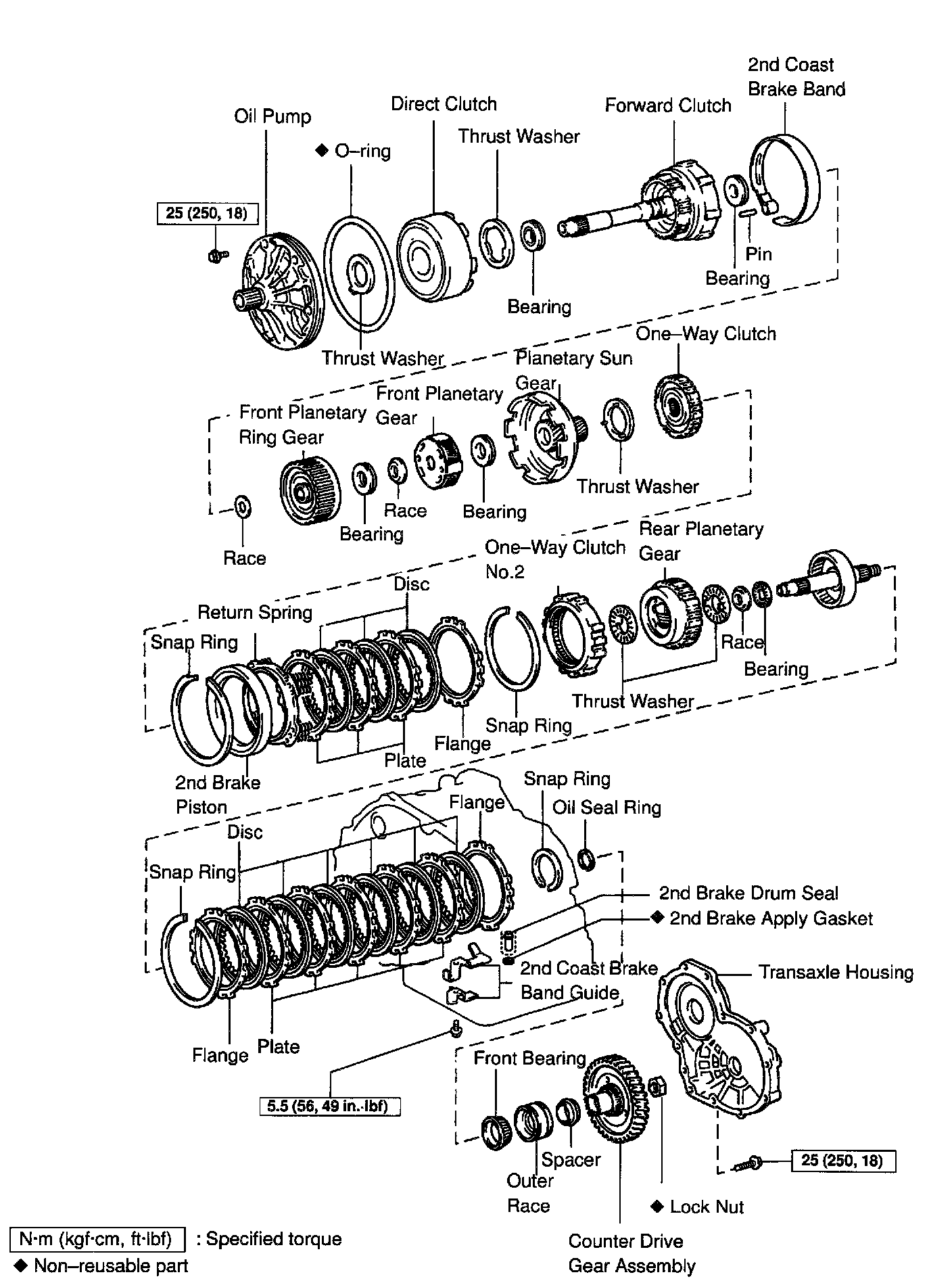

Brakes, Clutches And Counter Drive Gear Assy.:

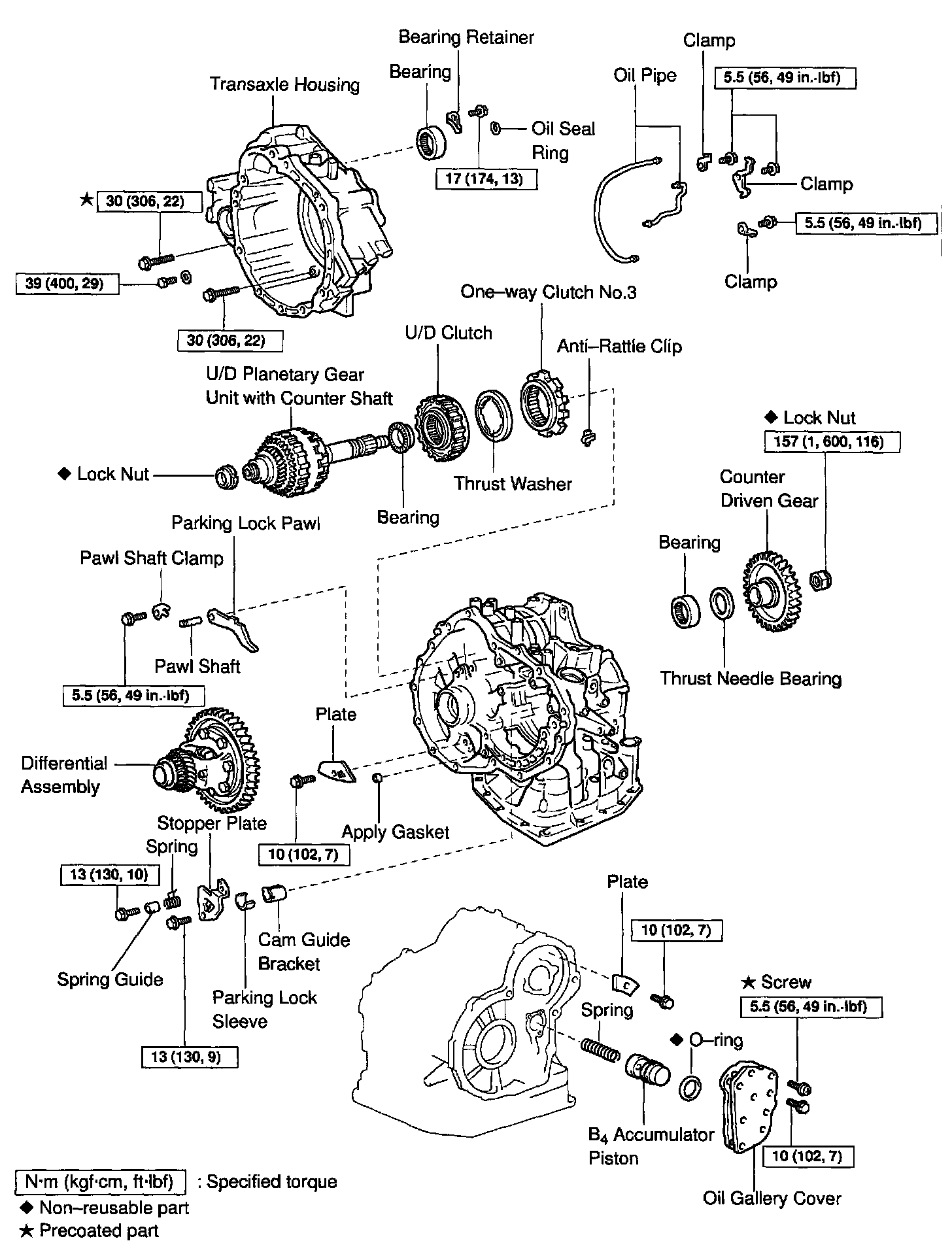

U/D Components, Differential Assy. and Counter Driven Gear:
