Steering Gear

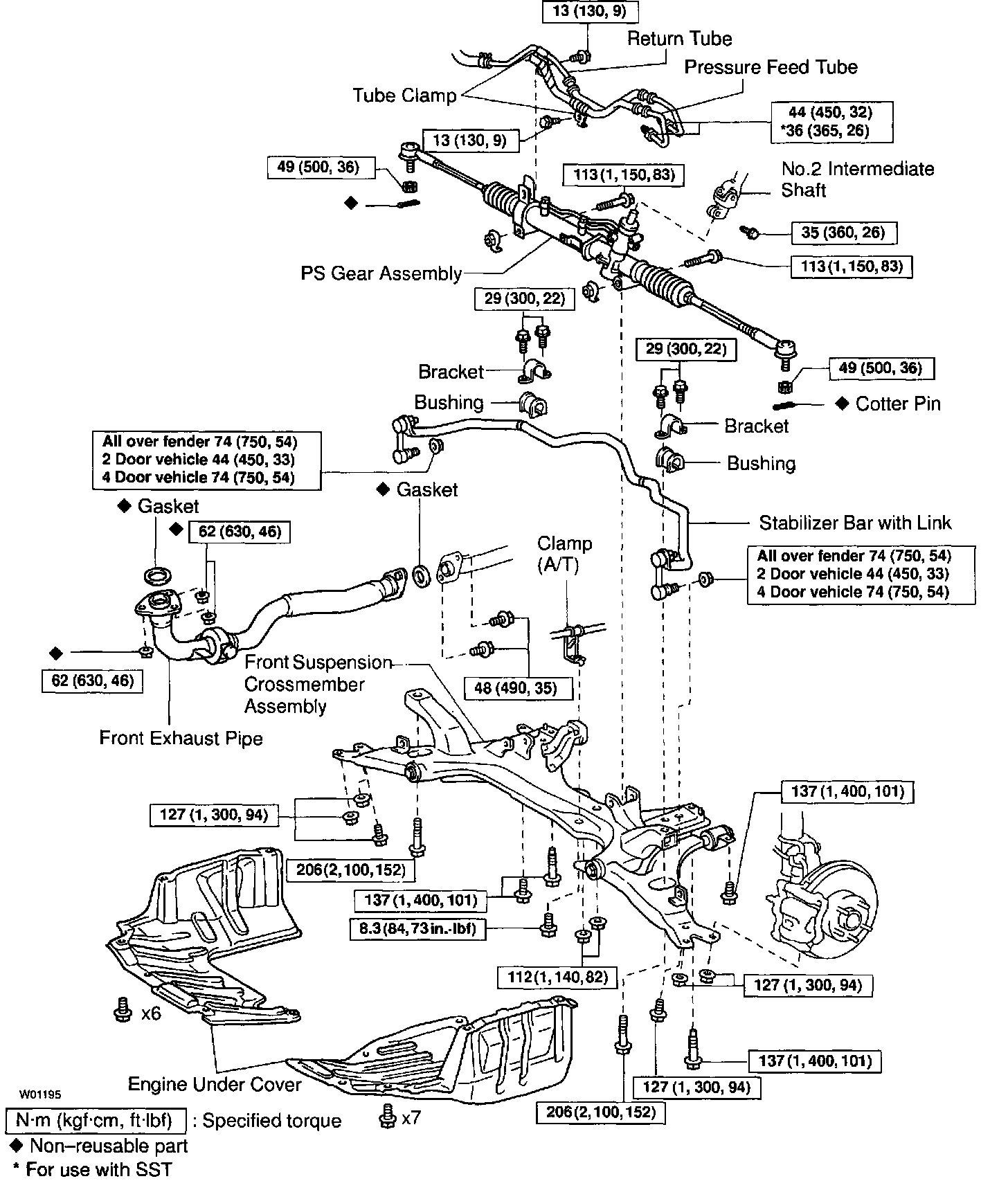

POWER STEERING GEAR ASSEMBLY AND RELATED COMPONENTS

CONTROL VALVE ASSEMBLY AND RELATED COMPONENTS

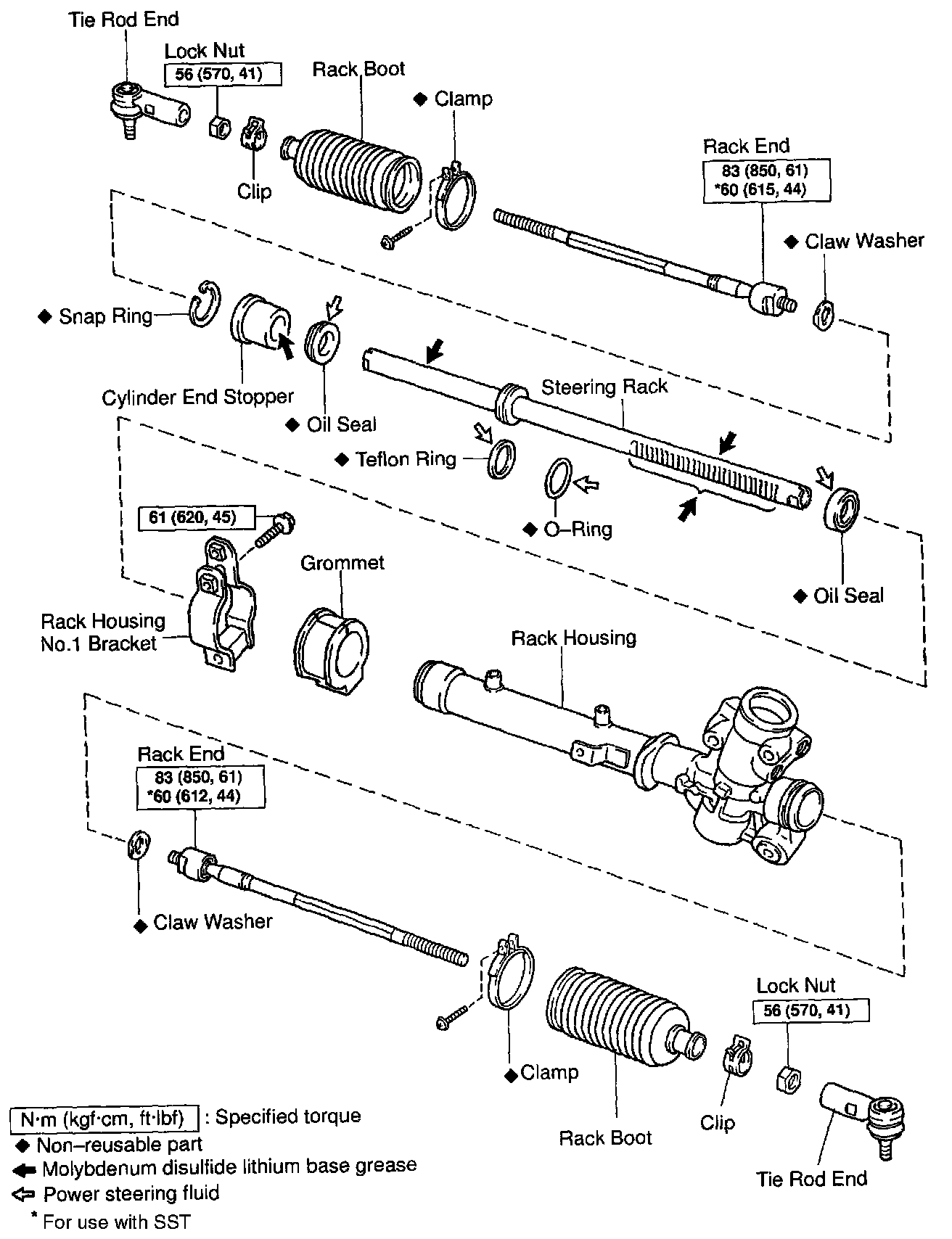

RACK HOUSING, STEERING RACK AND RACK END
