Rear

INSPECTION
1. MEASURE VEHICLE HEIGHT
2. INSTALL CAMBER-CASTER-KINGPIN GAUGE OR ONTO WHEEL ALIGNMENT TESTER
Follow the specifications of the equipment manufacturer.

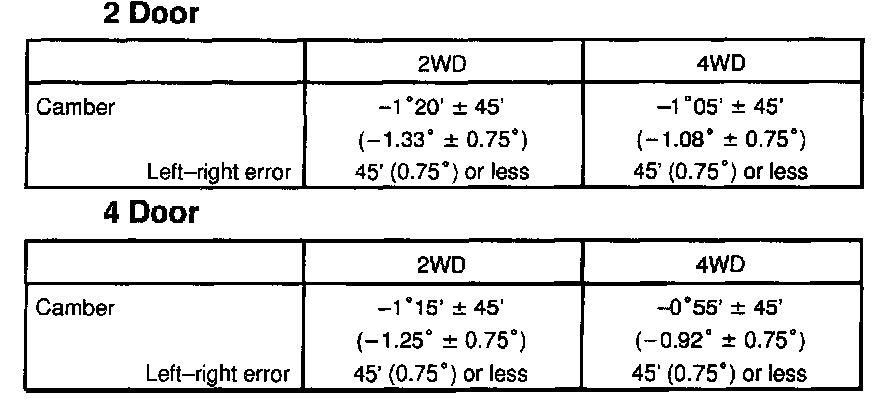

3. INSPECT CAMBER
If the camber is not within the specification, adjust it by the camber adjust cam.





Tire Size: 215/70R16:






Tire Size: 235/60R16:

Measuring Point Reference:

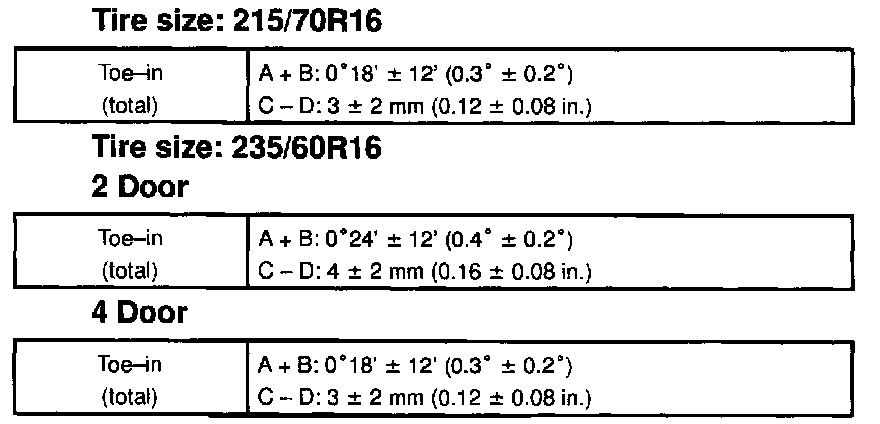

4. 2WD: INSPECT TOE-IN





5. 4WD: INSPECT TOE-IN
If the toe-in is not within the specification, adjust it by the toe-adjust cam.





6. ADJUST CAMBER
a. Loosen the camber adjust cam lock bolt.
b. Turn the camber adjust cam to adjust camber.

HINT:
^ Try to adjust the camber to the center value.
^ The camber will change about 16' (0.27°) with each graduation of the cam.
c. Torque the lock bolt.

Torque: 113 Nm (1,150 kgf-cm, 83 ft. lbs.)

7. ADJUST TOE-IN





a. Measure the distance between each wheel disc and corner of the cam bracket, then confirm that both are the same.

No.2 lower suspension arm length difference: 1 mm (0.04 inch) or less

If the left-right difference is larger than 1 mm (0.04 inch), adjust it by following the procedures below.





b. Loosen the toe-adjust cam lock bolt.
c. Turn the toe-adjust cam an equal amount to adjust toe in.

HINT:
^ Try it adjust the tie-in to the center value.
^ The toe-in will change about 2.5 mm (0.10 inch) with each graduation of the cam (both side).
d. Torque the lock bolts.

Torque: 132 Nm (1,350 kgf-cm, 97 ft. lbs.)
