Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSORS
a. Disconnect the camshaft position sensor connector.

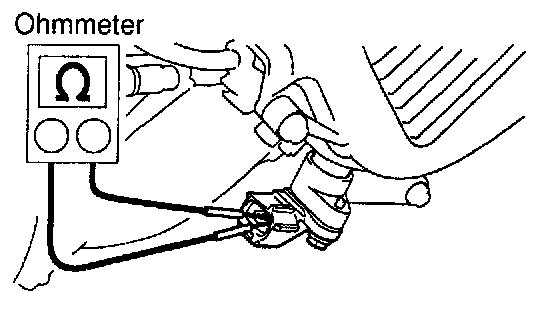

b. Using an ohmmeter, measure the resistance between terminals.

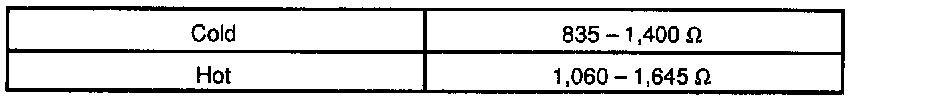

Resistance:

If the resistance is not as specified, replace the sensor.

c. Reconnect the camshaft position sensor connector.
