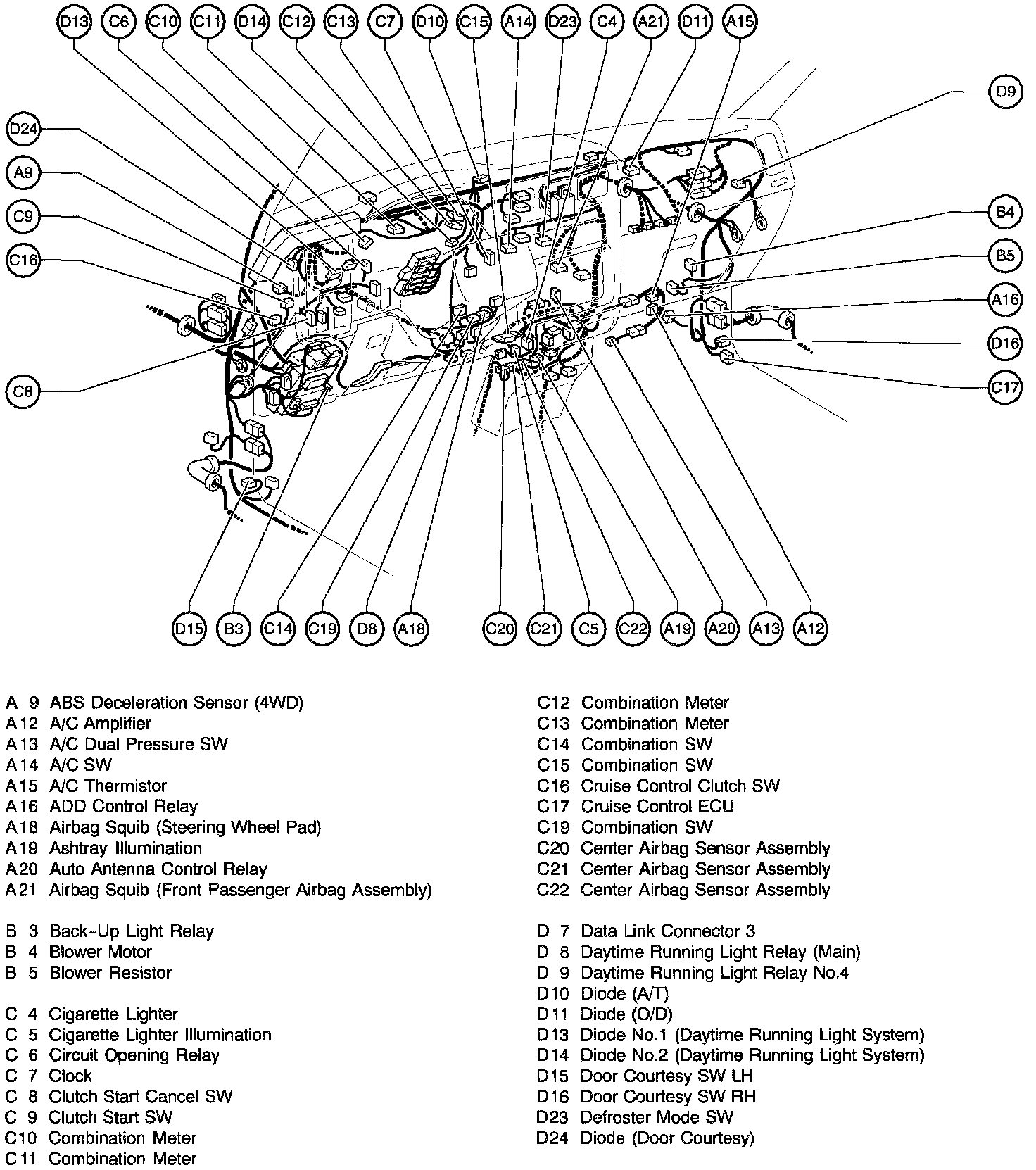

Instrument Panel and Center Console

A 9 ABS Deceleration Sensor (4WD)
A12 A/C Amplifier
A13 A/C Dual Pressure SW
A14 A/C SW
A15 A/C Thermistor
A16 ADD control Relay
A18 Airbag Squib (Steering Wheel Pad)
A19 Ashtray Illumination
A20 Auto Antenna Control Relay
A21 Airbag Squib (Front Passenger Airbag Assembly)

B 3 Back-Up Light Relay
B 4 Blower Motor
B 5 Blower Resistor

C 4 Cigarette Lighter
C 5 Cigarette Lighter Illumination
C 6 Circuit Opening Relay
C 7 Clock
C 8 Clutch Start Cancel SW
C 9 Clutch Start SW
C10 Combination Meter
C11 Combination Meter
C12 Combination Meter
C13 Combination Meter
C14 Combination SW
C15 Combination SW
C16 Cruise Control Clutch SW
C17 Cruise Control ECU
C19 Combination SW
C20 Center Airbag Sensor Assembly
C21 Center Airbag Sensor Assembly
C22 Center Airbag Sensor Assembly

D 7 Data Link Connector 3
D 8 Daytime Running Light Relay (Main)
D 9 Daytime Running Light Relay No.4
D10 Diode (A/T)
D11 Diode (O/D)
D13 Diode No.1 (Daytime Running Light System)
D14 Diode No.2 (Daytime Running Light System)
D15 Door Courtesy SW LH
D16 Door Courtesy SW RH
D23 Defroster Mode SW
D24 Diode (Door Courtesy)

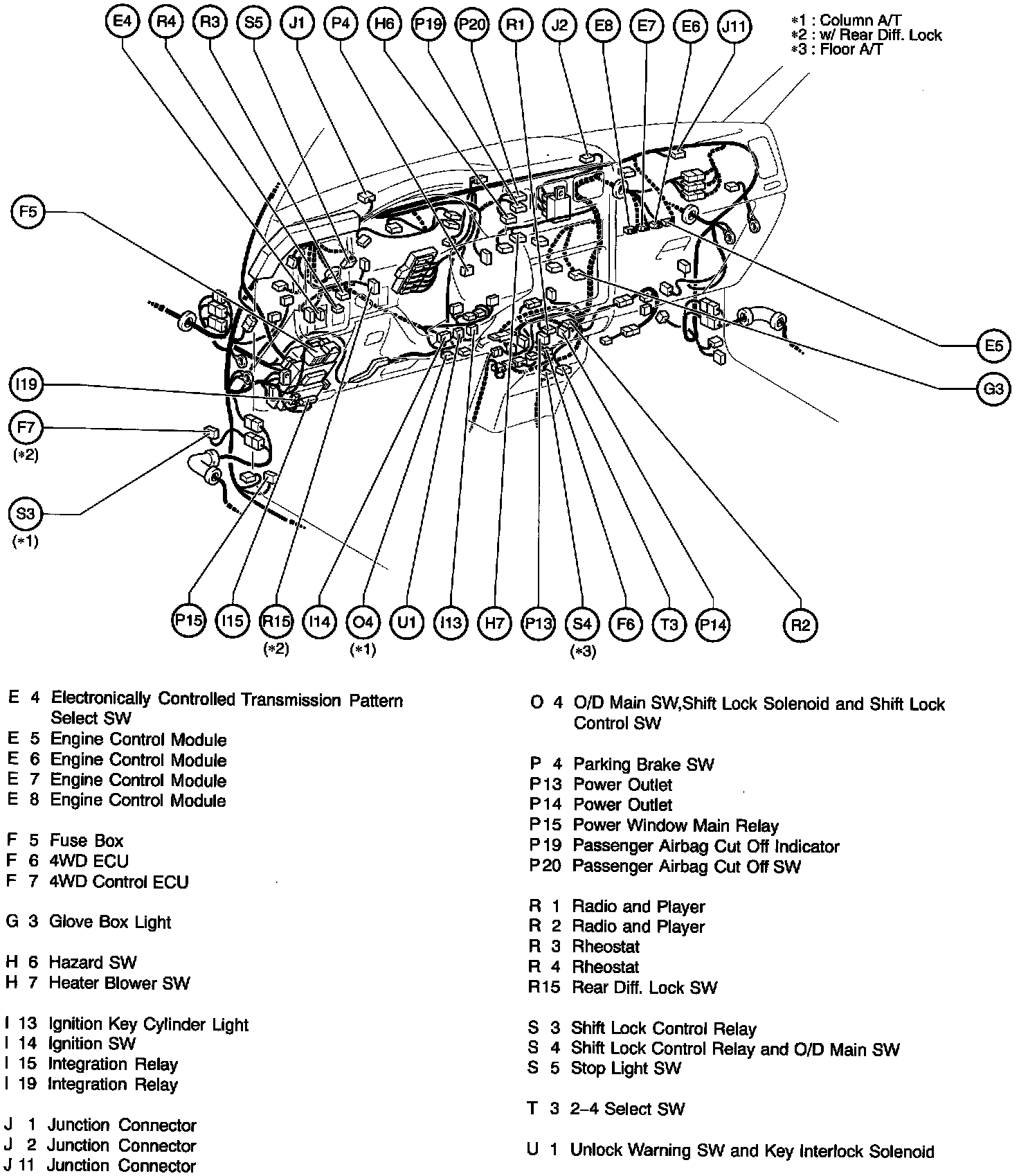

E 4 Electronically Controlled Transmission Pattern Select SW
E 5 Engine Control Module
E 6 Engine Control Module
E 7 Engine Control Module
E 8 Engine Control Module

F 5 Fuse Box
F 6 4WD ECU
F 7 4WD Control ECU

G 3 Glove Box Light

H 6 Hazard SW
H 7 Heater Blower SW

I13 Ignition Key Cylinder Light
I14 Ignition SW
I15 Integration Relay
I19 Integration Relay

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector

O 4 O/D Main SW, Shift Lock Solenoid and Shift Lock Control SW

P 4 Parking Brake SW
P13 Power Outlet
P14 Power Outlet
P15 Power Window Main Relay
P19 Passenger Airbag Cut Off Indicator
P20 Passenger Airbag Cut Off SW

R 1 Radio and Player
R 2 Radio and Player
R 3 Rheostat
R 4 Rheostat
R15 Rear Diff Lock SW

S 3 Shift Lock Control Relay
S 4 Shift Lock Control Relay and O/D Main SW
S 5 Stop Light SW

T 3 2-4 Select SW

U 1 Unlock Warning SW and Key Interlock Solenoid
