Air Conditioning Control

DISASSEMBLY

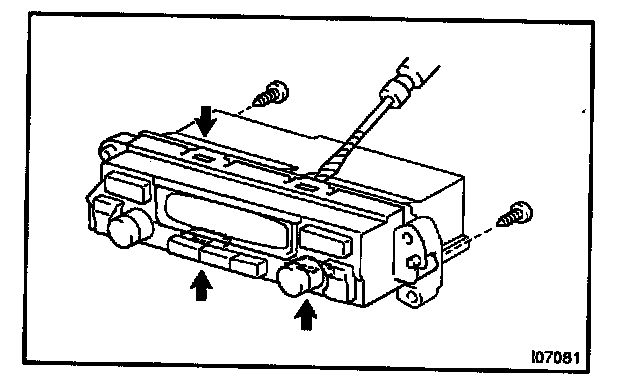

1. REMOVE A/C CONTROL PANEL
a. Remove the 2 screws.
b. Using a screwdriver, release the 4 claws.

HINT: Tape the screwdriver tip before use.

c. Unlock the connector's lock and pull out the flat harness from the A/C control panel.




2. REMOVE A/C AMPLIFIER
a. Release the 4 claws and remove the holder.
b. Hold the connector of amplifier and pull out the amplifier.

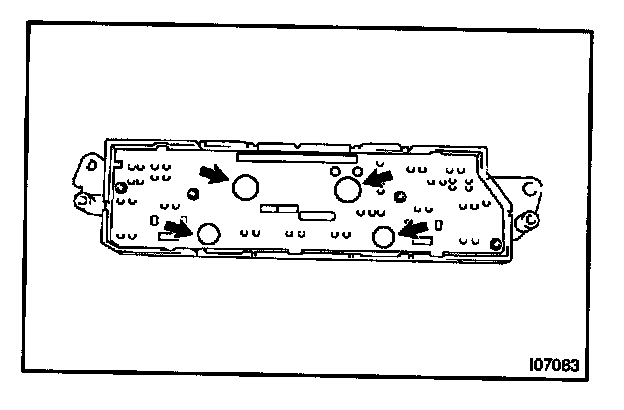

3. REMOVE BULB
Using a screwdriver, turn the bulb to the left and pull out the bulb.

REASSEMBLY




1. INSTALL BULB
a. Install the bulb to the A/C control panel.
b. Using a screwdriver, turn the bulb to the right and lock the bulb

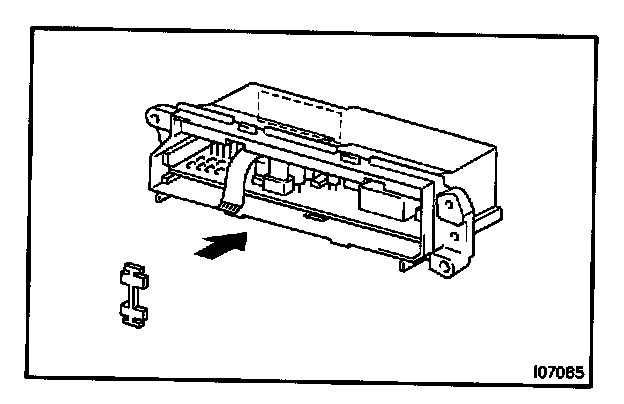

2. INSTALL A/C AMPLIFIER
a. Hold the connector of supply parts amplifier and pull out the amplifier from electrostatic prevention bag.




b. Hold the connector of amplifier and insert the amplifier to the A/C control panel case.
c. Install the holder.
d. Check the fitting for connector of amplifier.

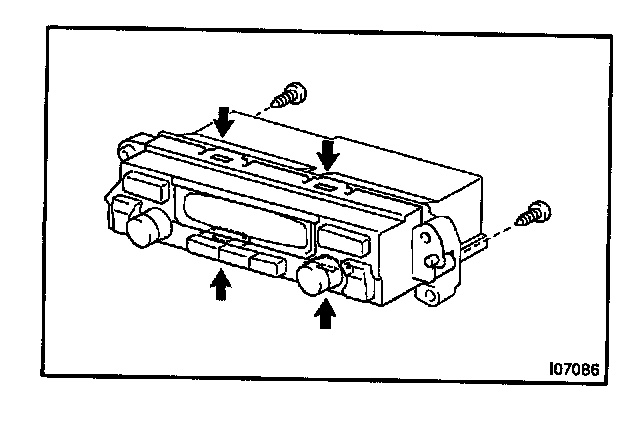

3. INSTALL A/C CONTROL PANEL
a. Unlock the connector's lock and push into the flat cable.
b. Install the A/C control panel.
c. Check the fitting for 4 claws.
d. Install the 2 screws.
