Component Tests

CIRCUIT DESCRIPTION
The O/D main switch is a momentary type switch. When pressing the O/D OFF main switch, the O/D OFF indicator light lights up and ECM prohibit shifting to O/D, and when pressing it again, the O/D OFF indicator light goes off and ECM allows shifting to O/D. Turning the IG switch OFF will reset the O/D OFF indicator light.

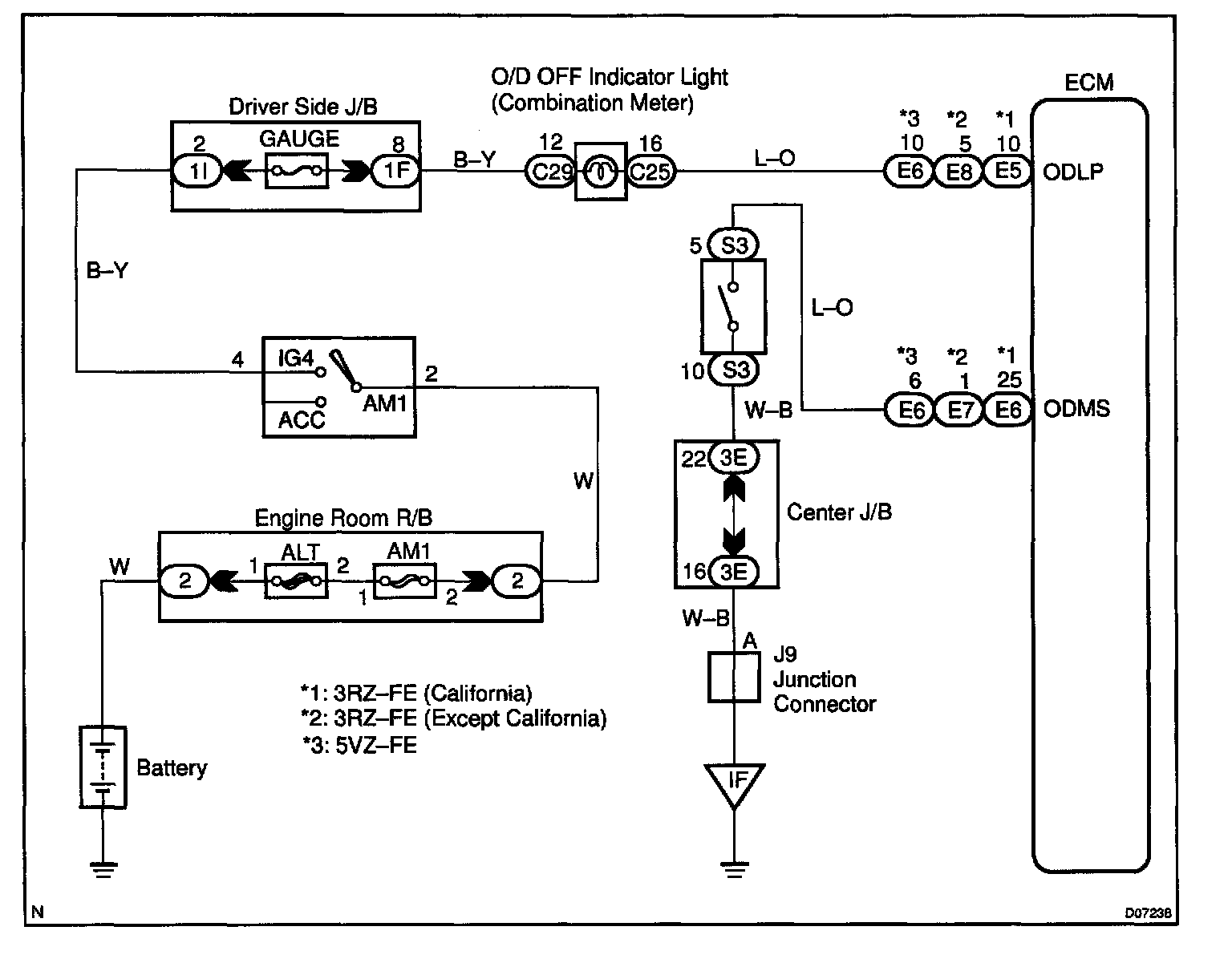

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

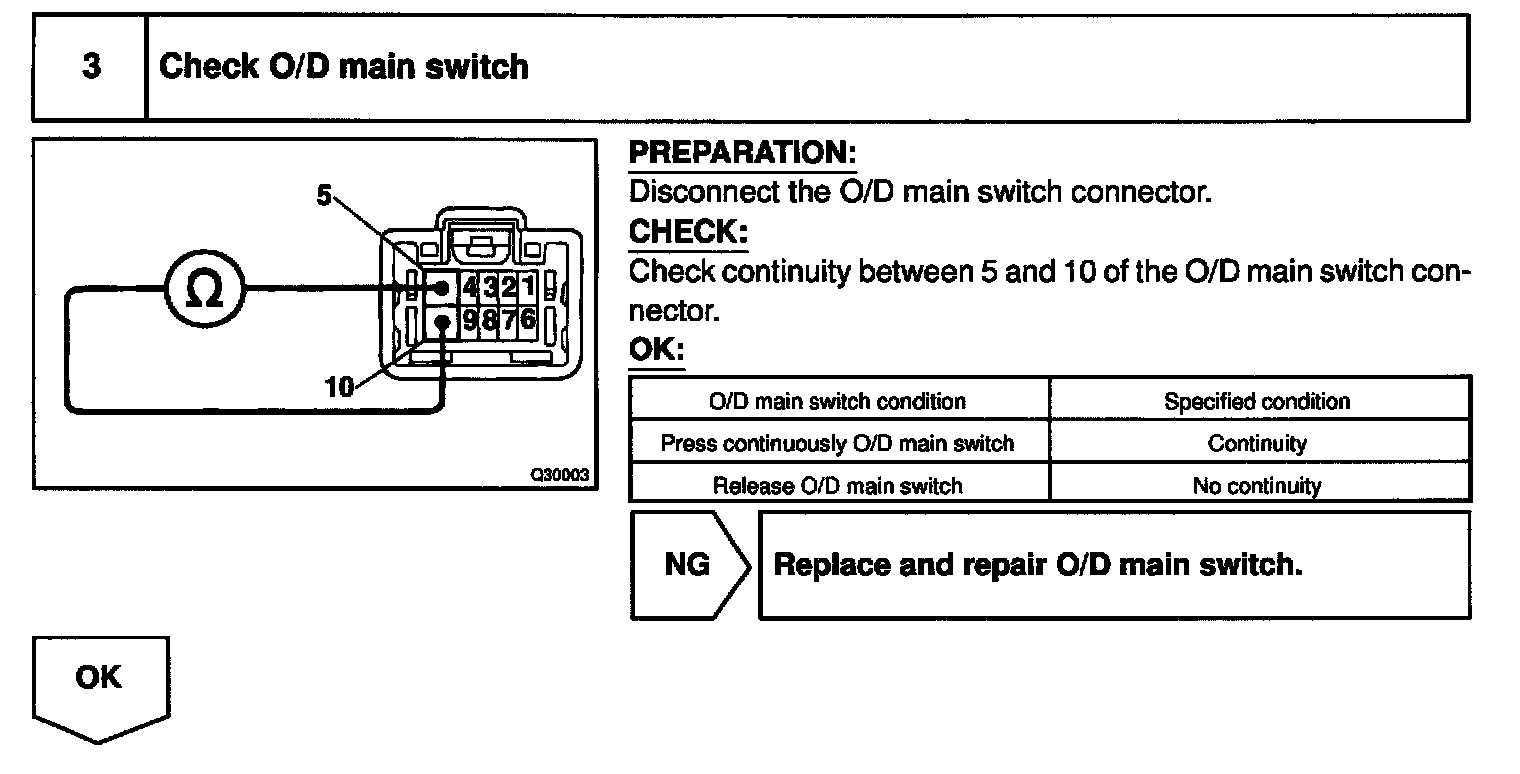

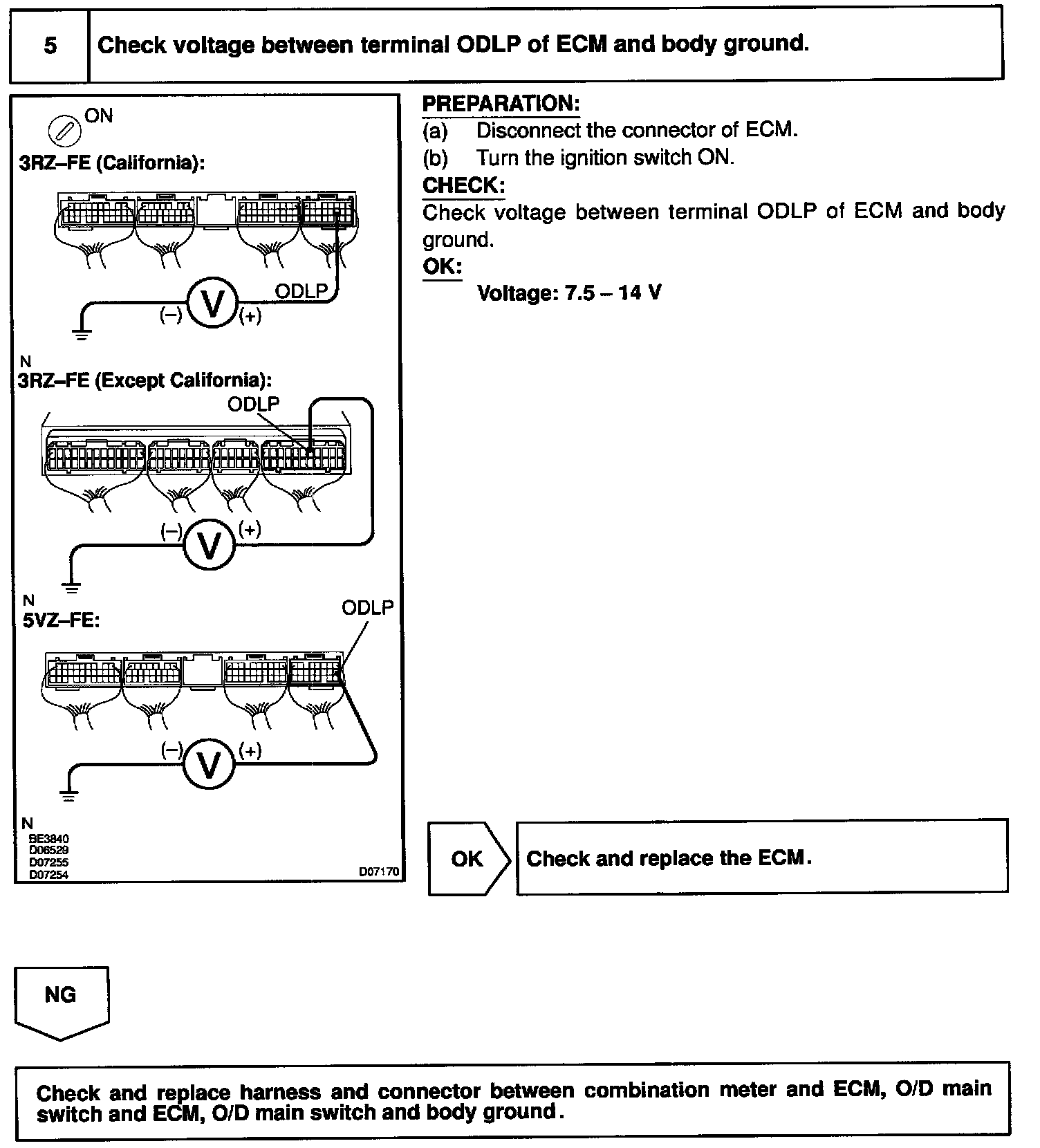

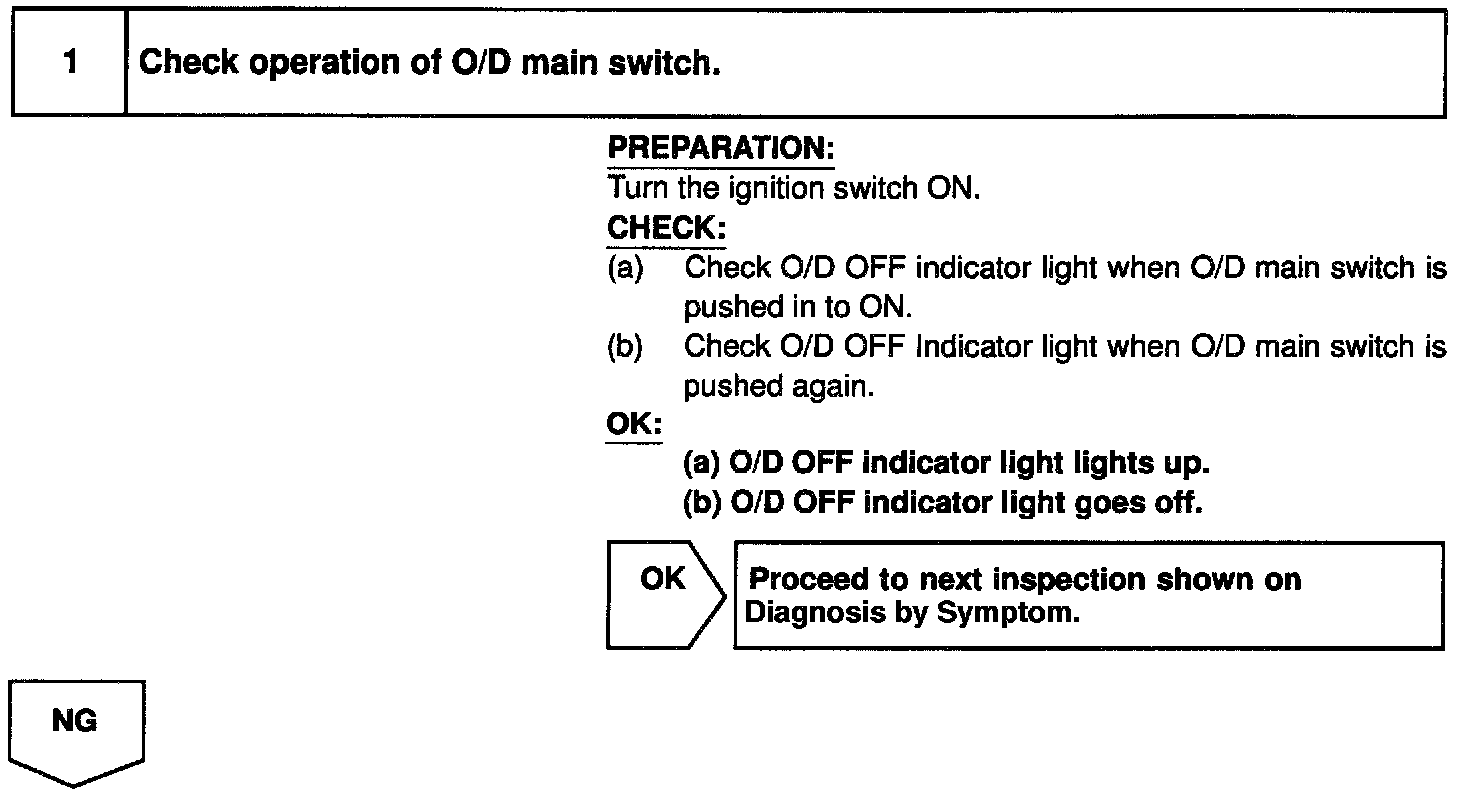

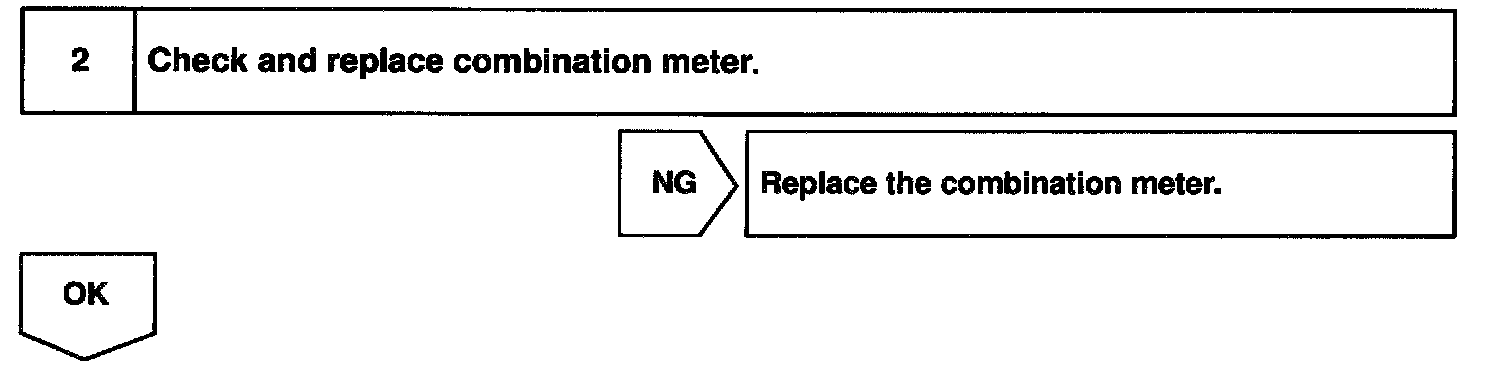

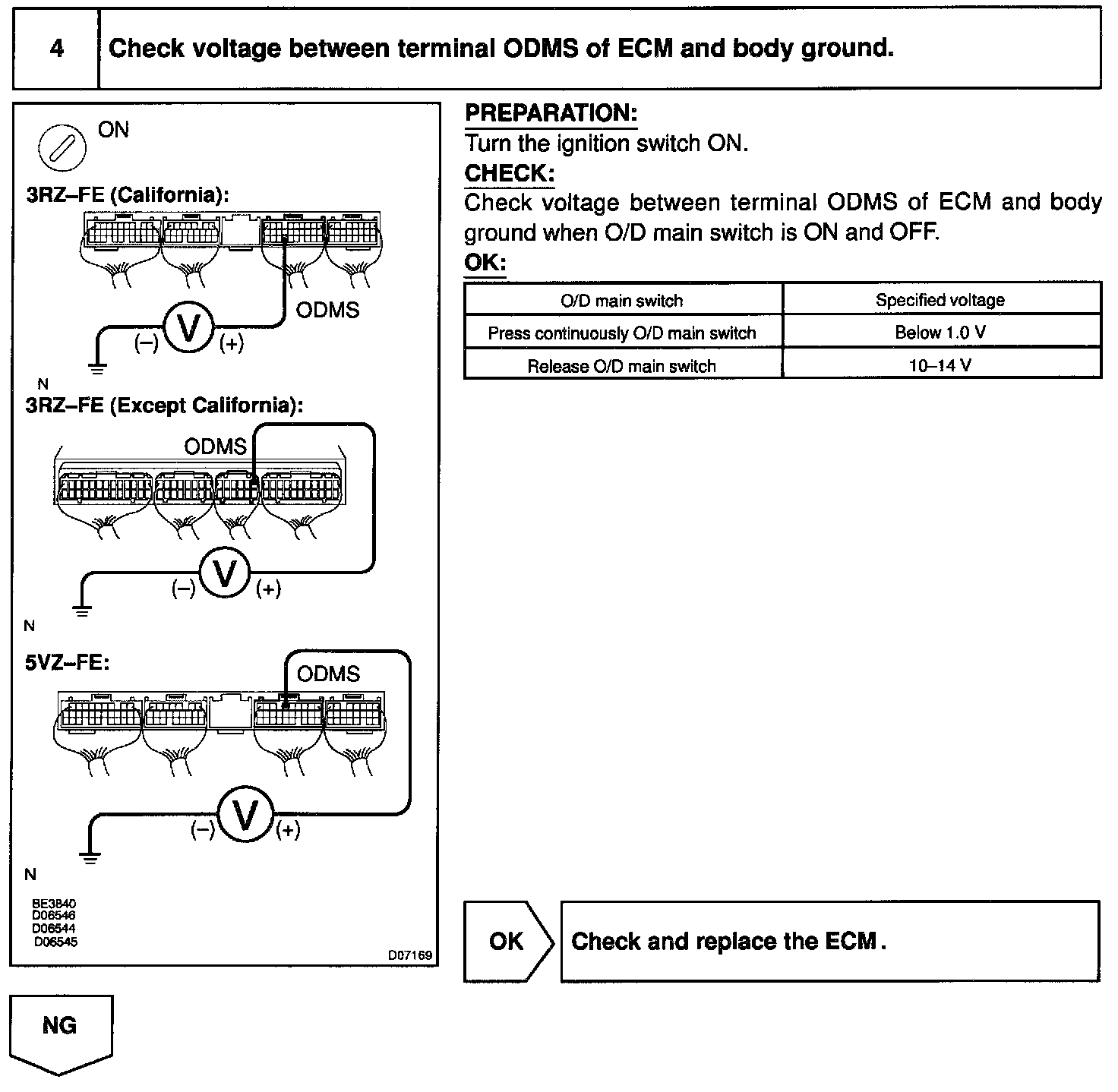

INSPECTION PROCEDURE
