Power Window Motor: Testing and Inspection

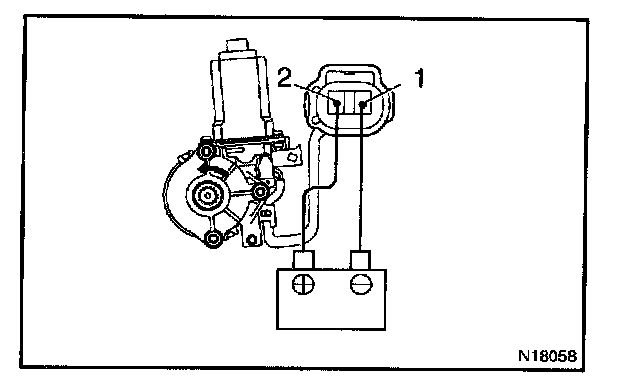

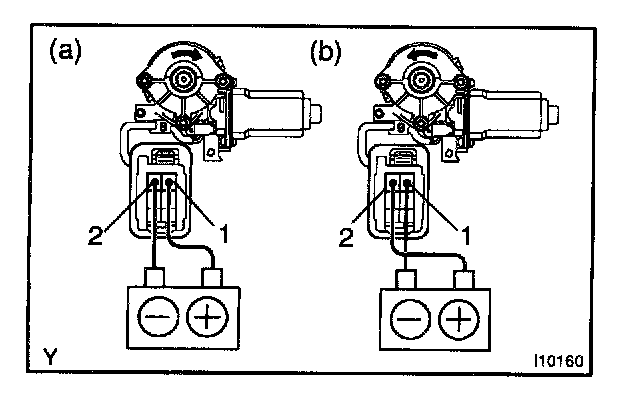

INSPECT DRIVER'S DOOR POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns clockwise.

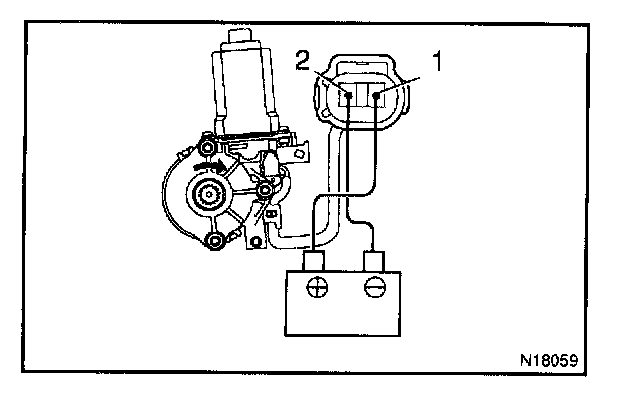

b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

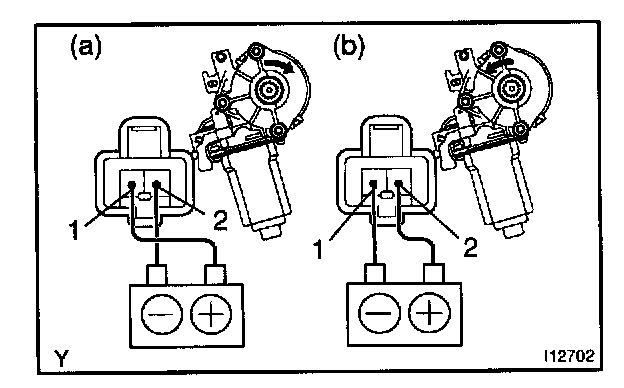

INSPECT FRONT PASSENGER'S DOOR POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns clockwise.
b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

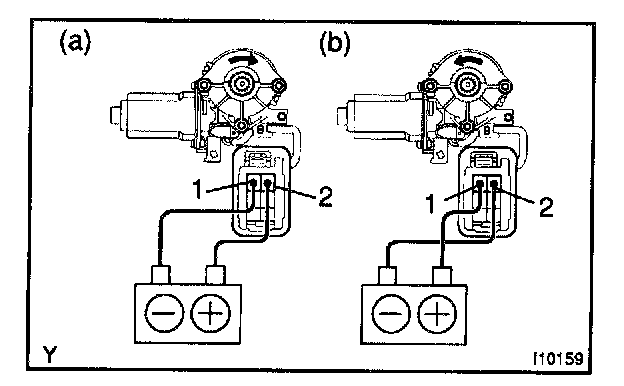

INSPECT REAR LEFT SIDE DOOR POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns clockwise.
b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

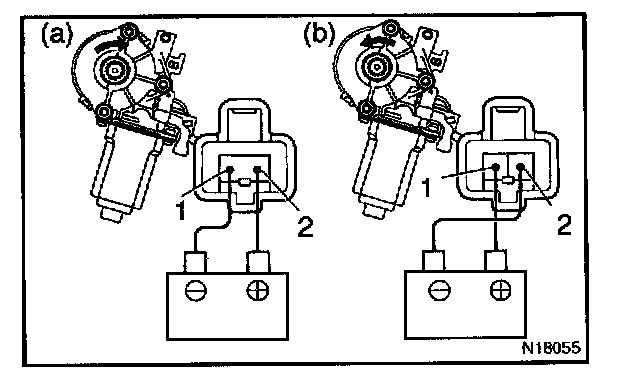

INSPECT REAR RIGHT SIDE DOOR POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

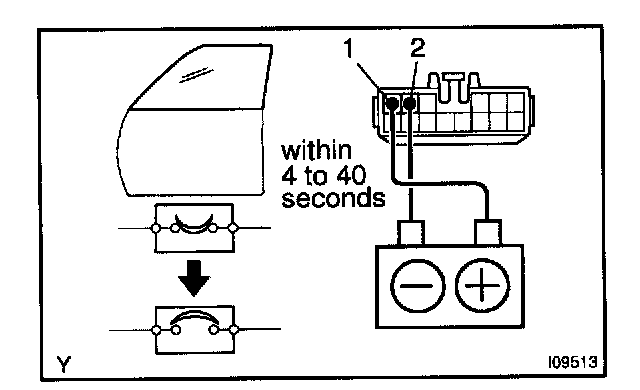

INSPECT DRIVER'S DOOR POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION




a. Disconnect the connector from the master switch.
b. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2 on the wire harness side connector and raise the window to full closed position.
c. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds.




d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.

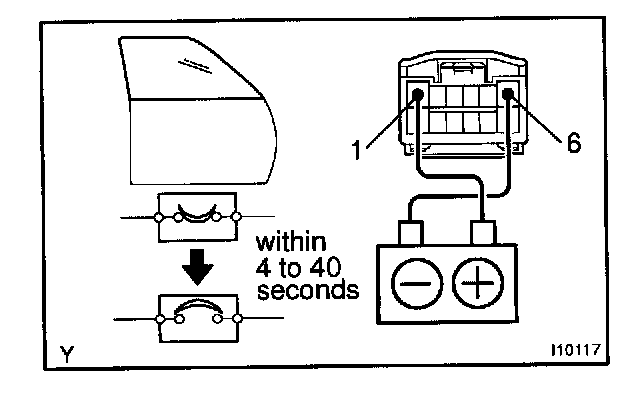

INSPECT FRONT PASSENGER'S DOOR POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION




a. Disconnect the connector from the power window switch.
b. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 1 on the wire harness side connector, and raise the window to full closed position.
c. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds.

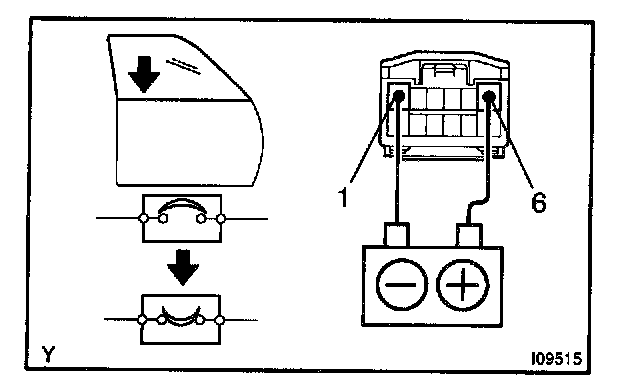

d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.

INSPECT REAR LEFT SIDE DOOR POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION

INSPECT REAR RIGHT SIDE POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION


INSPECT BACK DOOR POWER WINDOW MOTOR OPERATION




a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1 and check that the motor turns clockwise.




b. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2 and check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
