Air Flow Meter/Sensor: Service and Repair
MASS AIR FLOW (MAF) METERREMOVAL
1. REMOVE AIR CLEANER CASE
a. Disconnect the air cleaner hose.
b. Disconnect the MAF meter connector.
c. Remove the 3 bolts and air cleaner case.

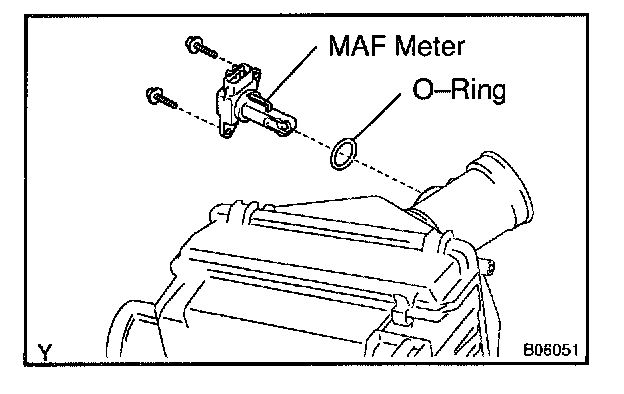

2. REMOVE MAF METER
a. Remove the 2 screws and MAF meter.

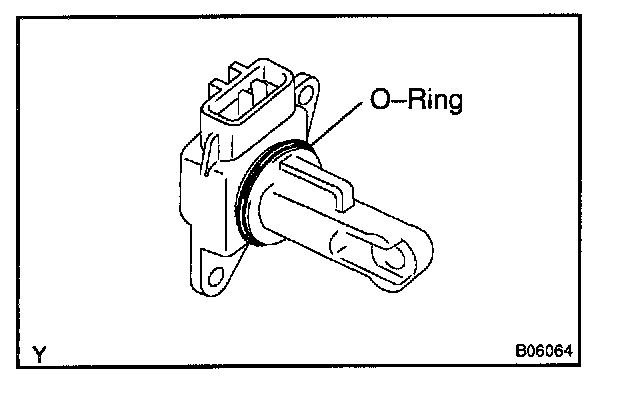

b. Remove the O-ring from the MAF meter.
INSTALLATION
1. INSTALL MAF METER
a. Install the O-ring to the MAF meter.
b. Install the MAF meter with the 2 screws.
2. INSTALL AIR CLEANER CASE
a. Install the air cleaner case with the 3 bolts.
b. Connect the MAF meter connector.
c. Connect the air cleaner hose
