Pinout Values and Diagnostic Parameters

Using TOYOTA break-out-box and TOYOTA hand-held-tester, measure the ECU terminal values.

1. Hook up the TOYOTA hand-held tester and TOYOTA break-out-box to the vehicle.
2. Read the ECU input/output values by following the prompts on the tester screen.

HINT:
- TOYOTA hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.
Please refer to the TOYOTA hand-held tester/TOYOTA break-out-box operator's manual for further details.

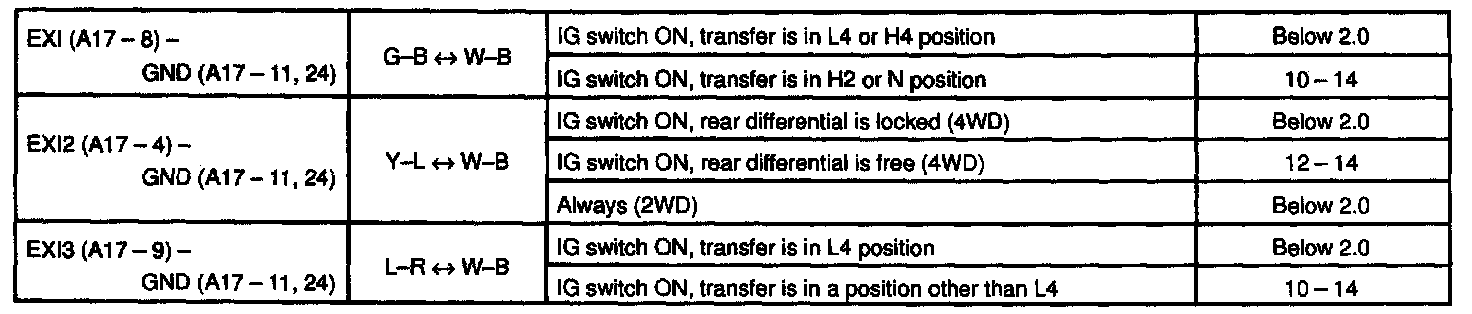

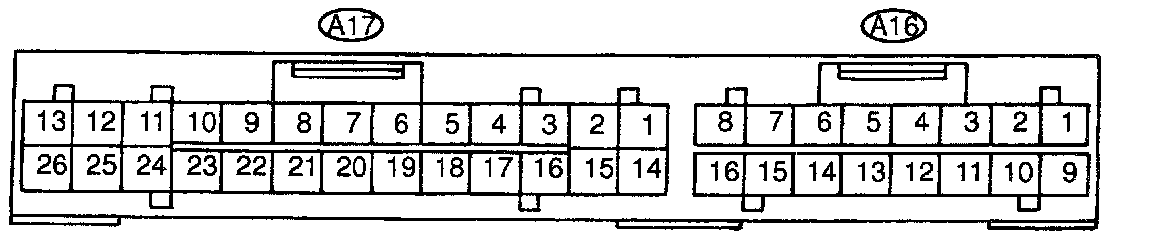

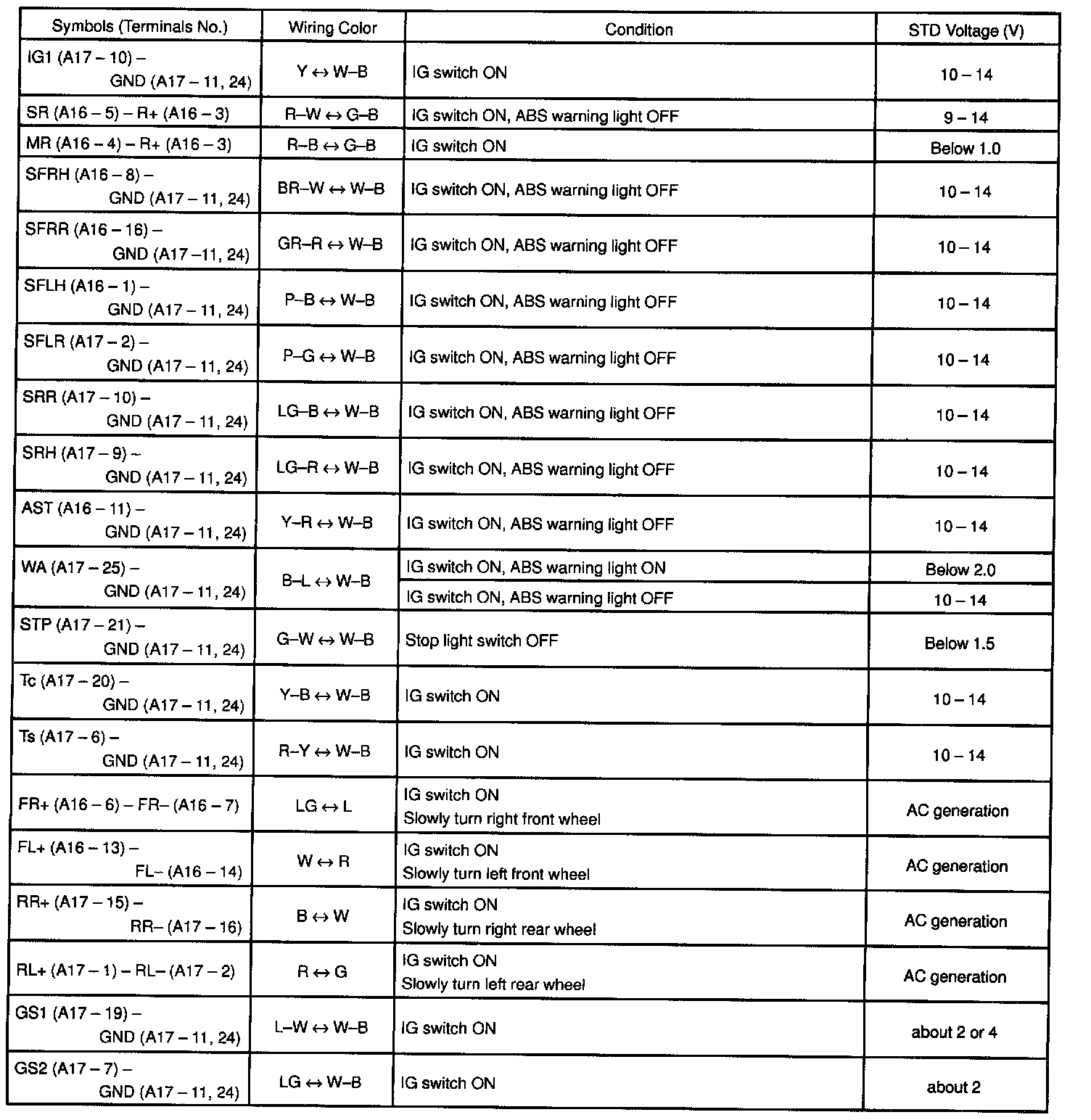

TERMINALS OF ECU
