Body Structure

Lightweight and Highly Rigid Body

Description

The body of the new AVALON has been made lightweight and highly rigid through the refinement of the shape and construction of each part, optimized allocation of reinforcements and members, and use of high strength sheet steel.

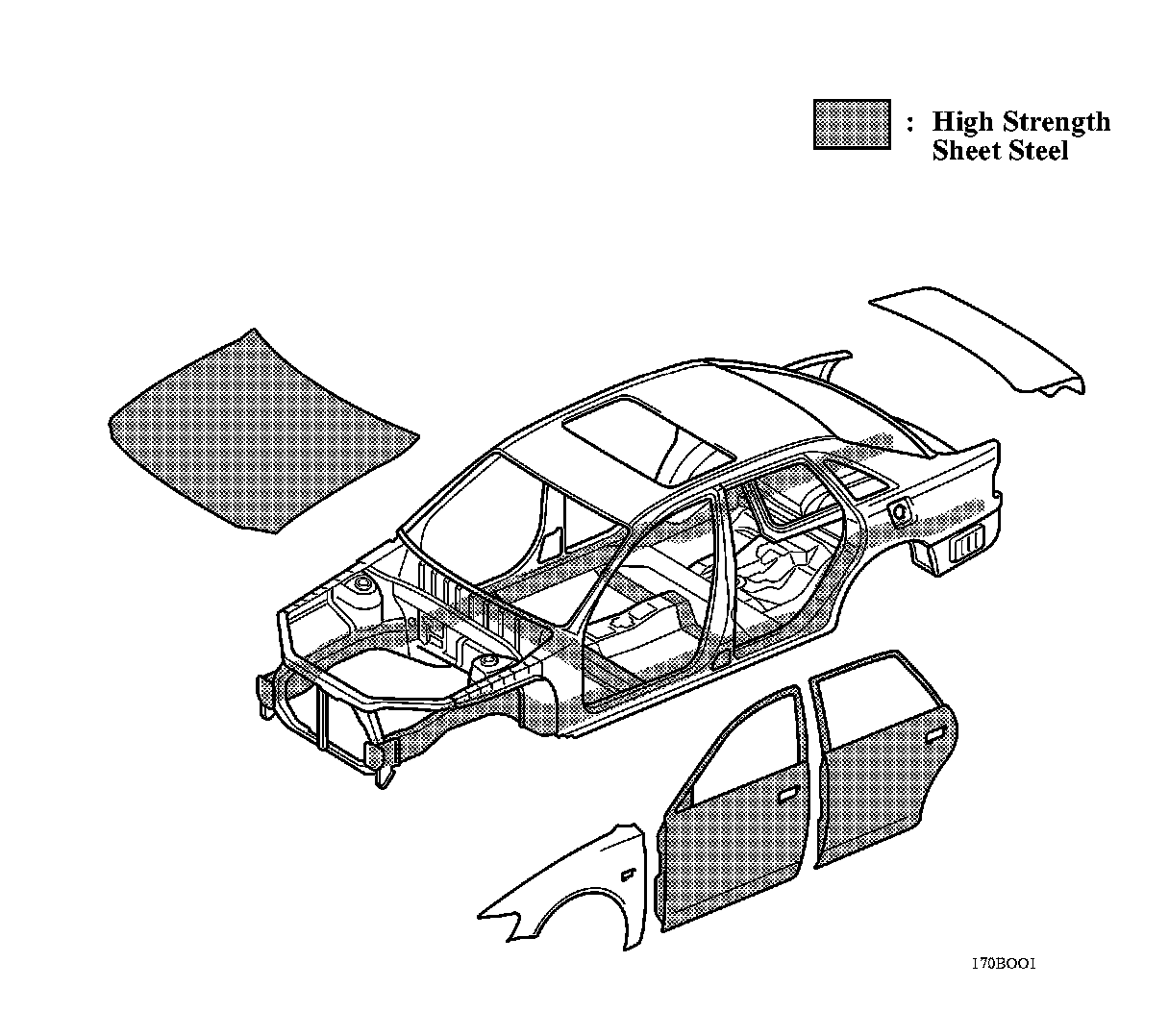

High Strength Sheet Steel





High strength sheet steel is used for the hood, door panels and members.

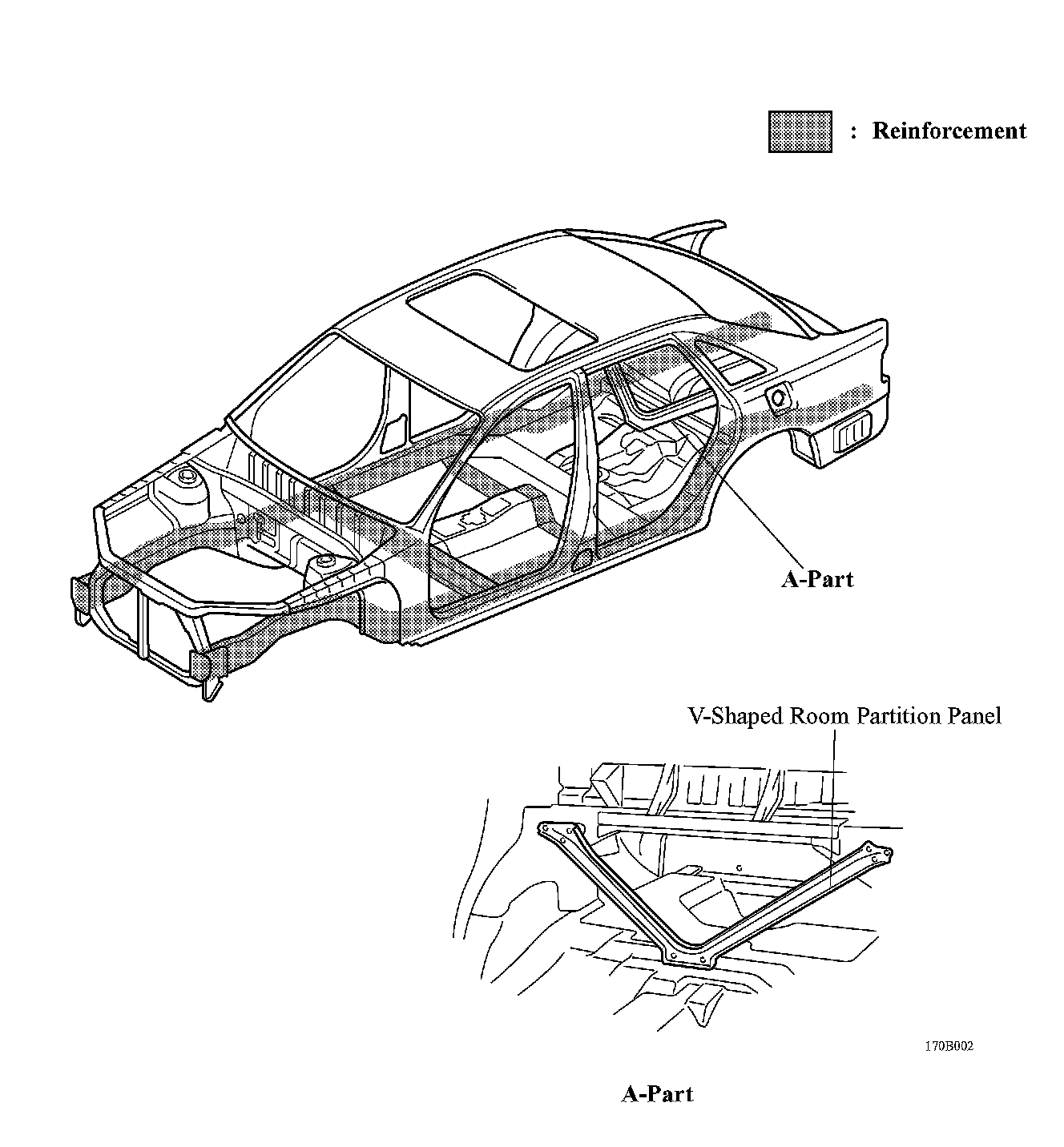

Body Shell





The body of the new AVALON is made highly rigid through the optimization of the location of reinforcements and use of V-shaped room partition panel.
