Normal Scan Data Values

ENGINE OPERATING CONDITION

NOTE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies differ from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

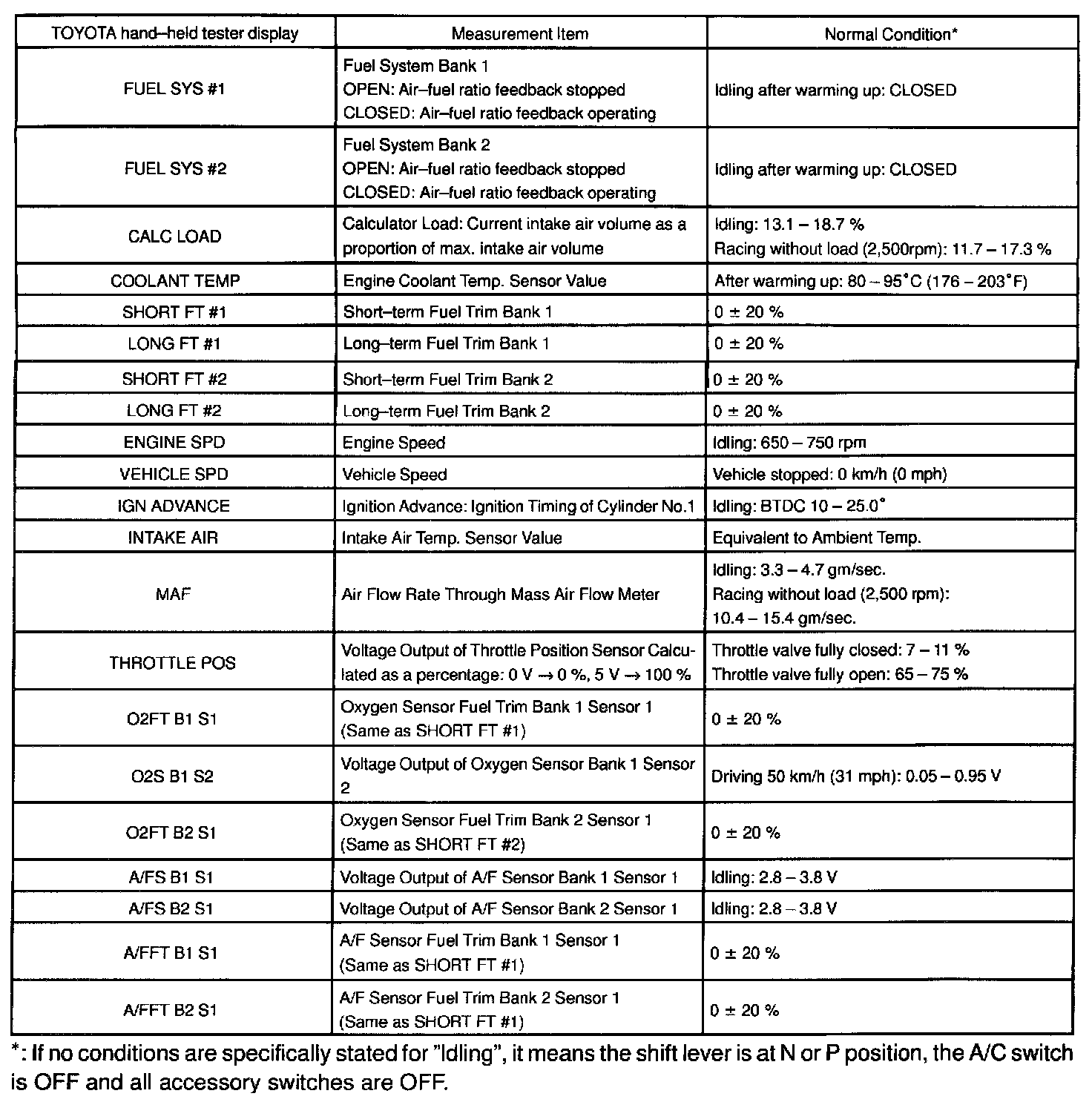

a. CARB mandated signals.

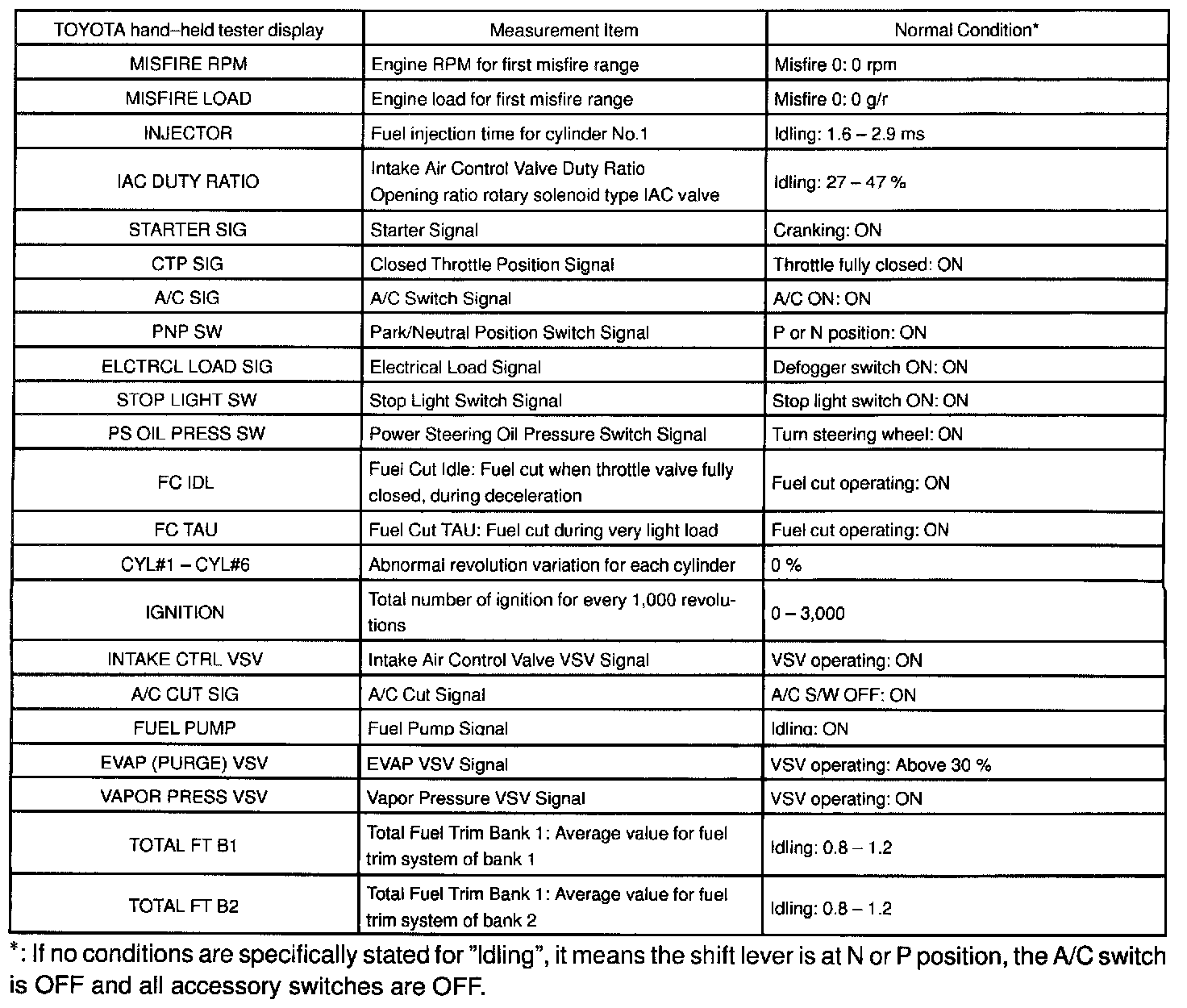

b. TOYOTA enhanced Signals.
