Speed Sensor Signal Check (Test Mode)

Using TOYOTA hand-held tester, check the DTC
1. When the ignition switch is turned ON, check that the ABS warning light goes on for 2 seconds.
2. Turn the ignition switch OFF.

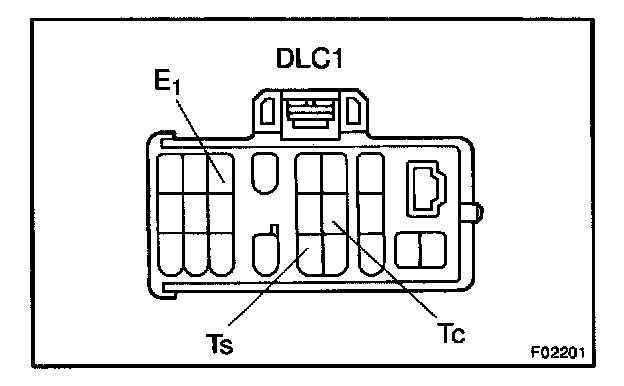

3. Using SST: connect terminals Ts and E1 of DLC1.
SST 09843-18020
4. Start the engine.

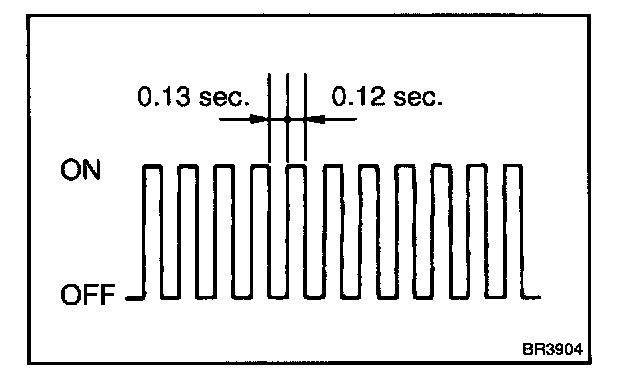

5. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit.

6. Drive vehicle straight forward.

HINT: Drive vehicle at 45 - 55 kPh (28 - 34 mph) for several seconds.
If the brake is applied during the check, the check routine must be started again.

7. Hook up the TOYOTA hand-held tester to the DLC2.




8. Read the DTC by following the prompts on the tester screen
Please refer to the TOYOTA hand-held tester operator's manual for further details.

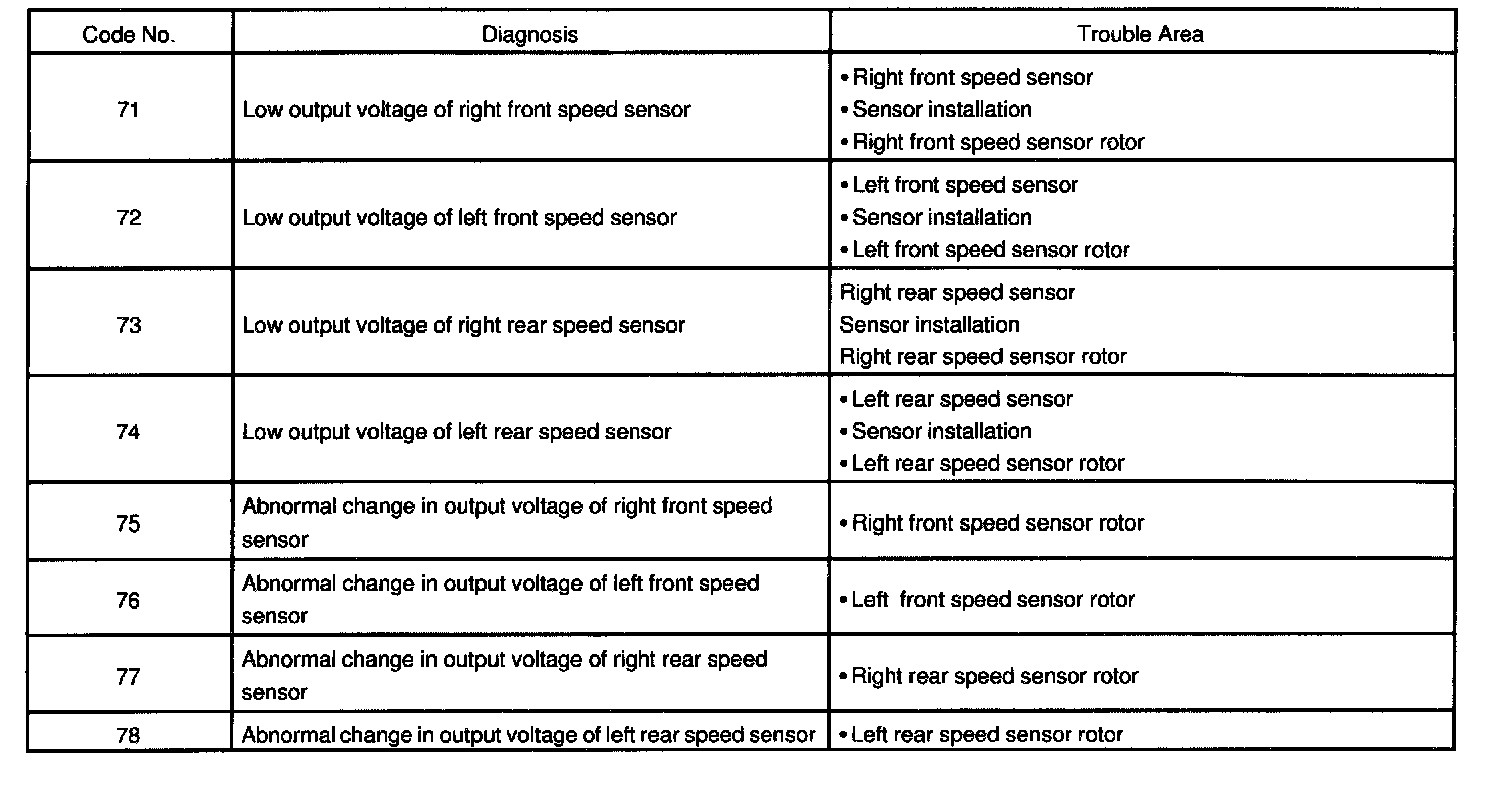

DTC of speed sensor check function
* Note Toyota doesn't offer diagnostic charts for these codes and only refers to trouble area.
