Speed Sensor Signal Check (Test Mode)

Using TOYOTA hand-held tester, check the DTC.
1. Turn the ignition switch OFF.





2. Using SST, connect terminals Ts and E1 of DLC1.
SST 09843-18020
3. Start the engine.

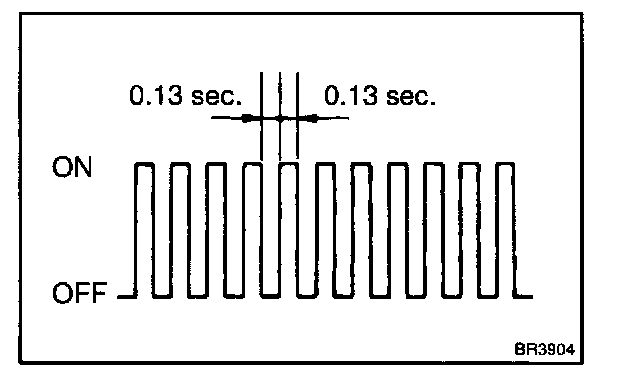

4. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit.

5. Drive vehicle straight forward.

HINT: Drive vehicle faster than 45 kPh (28 mph) for several seconds.

6. Stop the vehicle.

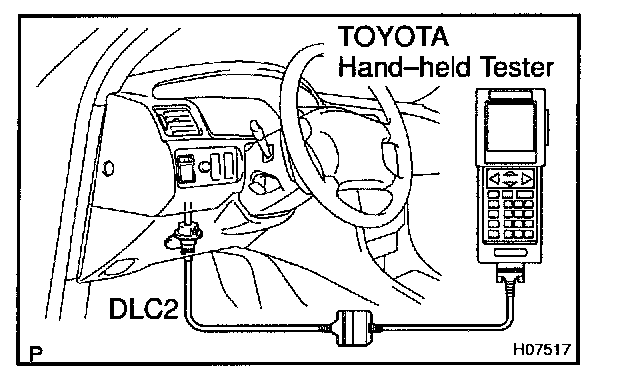

7. Hook up the TOYOTA hand-held tester to the DLC2.
8. Read the DTC by following the prompts on the tester screen.
Please refer to the TOYOTA hand-held tester operator's manual for further details.

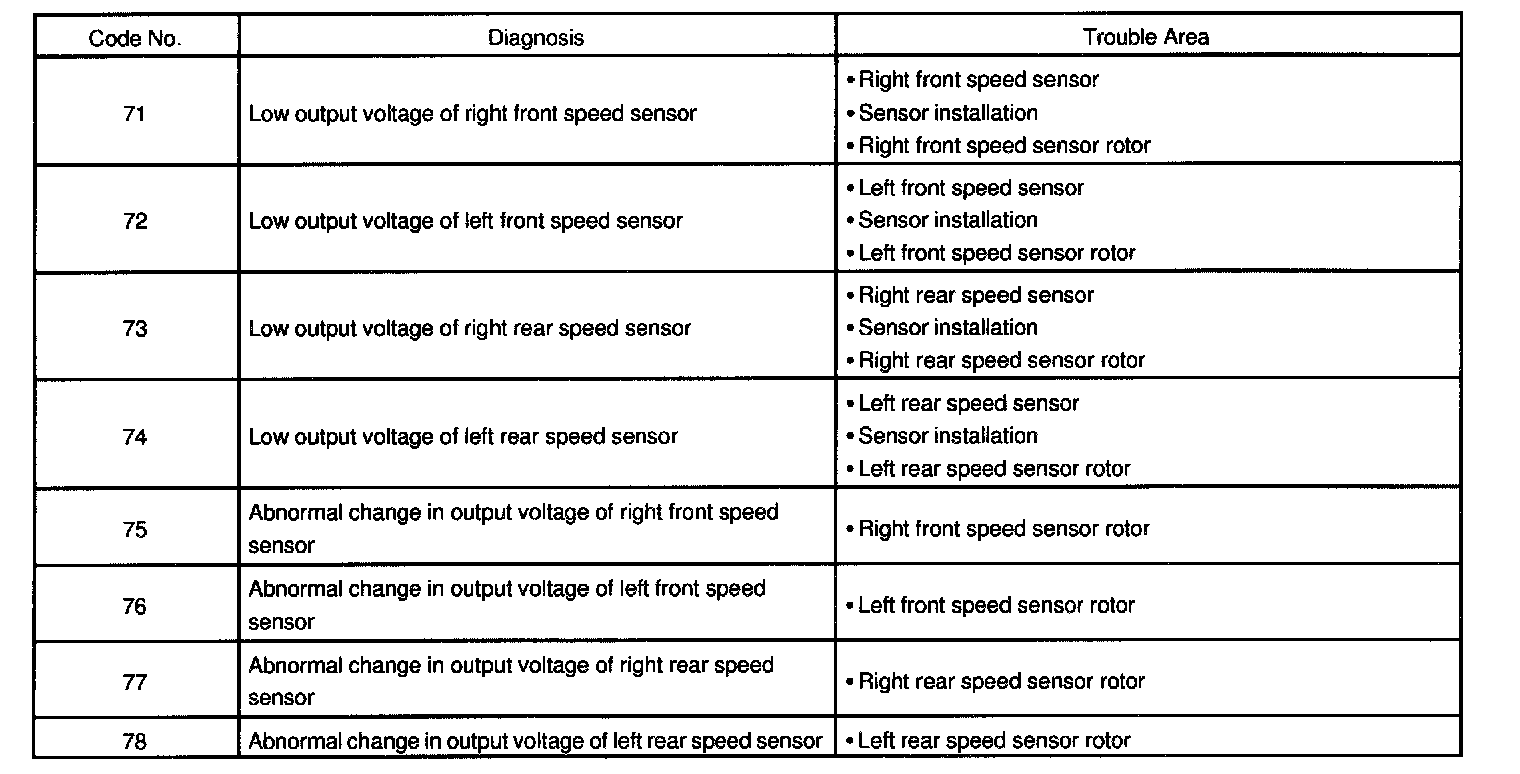

DTC of speed sensor check function
* Note Toyota doesn't offer diagnostic charts for these codes and only refers to trouble area.
