Clutch Switch: Testing and Inspection

CIRCUIT DESCRIPTION

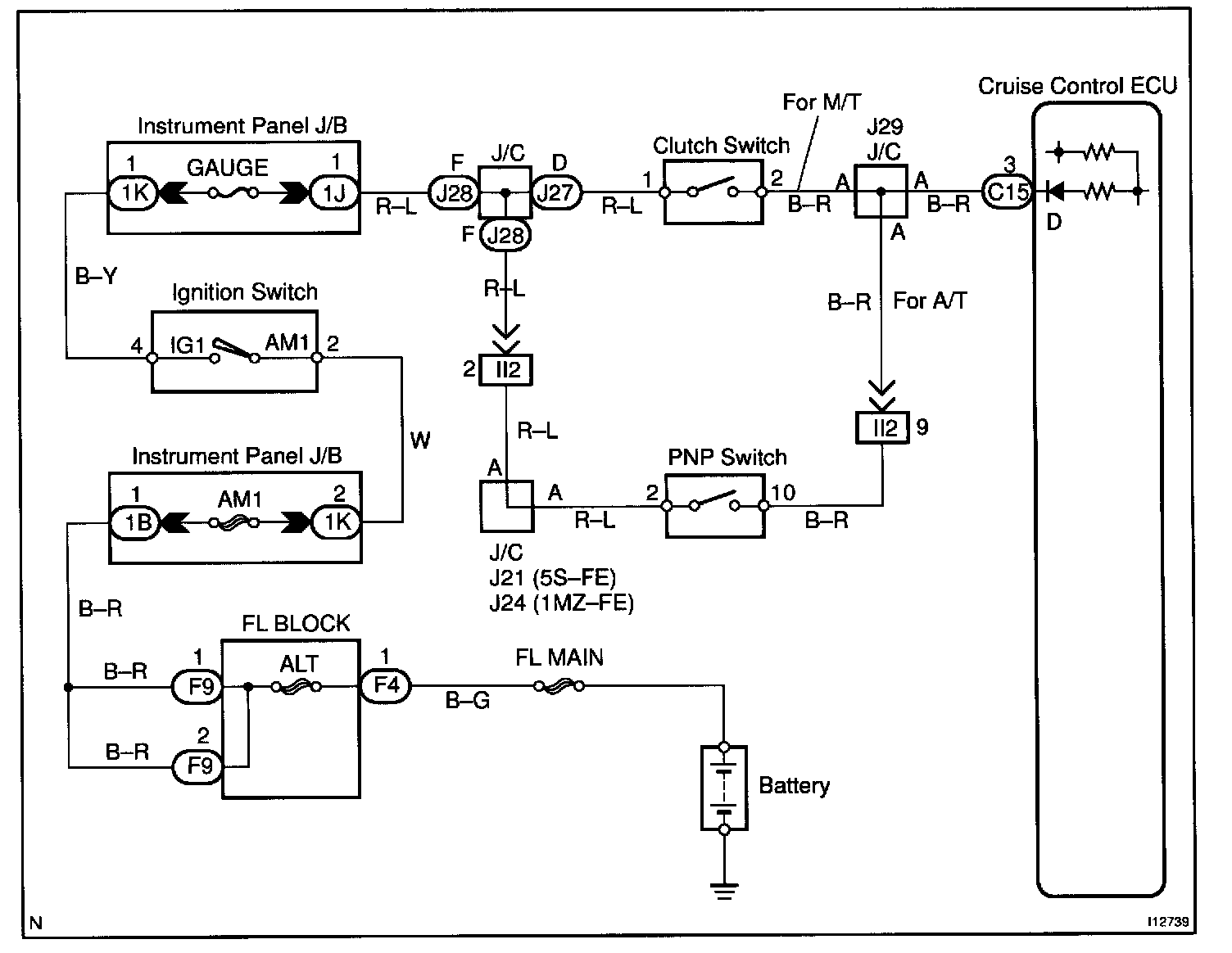

When the clutch pedal is depressed, the clutch switch sends a signal to the cruise control ECU. When the signal is input to the cruise control ECU during cruise control driving, the cruise control ECU cancels cruise control.
