Exhaust Gas Recirculation

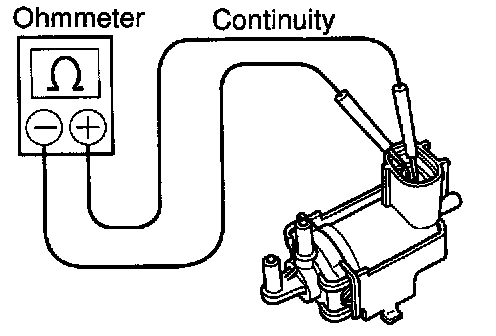

Using an ohmmeter, check that there is continuity between the terminals.
Resistance: 33 - 39 Ohms at 20° C (68° F) 2.2 L
If there is no continuity, replace the VSV.






Using an ohmmeter, check that there is continuity between the terminals.
Resistance: 27 - 33 Ohms at 20 °C (68 °F) 3.0 L
If there is no continuity, replace the VSV.
